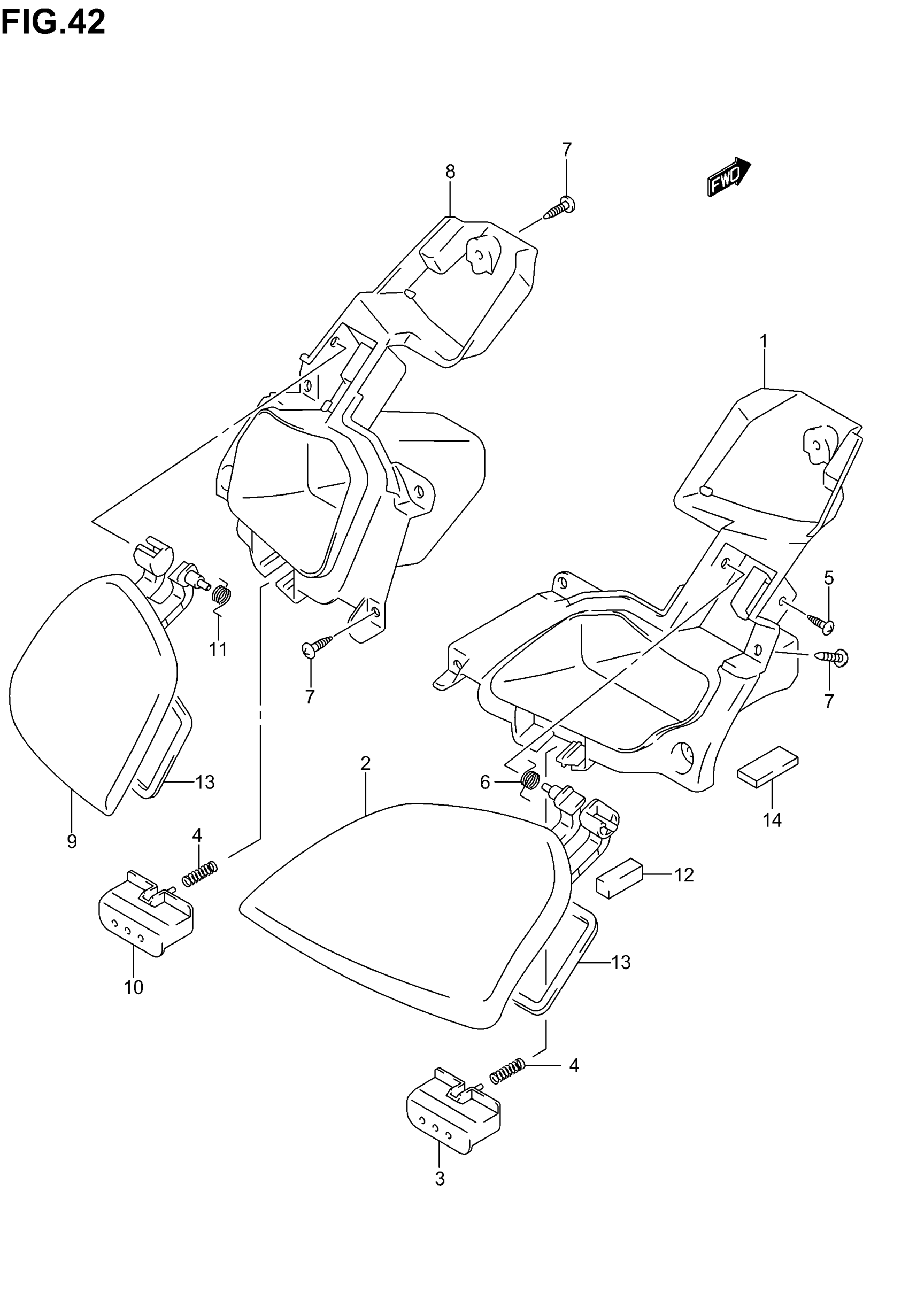

Suzuki AN400 (2006) FRONT PANEL BOX (MODEL K3) Diagram

#

Description
Price

1

BOX, PANEL RH (GRAY)

92141-14G01-Y0J

Unavailable

2

LID, PANEL RH (GRAY)

92142-14G01-Y0J

$25.33

3

LOCK, PANEL BOX RH (GRAY)

92143-14G00-Y0J

$12.35

4

SPRING This part replaces 92144-14G00.

92144-14G01

$5.47

5

SCREW (4x12) This part replaces 03541-04123.

03541-0412A

$1.49

6

SPRING, PANEL LID RH This part replaces 92145-14G00.

92145-14G01

$6.94

7

SCREW This part replaces 03541-05163.

03541-0516A

$1.49

8

BOX, FRONT PANEL LH (GRAY)

92151-14G01-Y0J

Unavailable

9

LID, PANEL LH (GRAY)

92152-14G01-Y0J

$25.33

10

LOCK, PANEL BOX LH (GRAY)

92153-14G00-Y0J

$12.82

11

SPRING, PANEL LID LH This part replaces 92155-14G00.

92155-14G01

$6.94

12

CUSHION This part replaces 92146-14G01.

92146-14G10

$5.67

13

CUSHION, BOX NO.2

92147-14G00

$5.98

14

CUSHION

33652-05G10

Unavailable
