2006 Suzuki AN400 Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2006 Suzuki AN400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

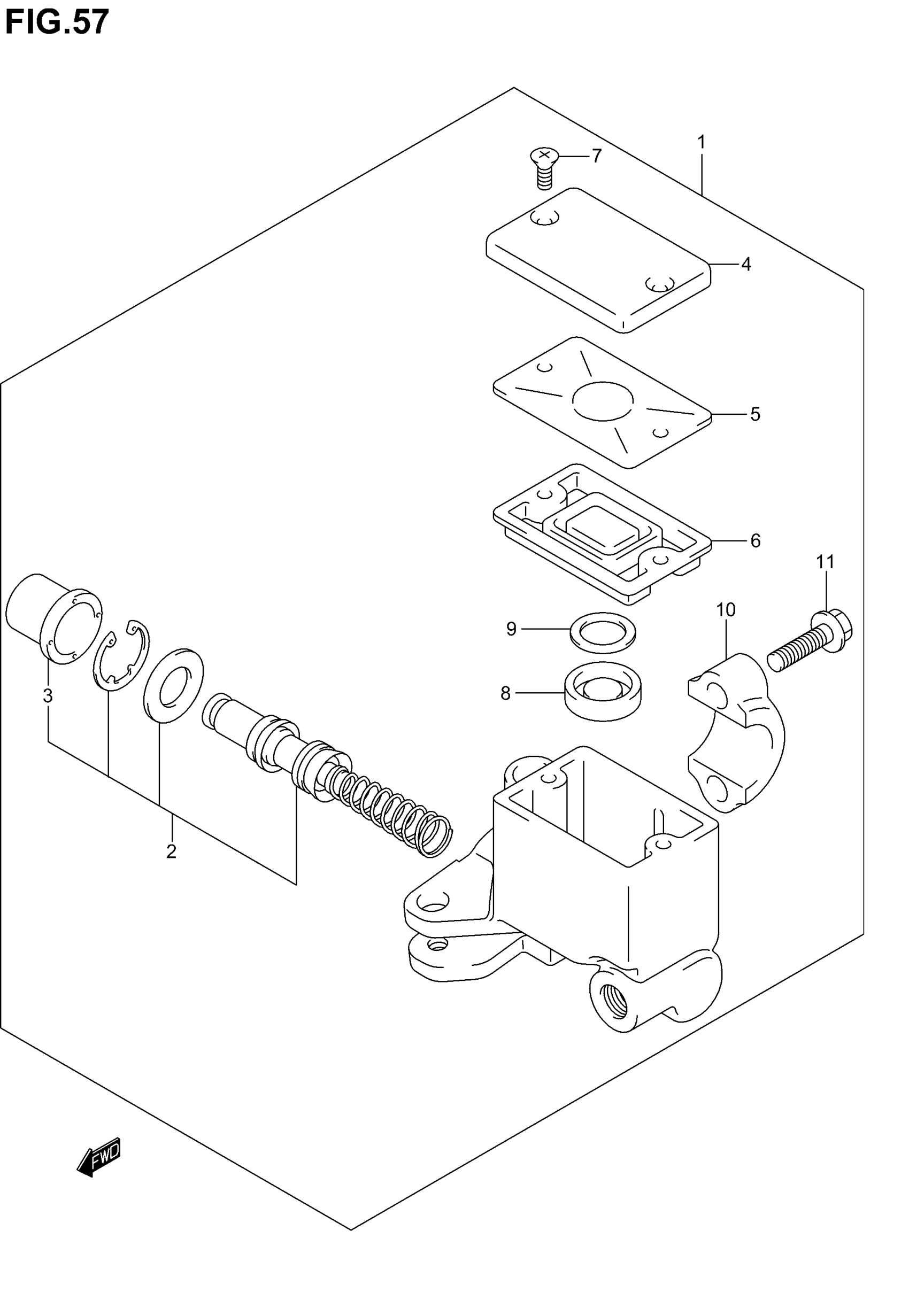

2006 Suzuki AN400 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY,F | Includes Item(s) 2 - 11 This part replaces 59600-14F30.

59600-14F31

1
Out of stock

2

.PISTON/CUP SET This part replaces 59600-03810.

59600-03820

1
Out of stock

3

BOOT

59666-44300

1
Out of stock

4

CAP

59669-14F10

1
Out of stock

5

.PLATE,DIAPHRAGM

59668-14F00

1
Out of stock

6

DIAPHRAGM

59667-04700

1
Out of stock

7

SCREW

69689-49300

2
Out of stock

8

SEPARATOR

59748-15400

1
Out of stock

9

PLATE

59749-15400

1
Out of stock

10

.HOLDER

59671-36500

1
Out of stock

11

BOLT (6X22)

59675-02FA0

2
Out of stock
