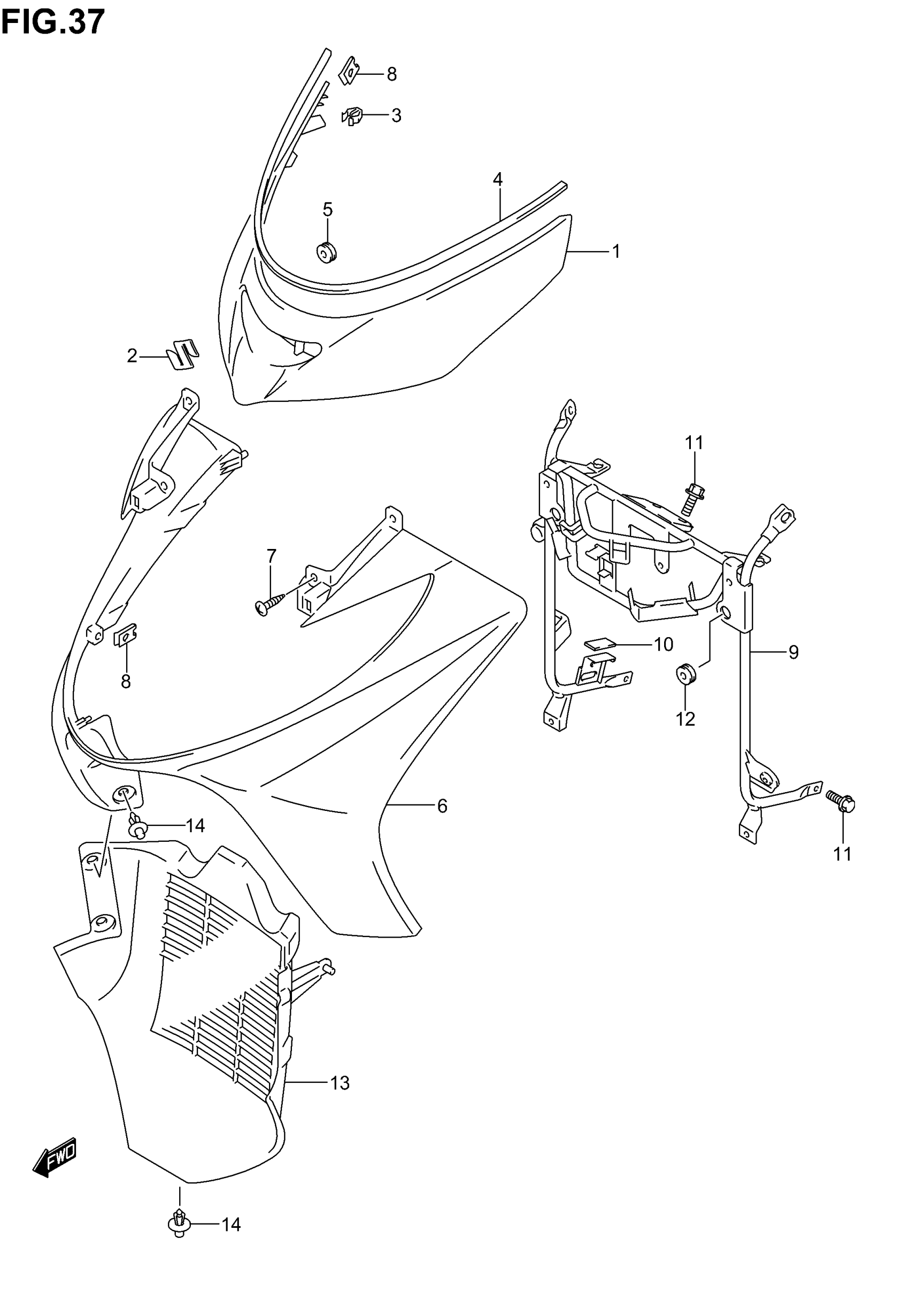

Suzuki AN400 (2006) FRONT LEG SHIELD (MODEL K3/K4) Diagram

#

Description
Price

1

COVER, FRONT LEG (BLACK) | MODEL K3

48131-14G00-Y7L

Unavailable

1

COVER, FRONT LEG (BLACK) | MODEL K4

48131-14G00-019

Unavailable

2

EMBLEM, "S"

68641-14F20

$40.33

3

CLIP

09409-08326

$2.48

4

MOLDING, COVER

48132-14G00

$12.55

5

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.10

6

SHIELD, LEG FRONT (SILVER)

48111-14G00-YD8

Unavailable

6

SHIELD, LEG FRONT (BLUE) | MODEL K3

48111-14G00-Y7H

Unavailable

6

SHIELD, LEG FRONT (BLUE) | MODEL K3 FOR KT8

48111-14G00-YV1

Unavailable

6

SHIELD, LEG FRONT (BLUE) | MODEL K4

48111-14G00-YAR

Unavailable

6

SHIELD, LEG FRONT (GRAY) | MODEL K4

48111-14G00-YAU

Unavailable

7

SCREW

09136-06004

$2.15

8

NUT

09148-05038

$1.97

9

BRACE, LEG SHIELD | MODEL K3 This part replaces 48150-14G00.

48150-14G02

Unavailable

9

BRACE, LEG SHIELD | MODEL K4

48150-14G02

Unavailable

10

CUSHION

63191-25C00

$3.05

11

BOLT (8X16) | MODEL K3 This part replaces 01550-08163.

01550-0816A

$2.32

11

BOLT (8X12) | MODEL K4 This part replaces 01550-08123.

01550-0812A

$2.32

12

CUSHION

09320-08018

$3.04

13

SHIELD, LEG LOWER (BLACK)

48137-14G00-291

Unavailable

14

CLIP (BLACK)

09409-08308-5ES

$1.97
