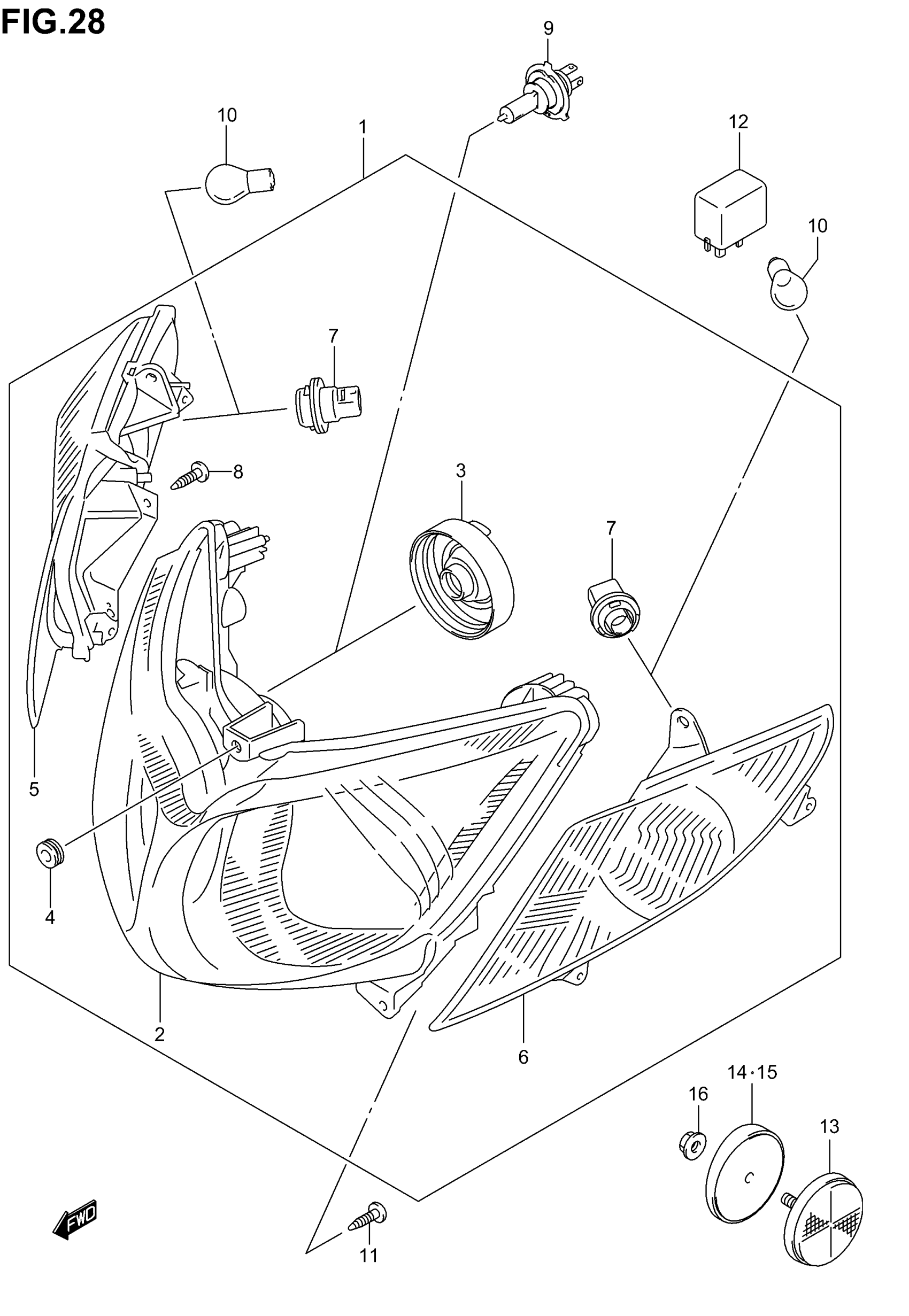

Suzuki AN400 (2006) FRONT COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT COMB | Includes Item(s) 2 - 8

35100-14G30-999

Unavailable

2

HEADLAMP

35101-14G00-999

Unavailable

3

COVER

35173-14G00

$17.45

4

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.10

5

TURNSIGNAL, RH

35605-14G30-999

Unavailable

6

TURNSIGNAL, LH

35606-14G30-999

Unavailable

7

SOCKET

35618-74G00

Unavailable

8

SCREW This part replaces 03541-05163.

03541-0516A

$1.49

9

BULB (12V35/35W,HS1)

09471-12101

$64.80

10

BULB (12V21W)

09471-12186

$12.66

11

SCREW This part replaces 03541-05163.

03541-0516A

$1.49

12

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08

13

REFLEX REFLECTOR ASSY, FR SIDE

35950-14A30

$20.68

14

SPACER, RH

35954-14F00

$5.98

15

SPACER, LH

35955-14F00

$5.98

16

NUT This part replaces 08310-00053.

08310-0005A

$1.84
