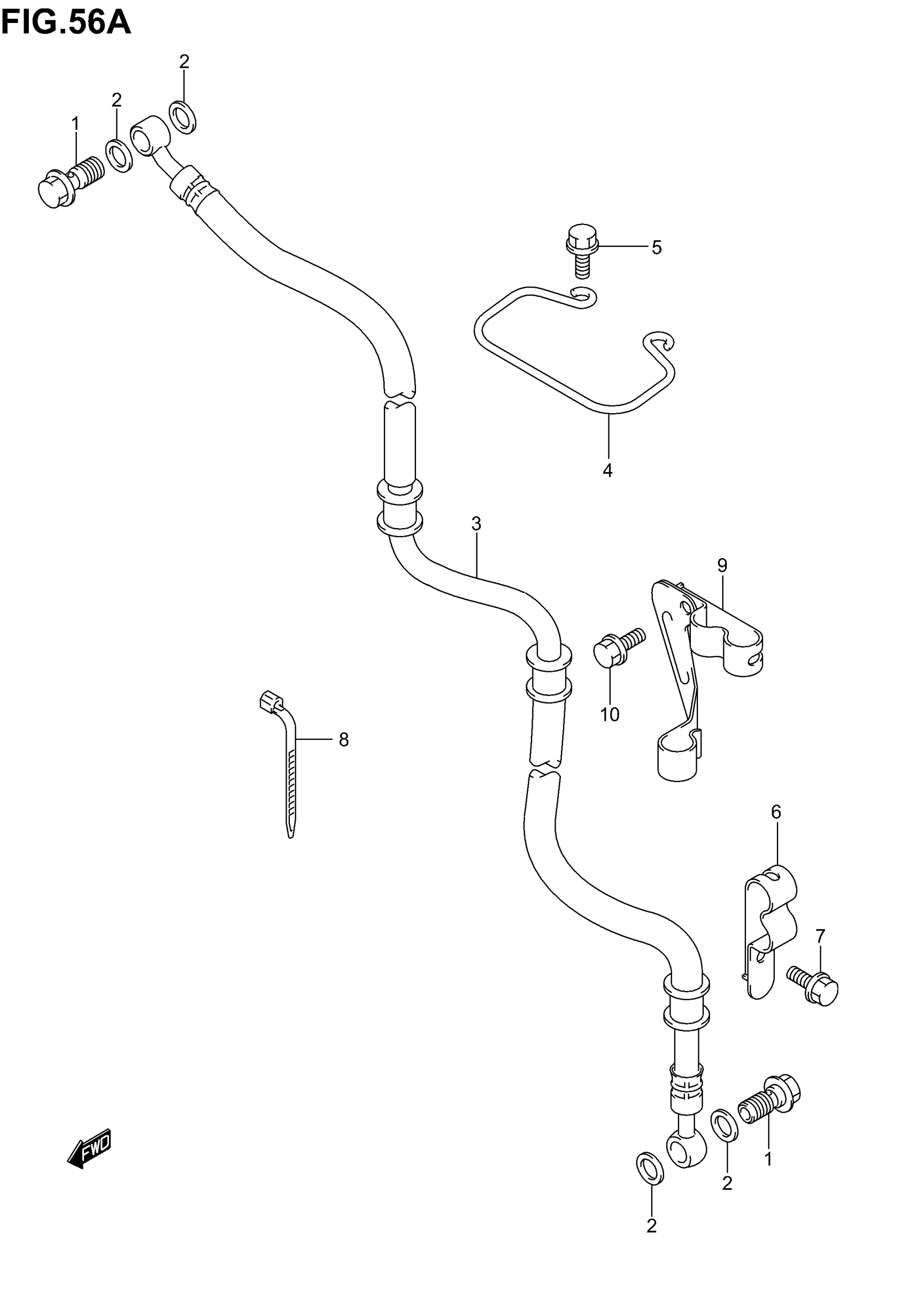

Suzuki AN400 (2006) FRONT BRAKE HOSE (AN400K4/K5/K6) Diagram

#

Description

Price

1

UNION This part replaces 09360-10042.

09360-10062

$6.43

2

WASHER (10X15X1.5)

09161-10009

$1.84

3

NO DESCRIPTION AVAILABLE This part replaces 59480-14G20.

59480-14G22

Unavailable

4

GUIDE, FRONT BRAKE HOSE

59251-14F00

Unavailable

5

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

6

CLAMP, FRONT BRAKE HOSE NO.1

59245-14F00

Unavailable

7

BOLT

01550-06107

$2.80

8

CLAMP

09407-18402

$2.19

9

CLAMP, FR BRAKE HOSE

59270-14G00

Unavailable

10

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97
