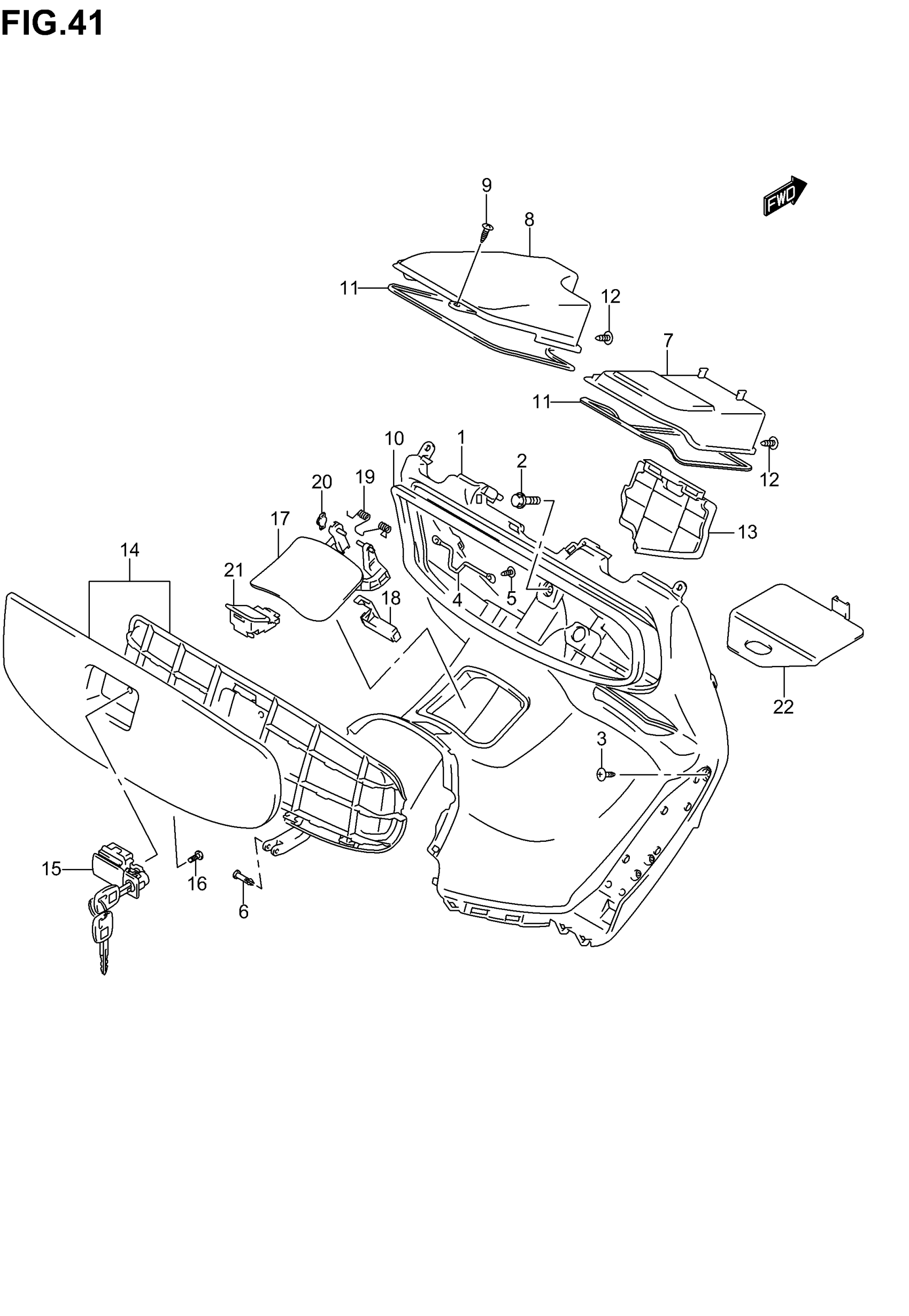

Suzuki AN400 (2006) FRONT BOX Diagram

#

Description
Price

1

BOX, FRONT (GRAY)

92111-14G20-Y0J

Unavailable

2

BOLT This part replaces 09116-06173.

09116-06205

$2.63

3

SCREW This part replaces 03541-05163.

03541-0516A

$1.49

4

STRIKER,FRONT B This part replaces 92171-14G00.

92171-14G01

Unavailable

5

SCREW This part replaces 03541-05163.

03541-0516A

$1.49

6

PIN, BOX HINGE

73423-50G00

$5.10

7

COVER, BOX INNER NO.1 (GRAY)

92112-14G00-Y0J

Unavailable

8

COVER, BOX INNER NO.2 (GRAY)

92113-14G00-Y0J

Unavailable

9

SCREW This part replaces 03541-05123.

03541-0512A

$1.49

10

CUSHION, BOX NO.1

92114-14G00

Unavailable

11

CUSHION, INNER This part replaces 92115-14G00.

92116-05H00

$5.99

12

SCREW This part replaces 03542-06163.

03541-0616A

$2.02

13

LID, BATTERY BOX (GRAY)

92191-14G00-Y0J

$25.98

14

LID, FRONT BOX (GRAY)

92120-14G00-Y0J

$114.08

15

LOCK SET, FRONT BOX This part replaces 92100-10841-Y0J.

92100-10841

$166.35

16

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

17

LID, FUEL (GRAY)

92161-14G00-Y0J

$31.28

18

LOCK,FUEL LID ARM This part replaces 92162-14G00-Y0J.

92162-14G01

$13.85

19

SPRING, FUEL LID This part replaces 92163-14G00.

92163-14G01

$11.90

20

DAMPER,FUEL LID

92164-14G00

$14.77

21

LOCK ASSY,FUEL This part replaces 92180-14G01-Y0J.

92180-14G02-Y0J

Unavailable

22

PLATE, ELECTRIC PARTS This part replaces 47412-14G00.

47412-14G01

$17.70
