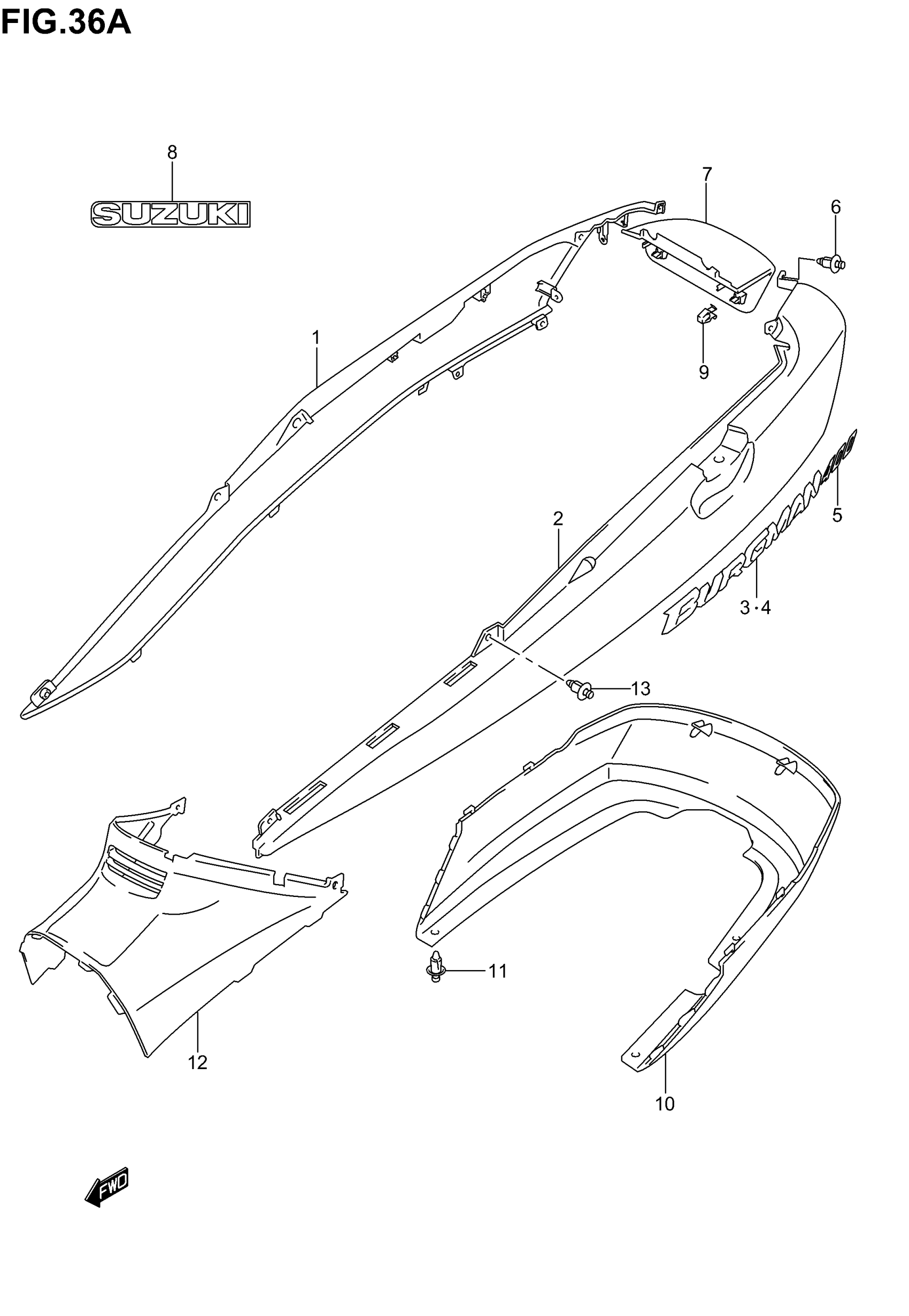

Suzuki AN400 (2006) FRAME COVER (MODEL K4) Diagram

#

Description
Price

1

COVER, FRAME RH (SILVER)

47111-14G00-YD8

Unavailable

1

COVER,FRAME,R This part replaces 47111-14G00-YAR.

47111-14G00

Unavailable

1

COVER, FRAME RH (GRAY)

47111-14G00-YAU

Unavailable

2

COVER, FRAME LH (SILVER)

47211-14G00-YD8

Unavailable

2

COVER, FRAME LH (BLUE)

47211-14G00-YAR

Unavailable

2

COVER, FRAME LH (GRAY)

47211-14G00-YAU

Unavailable

3

EMBLEM, RH

68131-15F10

Unavailable

4

EMBLEM, LH

68141-15F10

Unavailable

5

EMBLEM, "400" (GRAY) | FOR YD8

68131-14G10-1ZZ

Unavailable

5

EMBLEM,400 | FOR YAR,YAU This part replaces 68131-14G10-17U.

68131-14G11-17U

$11.05

6

CLIP (BLACK)

09409-08308-5ES

$1.97

7

COVER, FRAME CENTER (SILVER)

47311-14G00-YD8

$70.60

7

COVER, FRAME CENTER (BLUE)

47311-14G00-YAR

Unavailable

7

COVER, FRAME CENTER (GRAY)

47311-14G00-YAU

Unavailable

8

EMBLEM, "SUZUKI" | FOR YD8

68165-14F00-CD5

Unavailable

8

EMBLEM, "SUZUKI" | FOR YAR

68165-14F00-MR2

Unavailable

8

EMBLEM, "SUZUKI" | FOR YAU

68165-14F00-AFF

Unavailable

9

CLIP

09409-08326

$2.48

10

COVER, FRAME LOWER (SILVER)

47321-14G00-YD8

Unavailable

10

COVER, FRAME LOWER (BLUE)

47321-14G00-YAR

Unavailable

10

COVER, FRAME LOWER (GRAY)

47321-14G00-YAU

Unavailable

11

CLIP (BLACK)

09409-08308-5ES

$1.97

12

COVER, FRAME FRONT (GRAY) This part replaces 47351-14G00-Y0J.

47351-14G01-Y0J

$90.78

13

CLIP (BLACK)

09409-08308-5ES

$1.97
