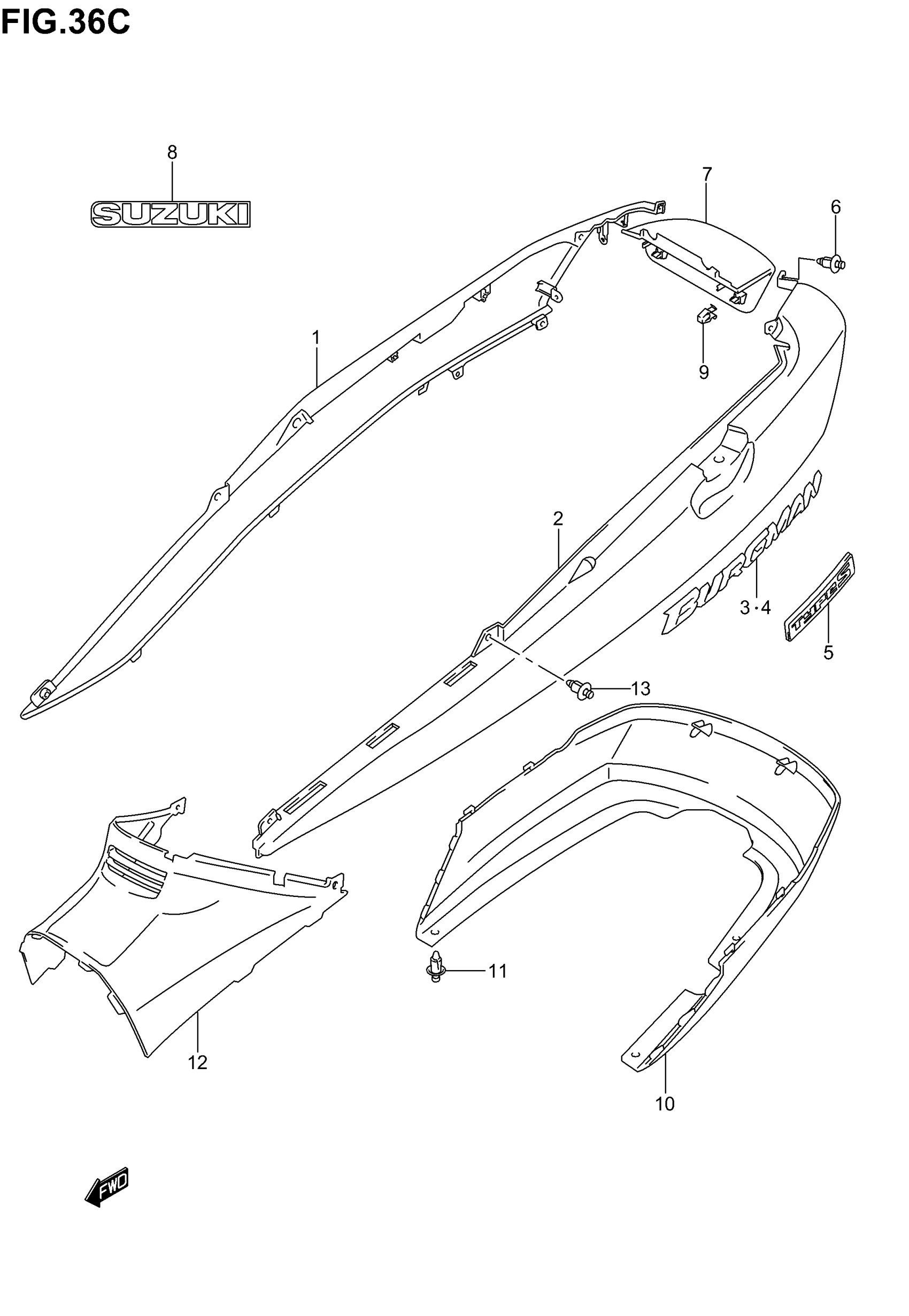

Suzuki AN400 (2006) FRAME COVER (AN400SK5/SK6) Diagram

#

Description
Price

1

COVER, FRAME RH (BLUE)

47111-14G00-YC2

Unavailable

1

COVER, FRAME RH (RED)

47111-14G00-YU7

Unavailable

1

COVER, FRAME RH (BLACK)

47111-14G00-YAY

Unavailable

2

COVER, FRAME LH (BLUE)

47211-14G00-YC2

Unavailable

2

COVER, FRAME LH (RED)

47211-14G00-YU7

Unavailable

2

COVER, FRAME LH (BLACK)

47211-14G00-YAY

Unavailable

3

EMBLEM, RH

68131-15F10

Unavailable

4

EMBLEM, LH

68141-15F10

Unavailable

5

EMBLEM, "TYPE-S"

68131-14F00

Unavailable

6

CLIP (BLACK)

09409-08308-5ES

$1.97

7

COVER, FRAME CENTER (BLUE)

47311-14G00-YC2

Unavailable

7

COVER, FRAME CENTER (RED)

47311-14G00-YU7

Unavailable

7

COVER, FRAME CENTER (BLACK)

47311-14G00-YAY

Unavailable

8

.EMBLEM,"SUZUKI" (SILVER) This part replaces 68271-34A00-YES.

68271-34A01-YES

$6.85

9

CLIP

09409-08326

$2.48

10

COVER, FRAME LOWER (BLUE)

47321-14G00-YC2

Unavailable

10

COVER, FRAME LOWER (RED)

47321-14G00-YU7

Unavailable

10

COVER, FRAME LOWER (BLACK)

47321-14G00-YAY

Unavailable

11

CLIP (BLACK)

09409-08308-5ES

$1.97

12

COVER, FRAME FRONT (GRAY)

47351-14G01-Y0J

$90.78

13

CLIP (BLACK)

09409-08308-5ES

$1.97
