Partiron

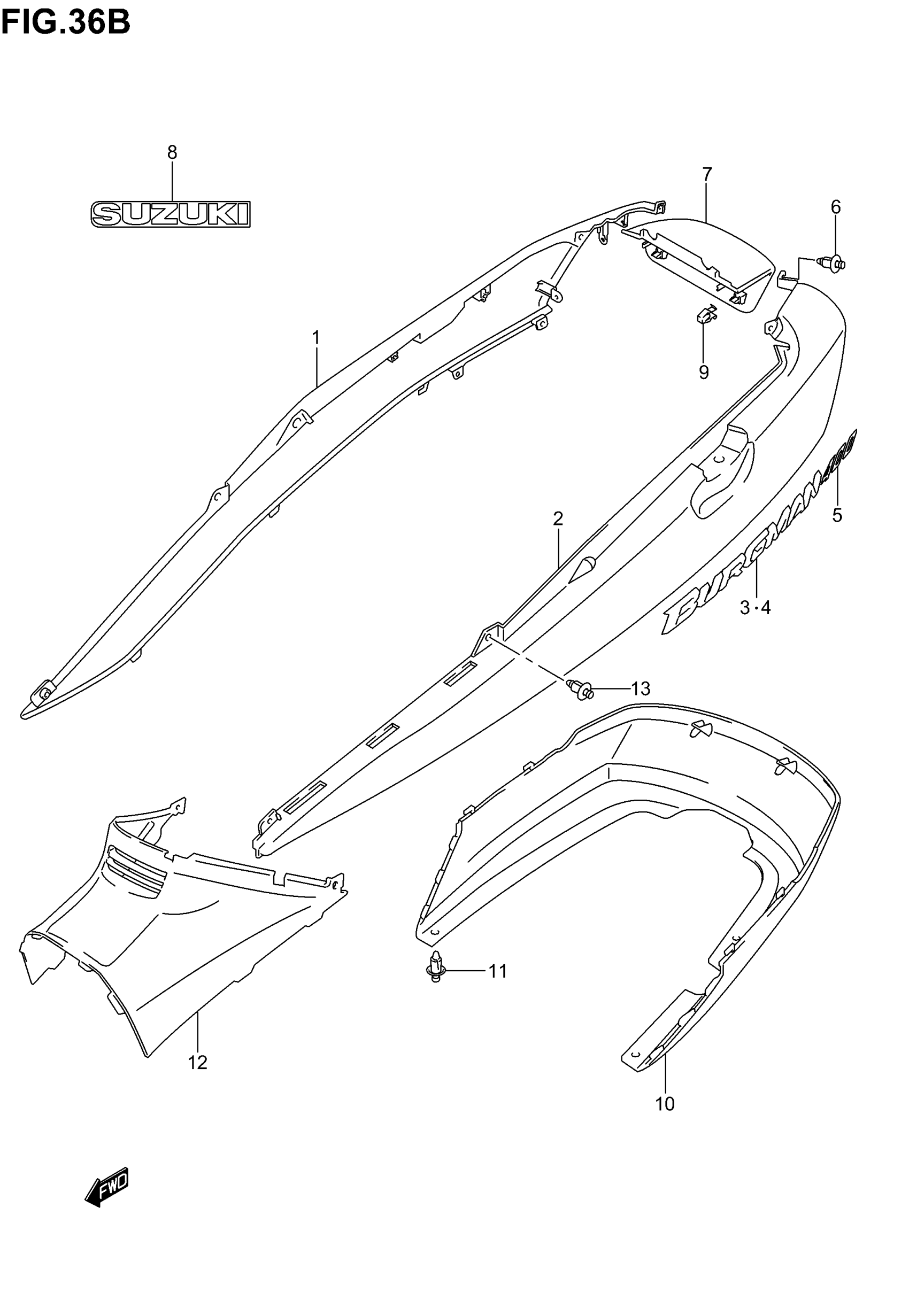

Suzuki AN400 (2006) FRAME COVER (AN400K5/K6) Diagram

#

Description
Price

1

COVER, FRAME RH (SILVER) | MODEL K5

47111-14G00-YD8

Unavailable

1

COVER, FRAME RH (BLACK)

47111-14G00-YAY

Unavailable

1

COVER, FRAME RH (BLUE)

47111-14G00-YBA

Unavailable

1

COVER, FRAME RH (BLUE) | MODEL K6

47111-14G00-YHG

Unavailable

2

COVER, FRAME LH (SILVER) | MODEL K5

47211-14G00-YD8

Unavailable

2

COVER, FRAME LH (BLACK)

47211-14G00-YAY

Unavailable

2

COVER, FRAME LH (BLUE)

47211-14G00-YBA

Unavailable

2

COVER, FRAME LH (GRAY) | MODEL K6

47211-14G00-YHG

Unavailable

3

EMBLEM, RH

68131-15F10

Unavailable

4

EMBLEM, LH

68141-15F10

Unavailable

5

EMBLEM,400 | FOR YD8 This part replaces 68131-14G10-17U.

68131-14G11-17U

$11.05

5

EMBLEM, "400" (SILVER) | FOR YAY,YBA,YHG

68131-14G10-YD8

Unavailable

6

CLIP (BLACK)

09409-08308-5ES

$1.97

7

COVER, FRAME CENTER (SILVER) | MODEL K5

47311-14G00-YD8

$70.60

7

COVER, FRAME CENTER (BLACK)

47311-14G00-YAY

Unavailable

7

COVER, FRAME CENTER (BLUE)

47311-14G00-YBA

Unavailable

7

COVER, FRAME CENTER (GRAY) | MODEL K6

47311-14G00-YHG

$70.60

8

EMBLEM,"SUZUKI" | FOR YD8 This part replaces 68271-34A00-YJH.

68271-34A01-YJH

$8.35

8

.EMBLEM,"SUZUKI" (SILVER) | FOR YAY,YBA,YHG This part replaces 68271-34A00-YES.

68271-34A01-YES

$6.85

9

CLIP

09409-08326

$2.48

10

COVER, FRAME LOWER (SILVER) | MODEL K5

47321-14G00-YD8

Unavailable

10

COVER, FRAME LOWER (BLACK)

47321-14G00-YAY

Unavailable

10

COVER, FRAME LOWER (BLUE)

47321-14G00-YBA

Unavailable

10

COVER, FRAME LOWER (BLUE) | MODEL K6

47321-14G00-YHG

Unavailable

11

CLIP (BLACK)

09409-08308-5ES

$1.97

12

COVER, FRAME FRONT (GRAY)

47351-14G01-Y0J

$90.78

13

CLIP (BLACK)

09409-08308-5ES

$1.97
