Partiron

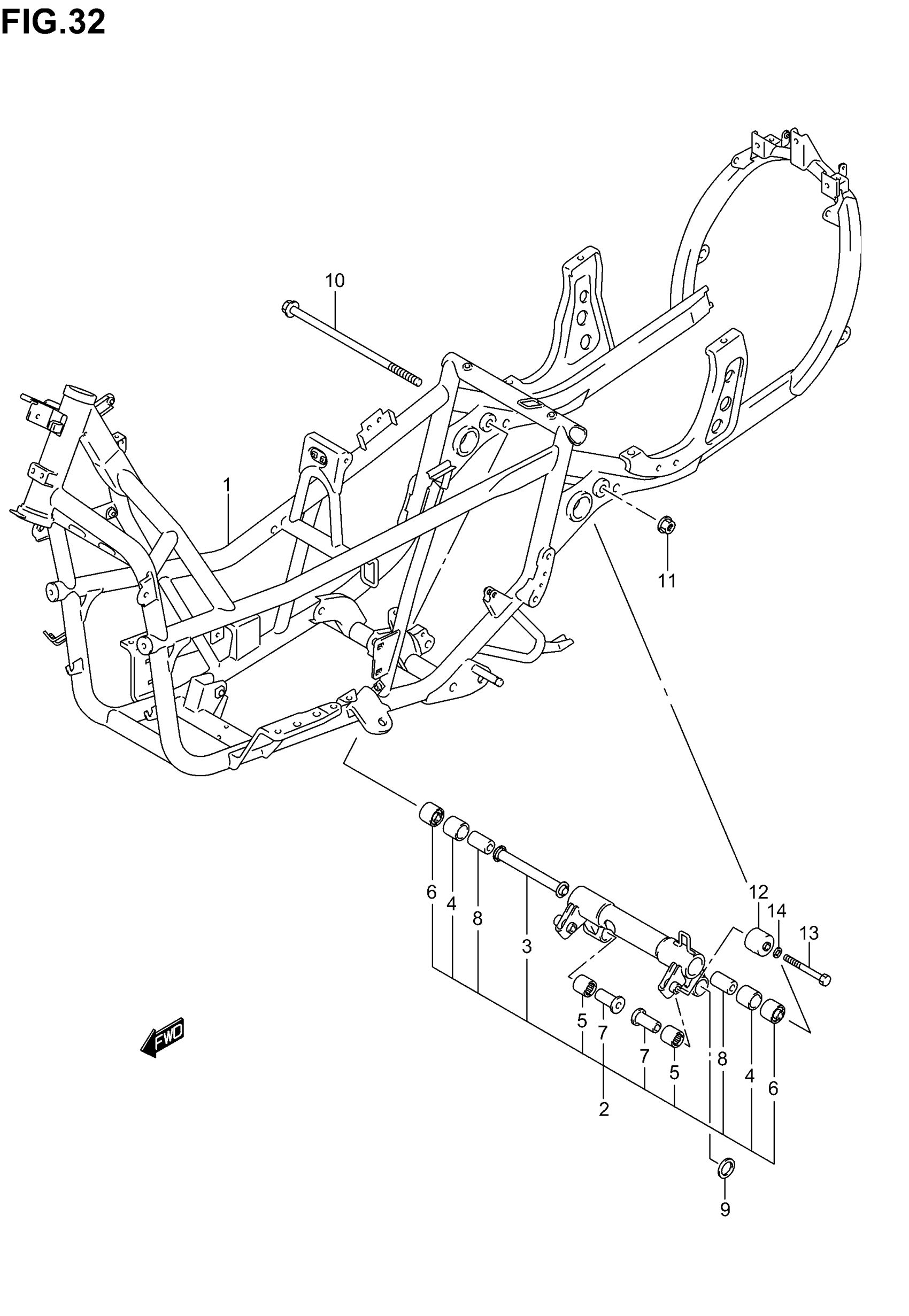

Suzuki AN400 (2006) FRAME Diagram

#

Description
Price

1

FRAME | MODEL K3

41100-15G00

Unavailable

1

FRAME | MODEL K4/K5/K6

41100-15G20

Unavailable

2

BRACKET SET, CRANKCASE | MODEL K3/K4/K5

41180-15832

Unavailable

2

BRACKET SET, CRANKCASE | MODEL K6; Includes Item(s) 3 - 8

41180-15840

Unavailable

3

SPACER, BRACKET

41210-14F00

Unavailable

4

BEARING

09263-25063

Unavailable

5

.BEARING This part replaces 09263-20064.

09263-20120

$22.46

6

BUSH

09319-12054

Unavailable

7

SPACER, ENGINE This part replaces 41214-14F00.

41214-14F10

Unavailable

8

SPACER, BRACKET

41213-14F00

Unavailable

9

WASHER

09160-12044

$4.03

10

BOLT

09103-12063

Unavailable

11

NUT This part replaces 08319-31128.

08319-3112A

$3.76

12

CUSHION,SWING STOP

41185-14F00

Unavailable

13

BOLT

09100-12046

Unavailable

14

WASHER This part replaces 08322-01123.

08322-0112B

$2.62
