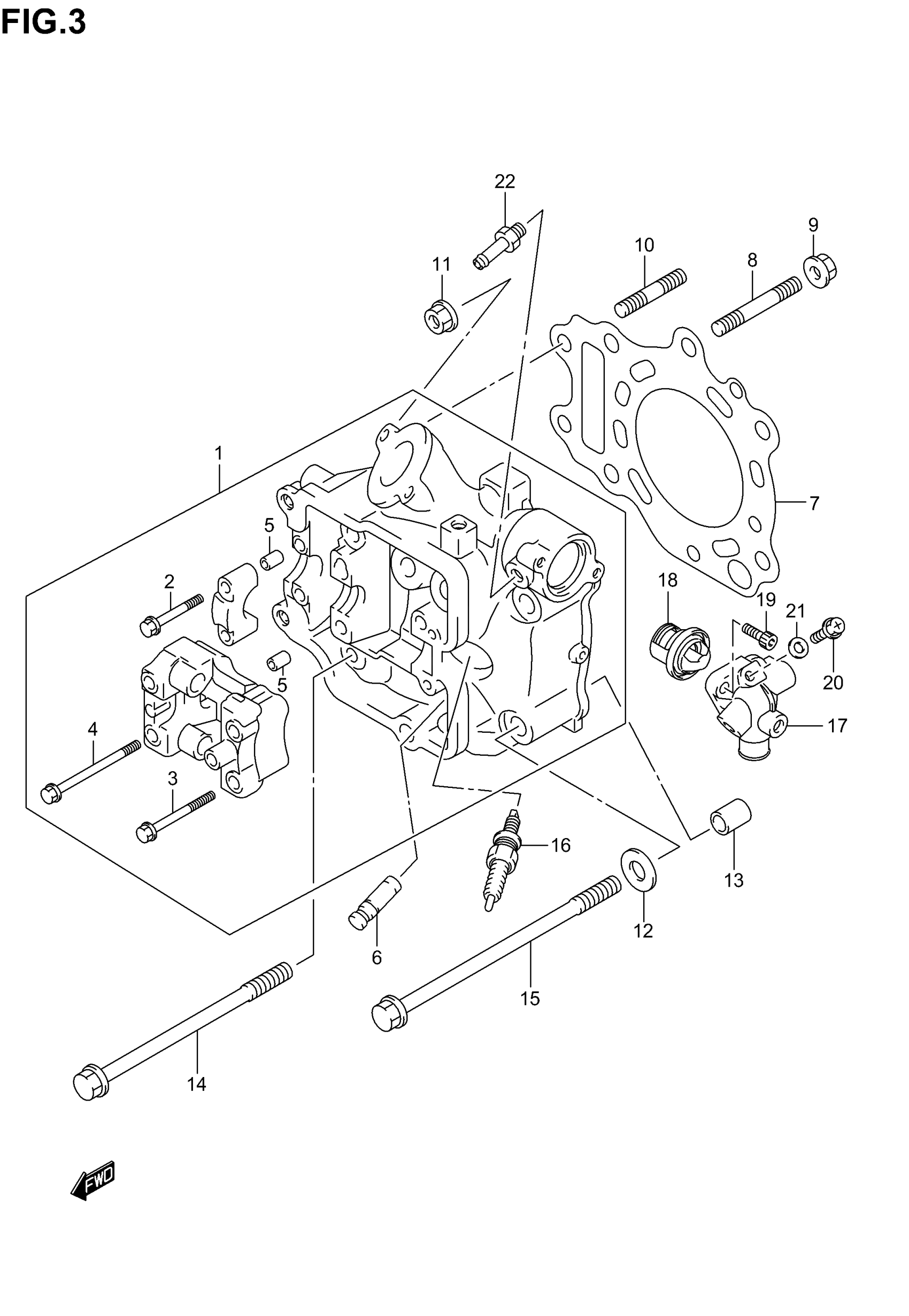

Suzuki AN400 (2006) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | Includes Item(s) 2 - 5

11100-15F50

Unavailable

2

BOLT (6X39)

09103-06026

$1.98

3

BOLT

09103-06219

$2.25

4

BOLT

09103-06220

$2.47

5

PIN

09206-08001

$1.78

6

GUIDE,VALVE (OS:0.3) | OPT

11115-14D71

$39.23

7

GASKET, CYLINDER HEAD

11141-15F00

$42.83

8

STUD BOLT This part replaces 01421-08503.

01421-0850A

$3.07

9

NUT This part replaces 08316-10083.

08316-1008B

$2.66

10

BOLT, STUD

09108-06107

Unavailable

11

NUT This part replaces 08316-10063.

08316-1006B

$2.50

12

GASKET, 10.5X22X2

09168-10017

$3.04

13

PIN

04211-13189

$2.19

14

BOLT

09103-10355

Unavailable

15

BOLT

09103-10223

$19.52

16

PLUG, SPARK, CR7E

09482-00516

$6.47

16

PLUG, SPARK, U22ESR-N

09482-00515

$5.97

16

PLUG, SPARK, CR8E | OPT

09482-00456

$6.73

16

PLUG, SPARK, U24ESR-N | OPT

09482-00457

$6.09

16

PLUG SPARK (CR9E) | OPT

09482-00458

$6.47

16

PLUG, SPARK, U27ESR | OPT

09482-00459

$6.09

17

COVER,THERMOSTAT

17661-14G00

Unavailable

18

THERMOSTAT,WATE This part replaces 17670-08D20.

17670-08D21

$41.83

19

BOLT, FRONT BRG HOUSING This part replaces 07130-06203.

07130-0620B

$3.05

20

UNION, AIR VENT

17568-50F00

$4.76

21

GASKET, 6.4X11.5X0.8

09168-06026

$3.10

22

UNION, WATER BYPASS HOSE

09362-09011

$8.28
