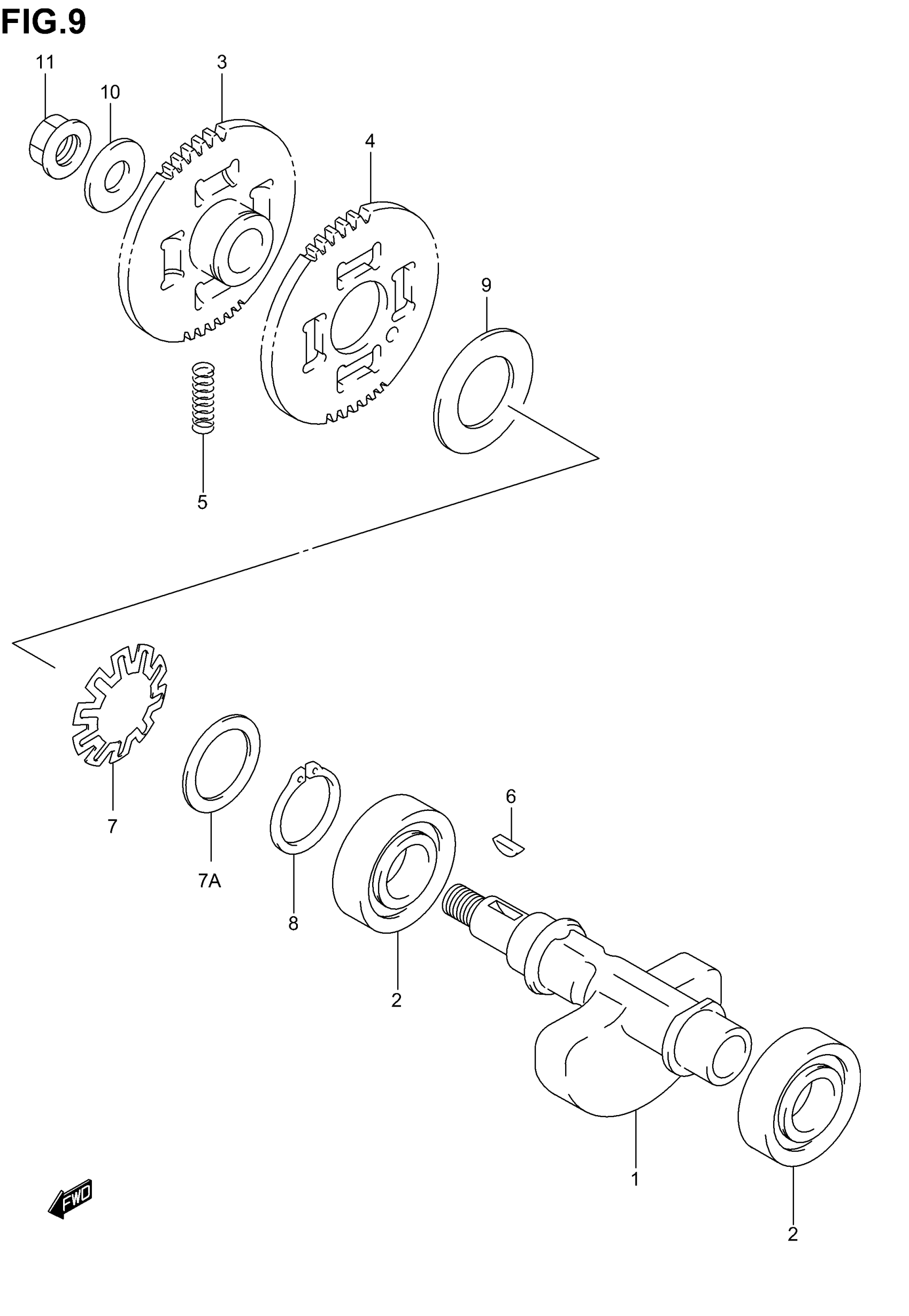

Suzuki AN400 (2006) CRANK BALANCER Diagram

#

Description
Price

1

BALANCER, CRANK

12651-15F00

Unavailable

2

BEARING, 20X47X14

09262-20121

$33.92

3

GEAR, CRANK BALANCER DRN, NO.1 | MODEL K3/K4 This part replaces 12666-14F00.

12666-14F10

Unavailable

3

GEAR, CRANK BALANCER DRN, NO.1 | MODEL K5/K6

12666-14F10

Unavailable

4

GEAR, CRANK BALANCER DRN, NO.2

12667-14F00

Unavailable

5

SPRING | MODEL K3/K4

09440-07064

Unavailable

5

SPRING | MODEL K5/K6

09440-07077

Unavailable

6

KEY

09420-04008

$3.42

7

WASHER, 28.5X47X8X2.5 | MODEL K3/K4

09164-28002

Unavailable

7A

SHIM | MODEL K3/K4

08221-28365

$2.53

8

CIRCLIP This part replaces 08331-31286.

08331-31289

$2.19

9

WASHER

08211-28482

Unavailable

10

THRUST WASHER

08211-12283

$2.12

11

NUT This part replaces 08316-10123.

08316-1012A

$2.26
