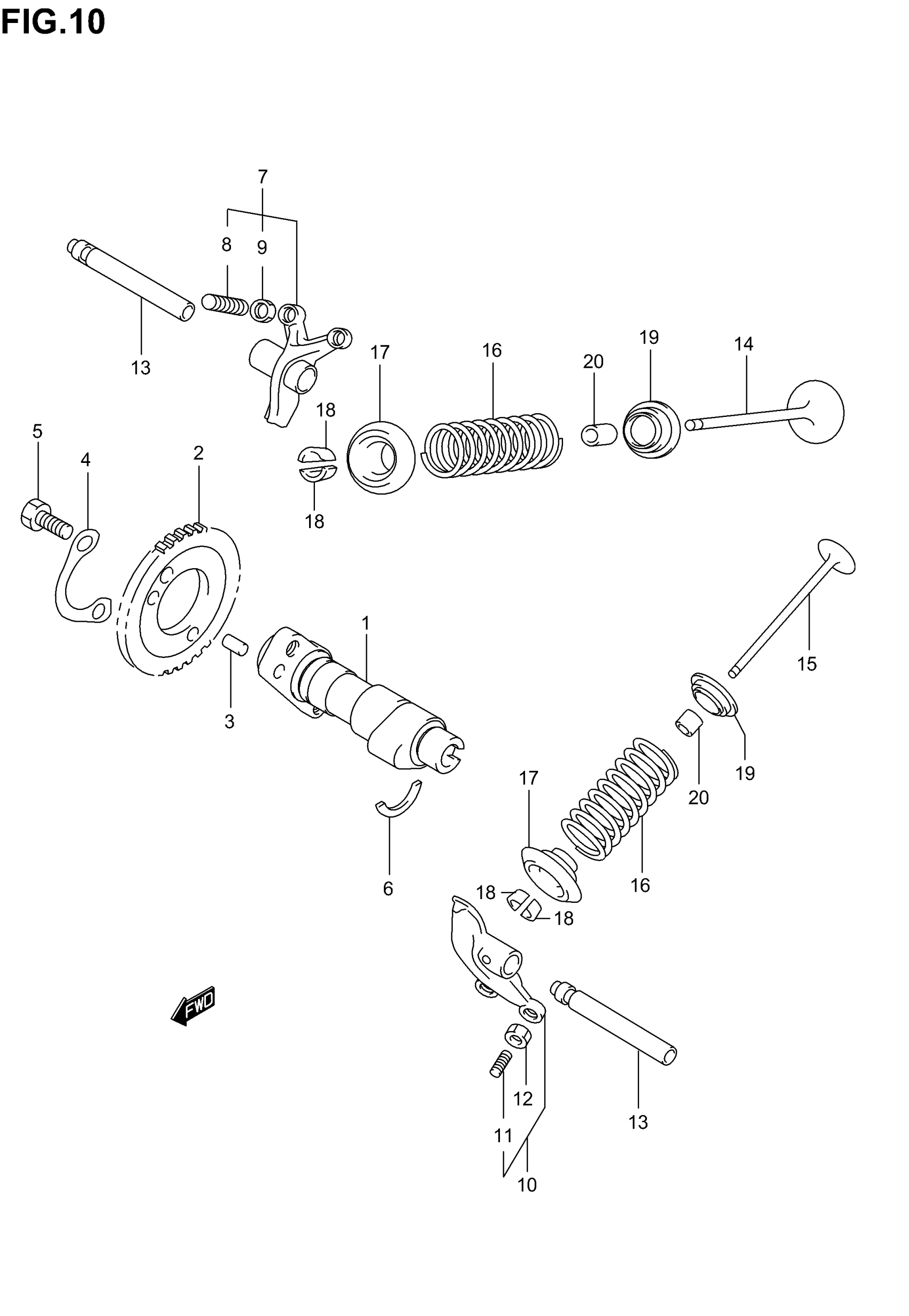

Suzuki AN400 (2006) CAM SHAFT/VALVE Diagram

#

Description
Price

1

SHAFT, CAM

12710-15F01

Unavailable

2

SPROCKET, CAM SHAFT

12741-14D50

$49.22

3

PIN, 5X8

09261-05005

$1.49

4

WASHER,SPROCKET

12747-44B00

$2.72

5

BOLT

09111-06032

$2.21

6

C-RING

09390-22002

$2.27

7

ARM, VALVE ROCKER INTAKE | Includes Item(s) 8 - 9

12840-15G00

$90.28

8

.SCREW,TAPPET ADJUSTING

12842-17C50

$17.94

9

.NUT,TAPPET ADJUSTING

12843-27A00

$2.94

10

ARM, VALVE ROCKER EXHAUST | Includes Item(s) 11 - 12

12850-15G00

Unavailable

11

.SCREW,TAPPET ADJUSTING

12842-17C50

$17.94

12

.NUT,TAPPET ADJUSTING

12843-27A00

$2.94

13

SHAFT, VALVE ROCKER ARM

12861-14F00

Unavailable

14

VALVE,INTAKE This part replaces 12911-14D01.

12911-14D10

$38.13

15

VALVE,EXHAUST

12912-14D01

$60.40

16

SPRING, VALVE

12921-03G00

$12.03

17

RETAINER,VALVE SPRING

12931-27A20

$8.12

18

COTTER, VALVE

12932-27A00

$2.26

19

SEAT,VALVE SPRING

12933-81400

$5.17

20

OIL SEAL

09289-05011

$6.32
