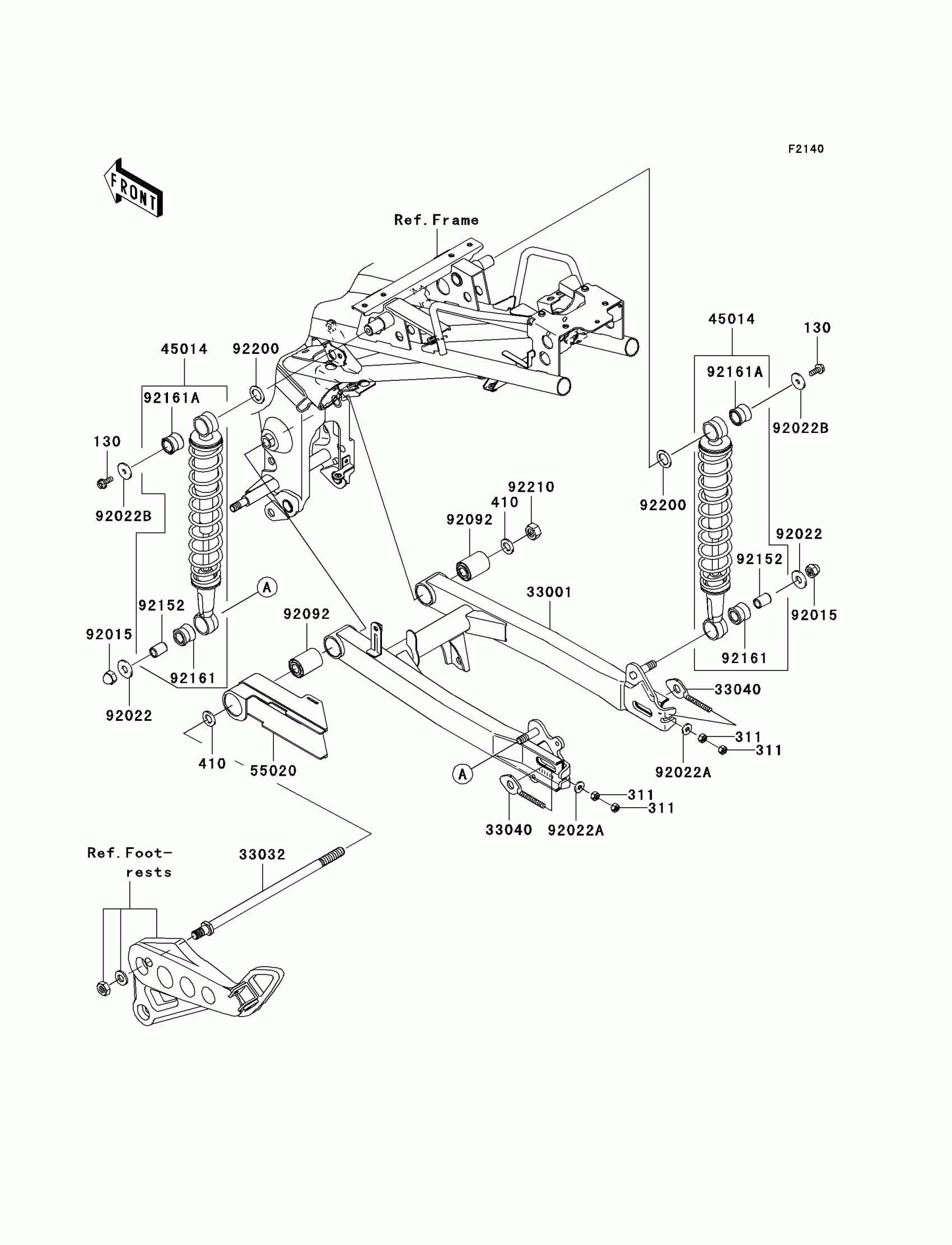

Kawasaki AN112 Swingarm/Shock Absorber Diagram

Description

Price

130

BOLT-FLANGED,6X16

130BA0616

$0.97

311

NUT-HEX,6MM

311AA0600

$0.81

410

WASHER-PLAIN-SMALL,12MM,BLACK

410AB1200

$4.34

33001

ARM-COMP-SWING,SILVER

33001-0022-CE

$89.15

33032

SHAFT-SWING ARM

33032-1184

$57.61

33040

ADJUSTER-CHAIN

33040-1006

$7.02

45014

SHOCKABSORBER

45014-0042

$145.29

55020

GUARD,CHAIN

55020-1770

$3.58

92015

NUT,CAP,10MM

92015-1685

$11.92

92022

WASHER,10.5X26X2.3

92022-044

$2.99

92022A

WASHER,6.5X16X2

92022-1565

$2.99

92022B

WASHER,6.5X24X2

92022-1690

$2.99

92092

BUSHING-RUBBER

92092-1089

$8.76

92152

COLLAR

92152-0086

$2.71

92161

DAMPER,SHOCKABSORBER

92161-1262

$0.76

92161A

DAMPER,SHOCKABSORBER

92161-1263

$1.03

92200

WASHER,17X26X1.6

92200-1607

$0.35

92210

NUT,SWING ARM SHAFT,M12 P1.25

92210-1085

$4.07
