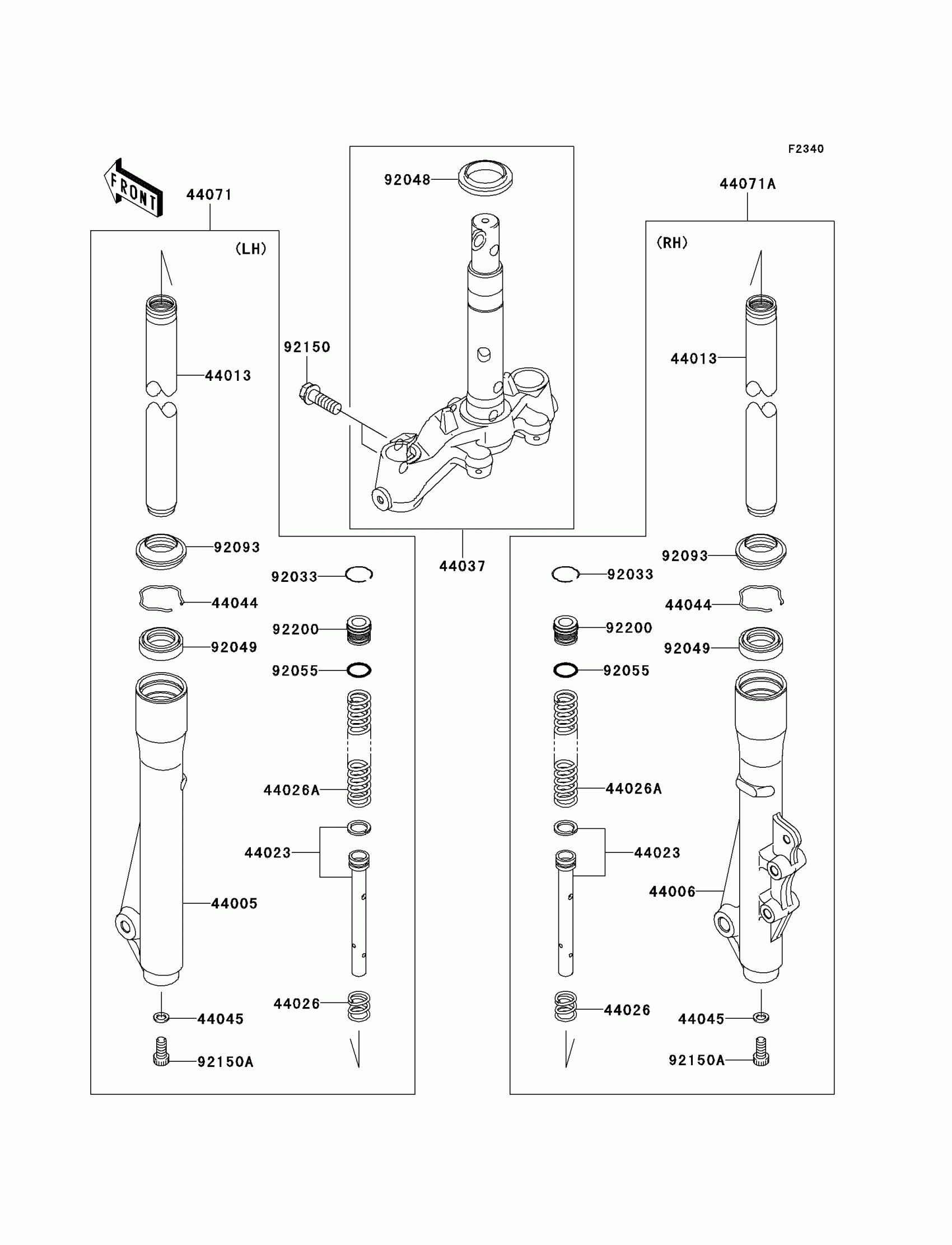

Kawasaki AN112 Front Fork Diagram

#

Description
Price

44005

PIPE-LEFT FORK OUTER

44005-0036

$230.79

44006

PIPE-RIGHT FORK OUTER

44006-0035

$230.79

44013

PIPE-FORK INNER

44013-1499

$69.61

44023

CYLINDER-SET-FORK

44023-0016

$74.92

44026

SPRING-FRONT FORK

44026-1651

$10.56

44026A

SPRING-FRONT FORK

44026-1770

$14.69

44037

HOLDER-FORK UNDER

44037-0014

$315.85

44044

RING-SNAP,45MM

44044-020

$12.92

44045

GASKET,FORK CYLINDER BOLT

44045-051

$4.64

44071

DAMPER-ASSY,FORK,LH

44071-0243

$431.98

44071A

DAMPER-ASSY,FORK,RH

44071-0244

$431.98

92033

RING-SNAP

92033-1328

$0.45

92048

RACE,STEERING STEM BEARING

92048-1119

$8.73

92049

SEAL-OIL

92049-1432

Unavailable

92055

RING-O

92055-1675

$0.45

92093

SEAL,FORK OUTER TUBE

92093-1559

$2.36

92150

BOLT,FLANGED,10X30

92150-1174

$4.37

92150A

BOLT,SOCKET,8X18

92150-1432

$7.54

92200

WASHER

92200-1612

$2.49
