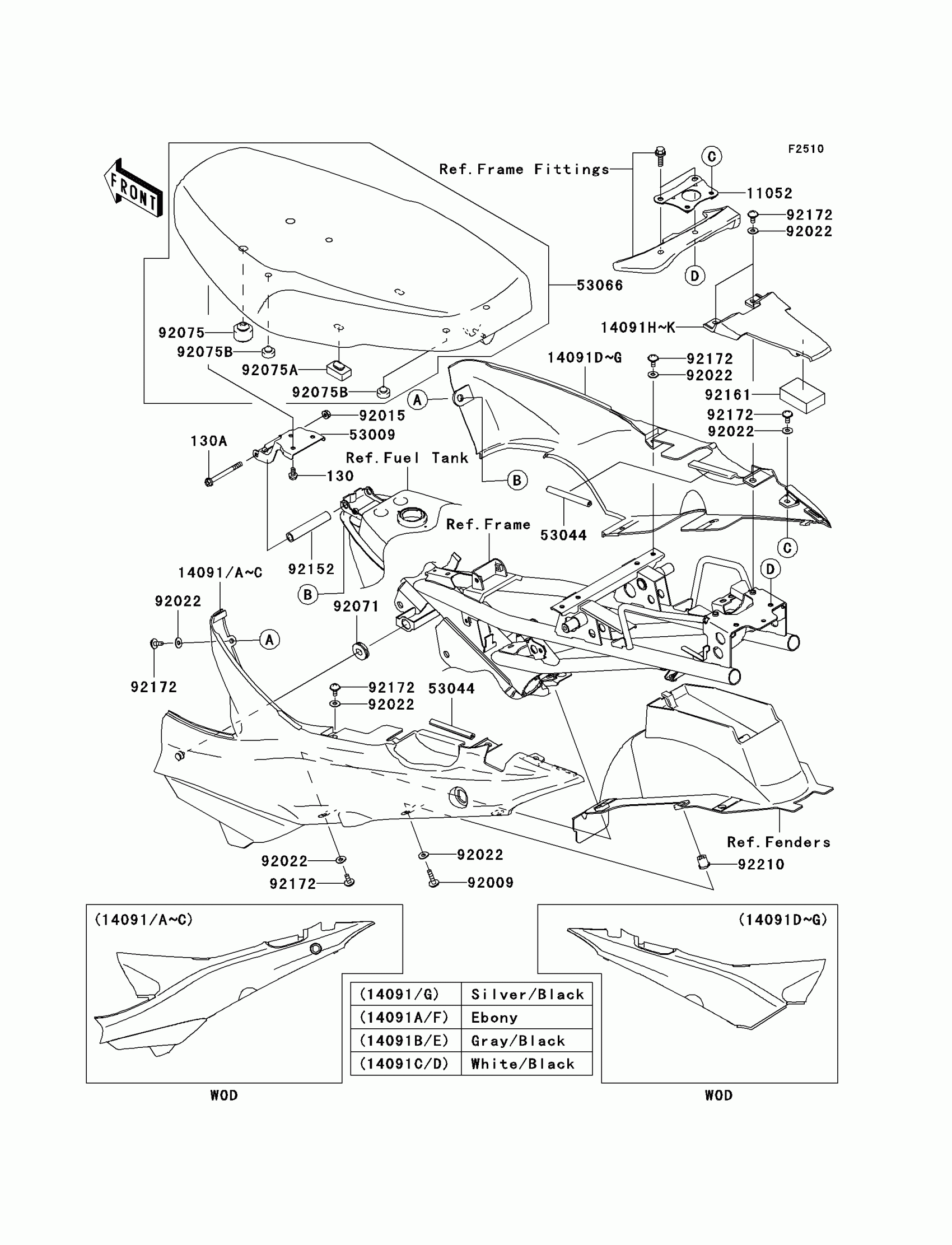

Kawasaki AN112 Seat Diagram
#
Description
Price
130
BOLT-FLANGED,6X12
130BA0612
$1.72
130A
BOLT-FLANGED,6X70
130BB0670
$5.93
11052
BRACKET,SEAT COVER,RR
11052-1854
$2.55
14091
COVER,SEAT,LH,SILVER/BLACK
14091-1411-14R
$49.63
14091B
COVER,SEAT,LH,GRAY/BLACK
14091-1411-20G
$49.63
14091E
COVER,SEAT,RH,M.B.GRAY
14091-1412-14J
$49.63
14091G
COVER,SEAT,RH,G.SILVER
14091-1412-4K
$49.63
14091I
COVER,SEAT,CNT,M.B.GRAY
14091-1413-14J
$12.99
14091K
COVER,SEAT,CNT,G.SILVER
14091-1413-4K
$12.99
53009
HINGE,SEAT
53009-1113
$4.49
53044
TRIM,L=85
53044-0007
Unavailable
53066
SEAT-ASSY,DUAL,BLACK
53066-0015-MA
$277.02
92009
SCREW,6X25
92009-1465
$3.92
92015
NUT,FLANGED,6MM,BLACK
92015-1233
$5.52
92022
WASHER,6.5X16X1
92022-1143
$3.92
92071
GROMMET
92071-1043
$5.46
92075
DAMPER
92075-015
$5.00
92075A
DAMPER
92075-099
$5.52
92075B
DAMPER,10X20X8
92075-1927
$4.39
92152
COLLAR,6.8X10X55.8
92152-1374
$1.04
92161
DAMPER
92161-1288
$1.37
92172
SCREW,6X14
92172-0055
$0.39
92210
NUT,WELL,6MM
92210-0184
Unavailable
