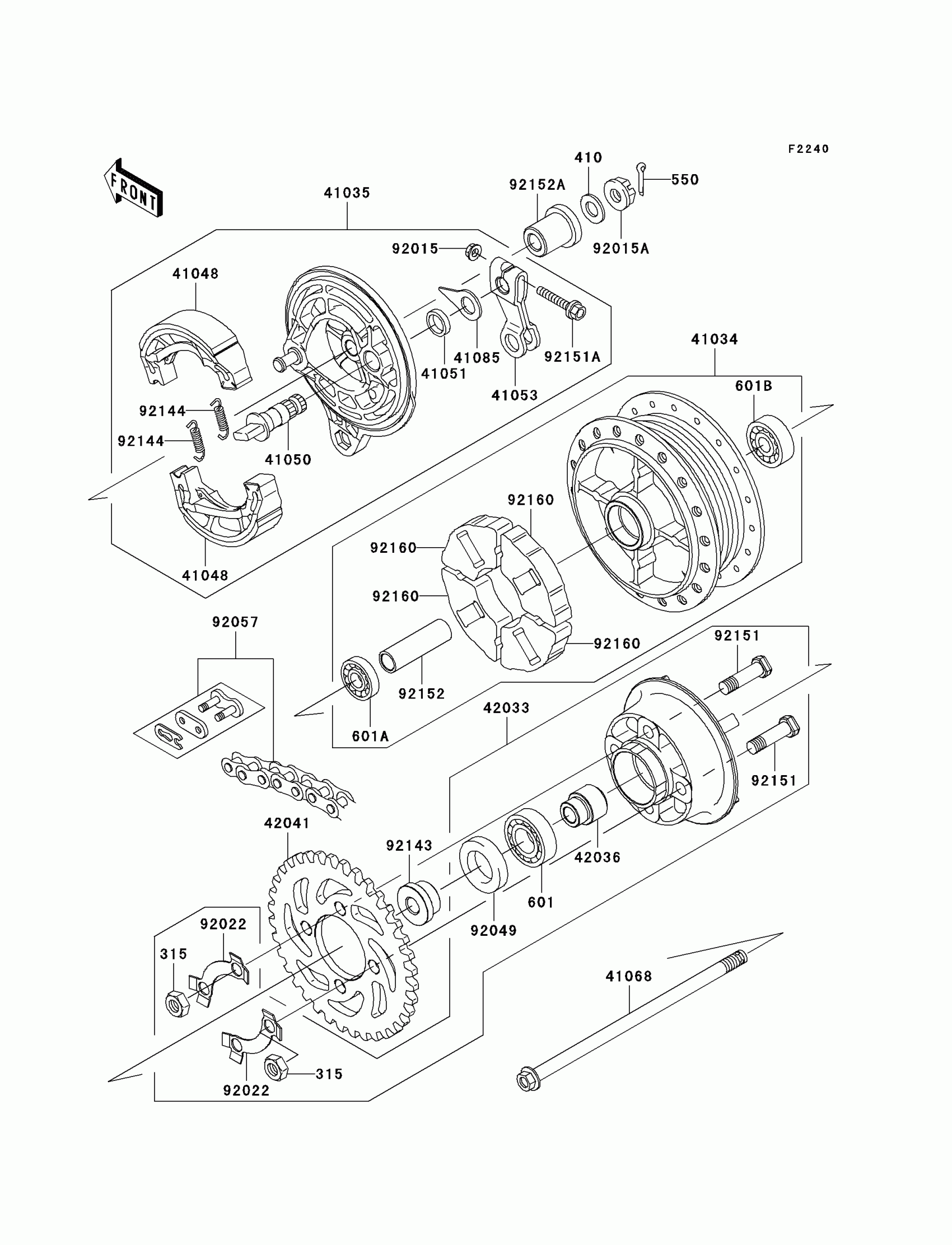

Kawasaki AN112 Rear Hub Diagram
#
Description
Price
315
NUT-HEX-FINE,10MM
315AA1000
$0.59
410
WASHER-PLAIN-SMALL,12MM
410AA1200
$0.72
550
PIN-COTTER,3.0X25
550AA3025
$0.62
601
BEARING-BALL,#6004UG
601B6004UG
$37.11
601A
BEARING-BALL,#6201UG
601B6201UG
$19.40
601B
BEARING-BALL,#6301UG
601B6301UG
$29.43
41034
DRUM-ASSY,REAR BRAKE
41034-0067
$222.40
41035
PANEL-ASSY-BRAKE,RR
41035-0005
$294.23
41048
SHOE-BRAKE
41048-0001
$9.89
41050
CAM-BRAKE
41050-1098
$8.74
41051
SEAL,BRAKE CAM
41051-001
$4.26
41053
LEVER-BRAKE CAM
41053-1089
$5.92
41068
AXLE,RR
41068-1442
$9.14
41085
INDICATOR
41085-1079
$0.84
42033
COUPLING-ASSY,RR HUB
42033-0004
$242.47
42036
SLEEVE,RR HUB COUPLING,L=29
42036-1292
$8.98
42041
SPROCKET-HUB,36T
42041-0007
$67.86
92015
NUT,FLANGED,6MM
92015-1367
$3.69
92015A
NUT,CASTLE,12MM
92015-1870
$6.36
92022
WASHER,LOCK
92022-1705
$7.68
92049
SEAL-OIL,S 26 42 8
92049-1428
$22.81
92057
CHAIN,DRIVE,FSCM428X102L
92057-0057
$70.66
92143
COLLAR,RR AXLE,LH,L=17
92143-1533
$5.52
92144
SPRING,BRAKE SHOE
92144-1907
$4.61
92151
BOLT,RR HUB COUPLING,10X36
92151-1160
$2.98
92151A
BOLT,FLANGED,6X34
92151-1209
$3.71
92152
COLLAR,RR BRAKE DRUM,L=58
92152-0354
$12.67
92152A
COLLAR,RR AXLE,RH,L=33
92152-1433
$5.02
92160
DAMPER,SHOCK,RR HUB
92160-1627
$11.91
