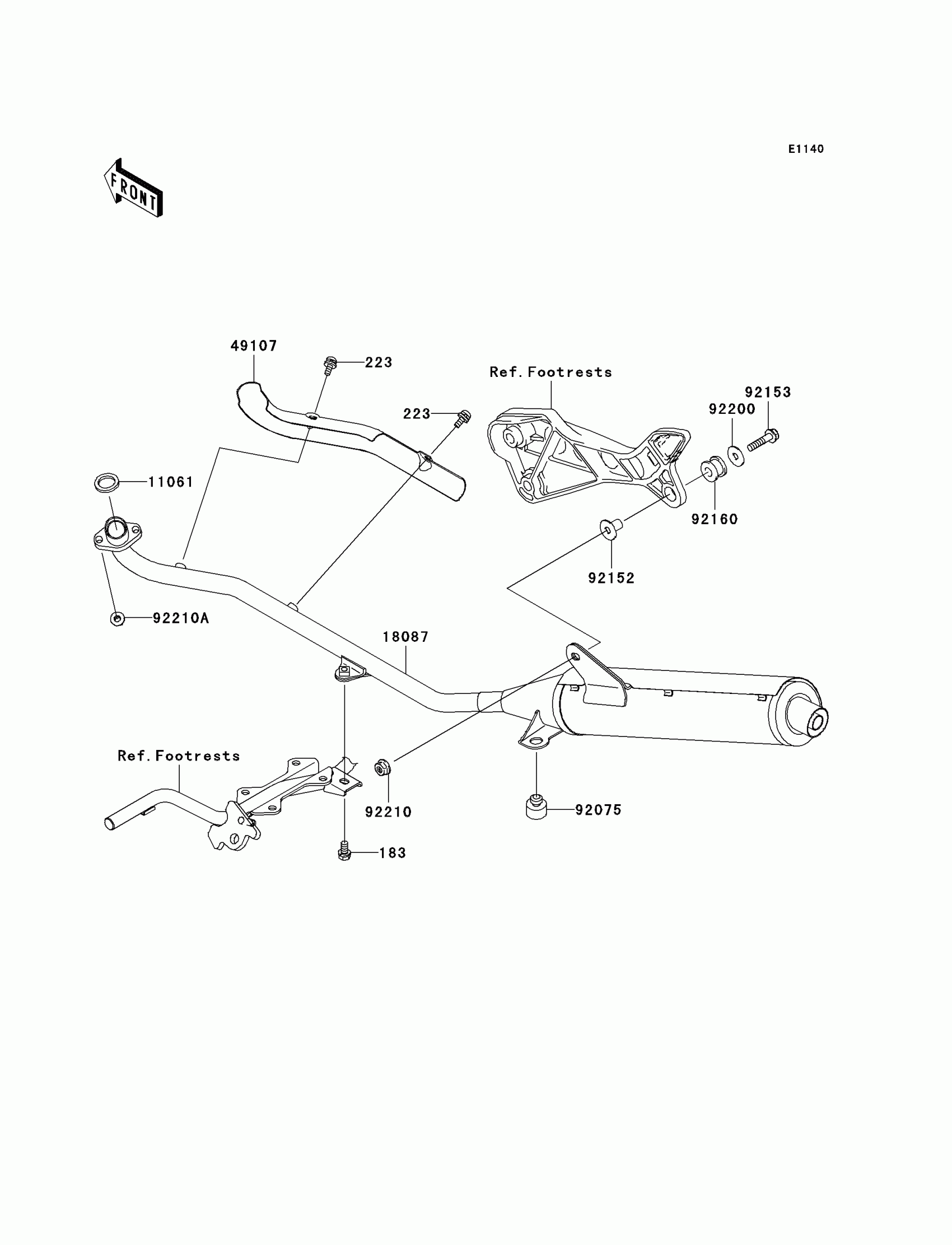

Kawasaki AN112 Muffler(s) Diagram

Description

Price

183

BOLT-UPSET-WS-SMALL,8X16

183BA0816

$4.38

223

SCREW-PAN-WS-CROS,6X10

223AB0610

$4.12

11061

GASKET,EXHAUST PIPE

11061-0183

$4.05

18087

MUFFLER

18087-1177

$174.80

49107

COVER-EXHAUST PIPE

49107-1121

$17.44

92075

DAMPER

92075-015

$5.00

92152

COLLAR

92152-1104

$11.82

92153

BOLT,8X35

92153-1186

$1.15

92160

DAMPER,MUFFLER MOUNT

92160-1116

$5.52

92200

WASHER

92200-1446

$2.03

92210

NUT,8MM

92210-0177

$2.63

92210A

NUT,8MM

92210-0381

$3.46
