Description

Price

130

BOLT-FLANGED,8X35

130BB0835

$4.45

11052

BRACKET,FRONT COVER

11052-1965

$25.06

14091A

COVER,FRONT,EBONY

14091-1414-20A

$20.95

14091B

COVER,STEP THROUGH,FR,F.BLACK

14091-1415-6Z

$6.79

14091C

COVER,STEP THROUGH,RR,F.BLACK

14091-1416-6Z

$6.79

39156

PAD,COWLING

39156-0041

$4.84

55028

COWLING,LEG SHIELD,LH,C.F.RED

55028-1423-14E

$27.08

55028C

COWLING,LEG SHIELD,LH,L.GREEN

55028-1423-777

$27.08

55028D

COWLING,LEG SHIELD,RH,C.F.RED

55028-1424-14E

$27.08

55028G

COWLING,LEG SHIELD,RH,L.GREEN

55028-1424-777

$27.08

92009

SCREW,6X65

92009-1520

$5.07

92009A

SCREW,6X16

92009-1776

$3.16

92009B

SCREW,6X87

92009-1983

$0.88

92015

NUT,5MM

92015-1627

$5.93

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.92

92075

DAMPER

92075-1634

$4.69

92143

COLLAR,L=9.6

92143-1016

$6.22

92152

COLLAR,L=64.8

92152-1364

$2.73

92152A

COLLAR,L=40

92152-1376

$2.28

92160

DAMPER

92160-1864

$3.24

92172

SCREW,6X14

92172-0004

$2.80

92172A

SCREW,5X16

92172-1071

$0.90

92200

WASHER,6.2X18X1.2

92200-1643

$0.72

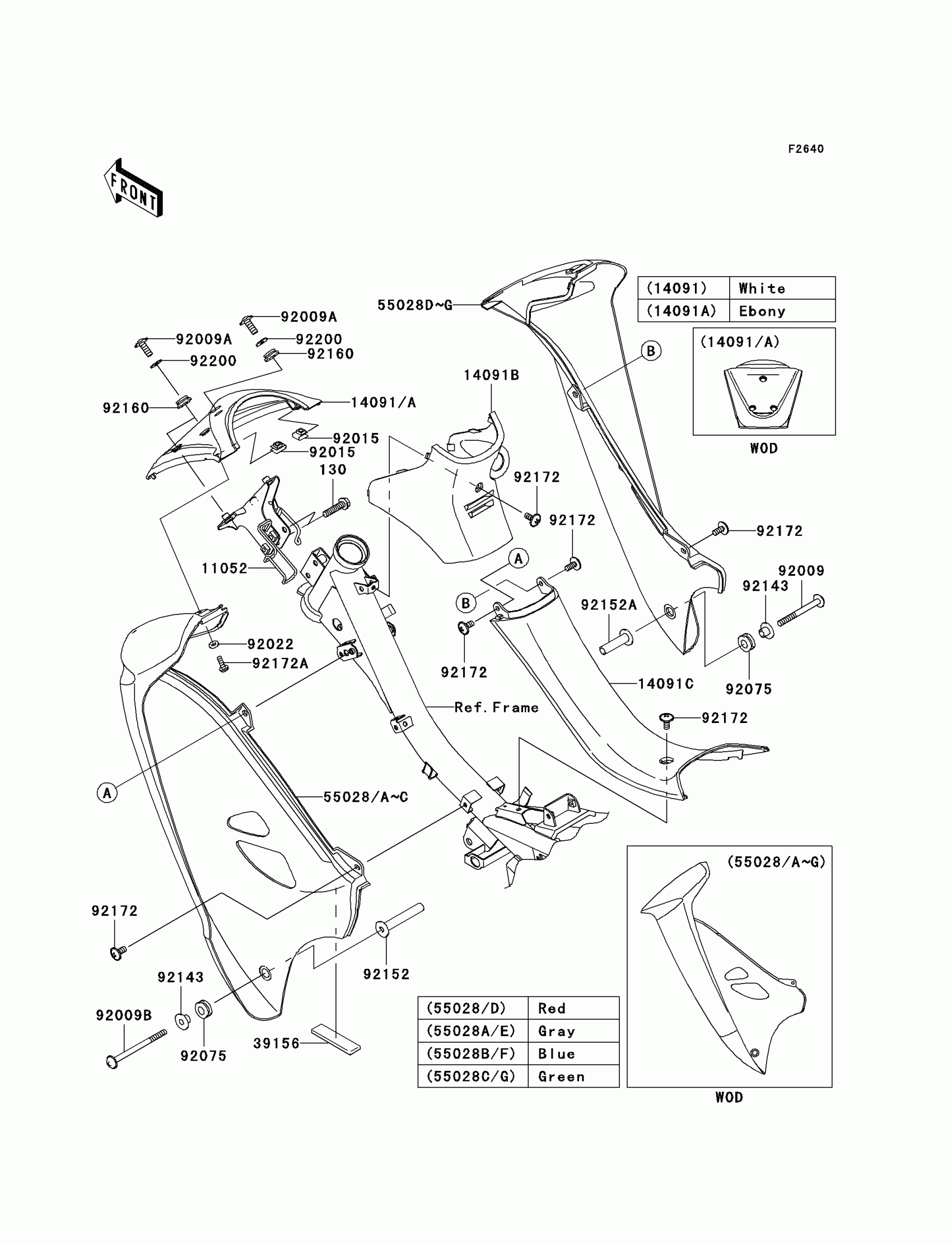

Kawasaki AN112 Leg Shield Diagram

BOLT-FLANGED,8X35

BRACKET,FRONT COVER

COVER,FRONT,EBONY

COVER,STEP THROUGH,FR,F.BLACK

COVER,STEP THROUGH,RR,F.BLACK

PAD,COWLING

COWLING,LEG SHIELD,LH,C.F.RED

COWLING,LEG SHIELD,LH,L.GREEN

COWLING,LEG SHIELD,RH,C.F.RED

COWLING,LEG SHIELD,RH,L.GREEN

SCREW,6X65

SCREW,6X16

SCREW,6X87

NUT,5MM

WASHER,NYLON,5.3X11.5X1.5

DAMPER

COLLAR,L=9.6

COLLAR,L=64.8

COLLAR,L=40

DAMPER

SCREW,6X14

SCREW,5X16

WASHER,6.2X18X1.2
