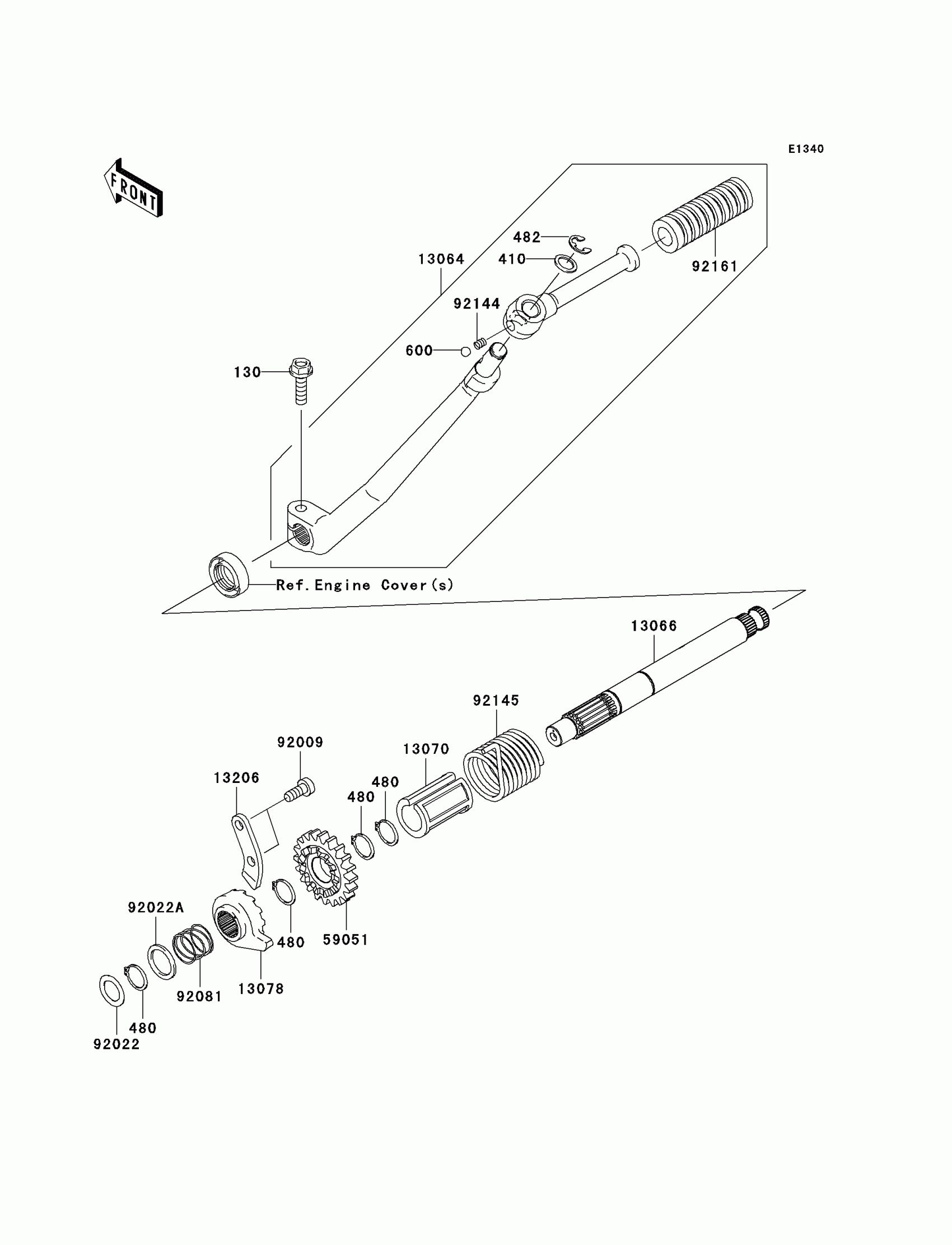

Kawasaki AN112 Kickstarter Mechanism Diagram

Description

Price

130

BOLT-FLANGED,6X22

130CA0622

$2.70

410

WASHER-PLAIN-SMALL,10MM

410AA1000

$0.59

480

CIRCLIP-TYPE-C,16MM

480J1600

$4.31

482

CIRCLIP-TYPE-E,8MM

482EA8000

$0.68

600

BALL-STEEL,1/4

600A0800

$0.62

13064

LEVER-ASSY-KICK

13064-1203

$71.03

13066

SHAFT-KICK

13066-1108

Unavailable

13070

GUIDE,KICK SHAFT

13070-1035

$7.98

13078

RATCHET

13078-1069

$20.65

13206

GUIDE-KICK

13206-1006

$7.98

59051

GEAR-SPUR,KICK STARTER,22T

59051-1404

$32.35

92009

SCREW,TAPPING

92009-1104

$3.57

92022

WASHER,13.2X20X0.5

92022-1224

$4.31

92022A

WASHER,16.8X22X0.5

92022-315

$6.22

92081

SPRING,RATCHET

92081-122

$8.79

92144

SPRING,KICK PEDAL

92144-1791

$0.71

92145

SPRING,KICK STARTER

92145-0482

Unavailable

92161

DAMPER

92161-1250

$1.63
