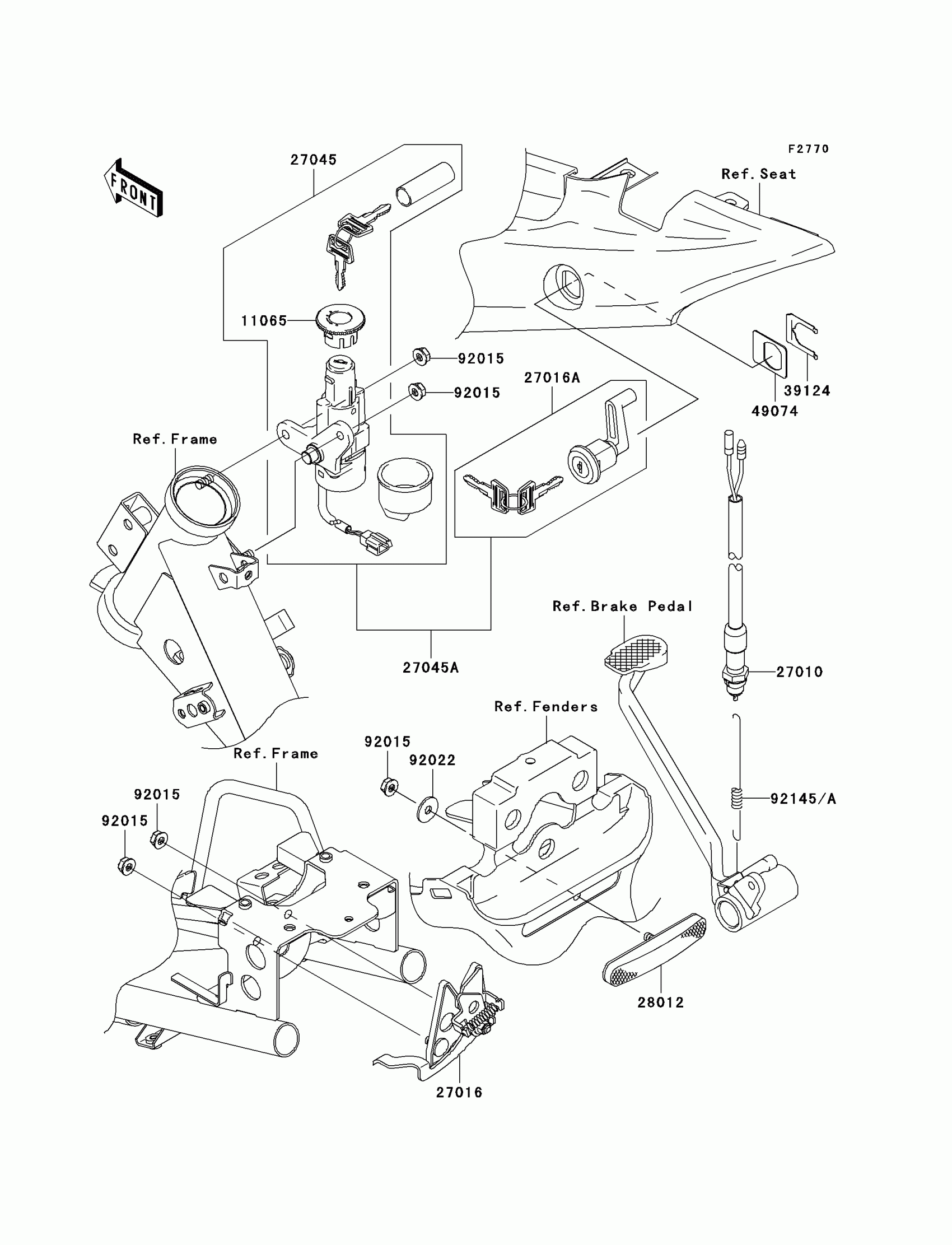

Kawasaki AN112 Ignition Switch Diagram

Description

Price

11065

CAP,IGNITION SWITCH

11065-0149

$10.17

27010

SWITCH,REAR BRAKE

27010-0044

$33.68

27016

LOCK-ASSY,SEAT

27016-0010

$57.73

27016A

LOCK-ASSY,SEAT

27016-5352

$55.52

27045

SWITCH-ASSY

27045-0007

$127.74

27045A

SWITCH-ASSY

27045-5382

$222.68

28012

REFLECTOR-REFLEX

28012-1081

$15.28

39124

SNAP,SEAT LOCK

39124-0002

$1.80

49074

PLATE-THRUST

49074-0001

$2.65

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92022

WASHER,6.5X20X1.6

92022-1557

$1.40

92145

SPRING,REAR BRAKE SWITCH

92145-0250

$5.10

92145A

SPRING,REAR BRAKE SWITCH

92145-0545

$9.74
