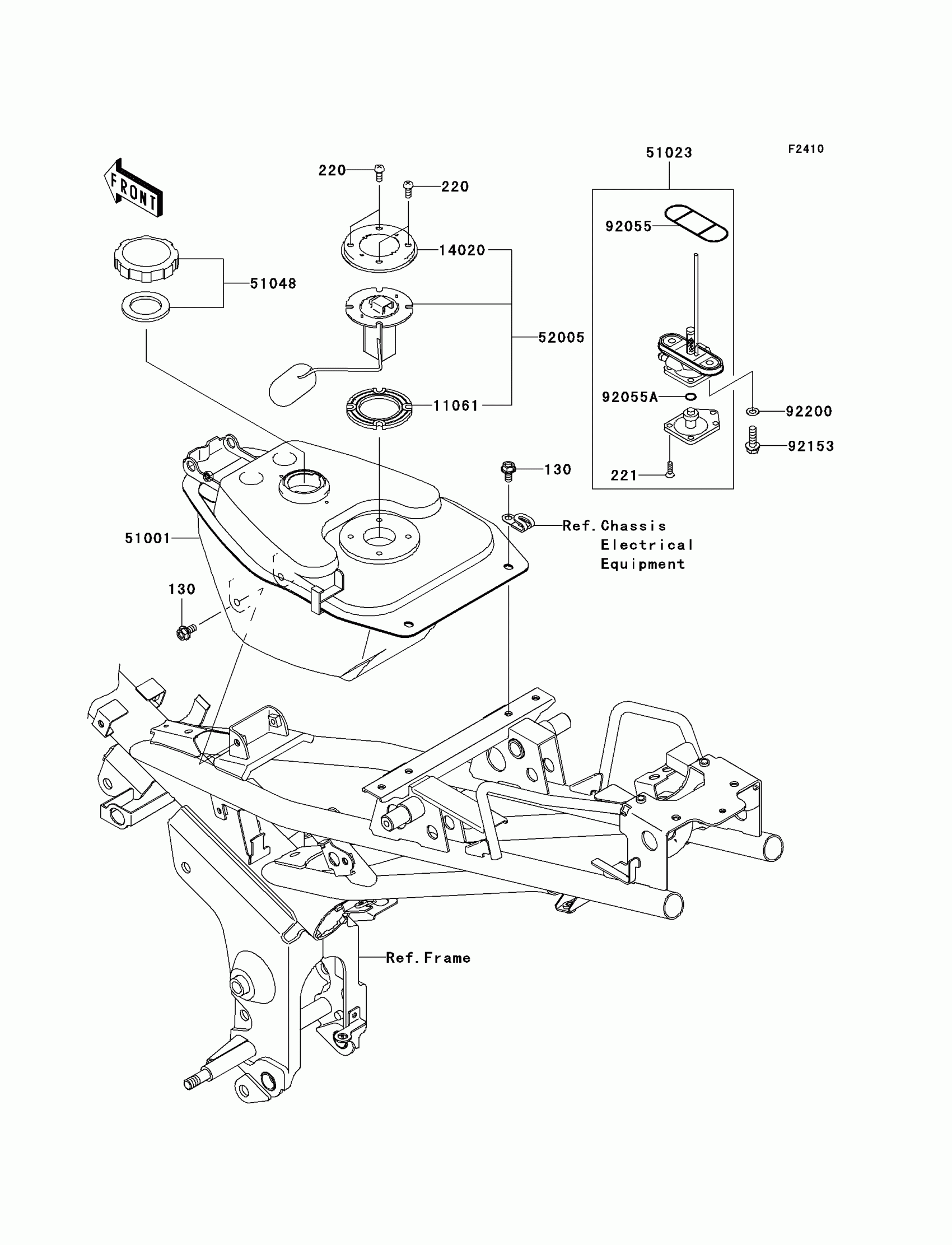

Kawasaki AN112 Fuel Tank Diagram

Description

Price

130

BOLT-FLANGED,6X12

130BB0612

$2.34

220

SCREW-PAN-CROS,5X12

220AA0512

$0.47

221

SCREW-CSK-CROS,4X14

221AA0414

$3.67

11061

GASKET,FUEL GAUGE

11061-1125

$2.68

14020

RETAINER,FUEL GAUGE

14020-0001

$3.27

51001

TANK-COMP-FUEL

51001-0015

$63.70

51023

TAP-ASSY,FUEL

51023-0038

$46.57

51048

CAP-ASSY-TANK

51048-1119

$26.45

52005

GAUGE,FUEL

52005-1150

$36.80

92055

RING-O,FUEL TAP PACKING

92055-1586

$3.91

92055A

RING-O

92055-1664

$5.00

92153

BOLT,FLANGED,6X20

92153-1195

$0.39

92200

WASHER,6.5X11.5X0.8

92200-0177

Unavailable
