Description

Price

44005

PIPE-LEFT FORK OUTER

44005-0036

$226.00

44006

PIPE-RIGHT FORK OUTER

44006-0035

$226.00

44013

PIPE-FORK INNER

44013-1499

$68.31

44023

CYLINDER-SET-FORK

44023-0016

$73.52

44026

SPRING-FRONT FORK

44026-1651

$10.98

44026A

SPRING-FRONT FORK

44026-1770

$15.53

44037

HOLDER-FORK UNDER

44037-0014

$309.41

44044

RING-SNAP,45MM

44044-020

$13.58

44045

GASKET,FORK CYLINDER BOLT

44045-051

$6.16

44071

DAMPER-ASSY,FORK,LH

44071-0243

$423.05

44071A

DAMPER-ASSY,FORK,RH

44071-0244

$423.05

92033

RING-SNAP

92033-1328

$0.40

92048

RACE,STEERING STEM BEARING

92048-1119

$8.96

92049

SEAL-OIL

92049-1432

$16.89

92055

RING-O

92055-1675

$0.40

92093

SEAL,FORK OUTER TUBE

92093-1559

$2.90

92150

BOLT,FLANGED,10X30

92150-1174

$5.78

92150A

BOLT,SOCKET,8X18

92150-1432

$9.91

92200

WASHER

92200-1612

$3.09

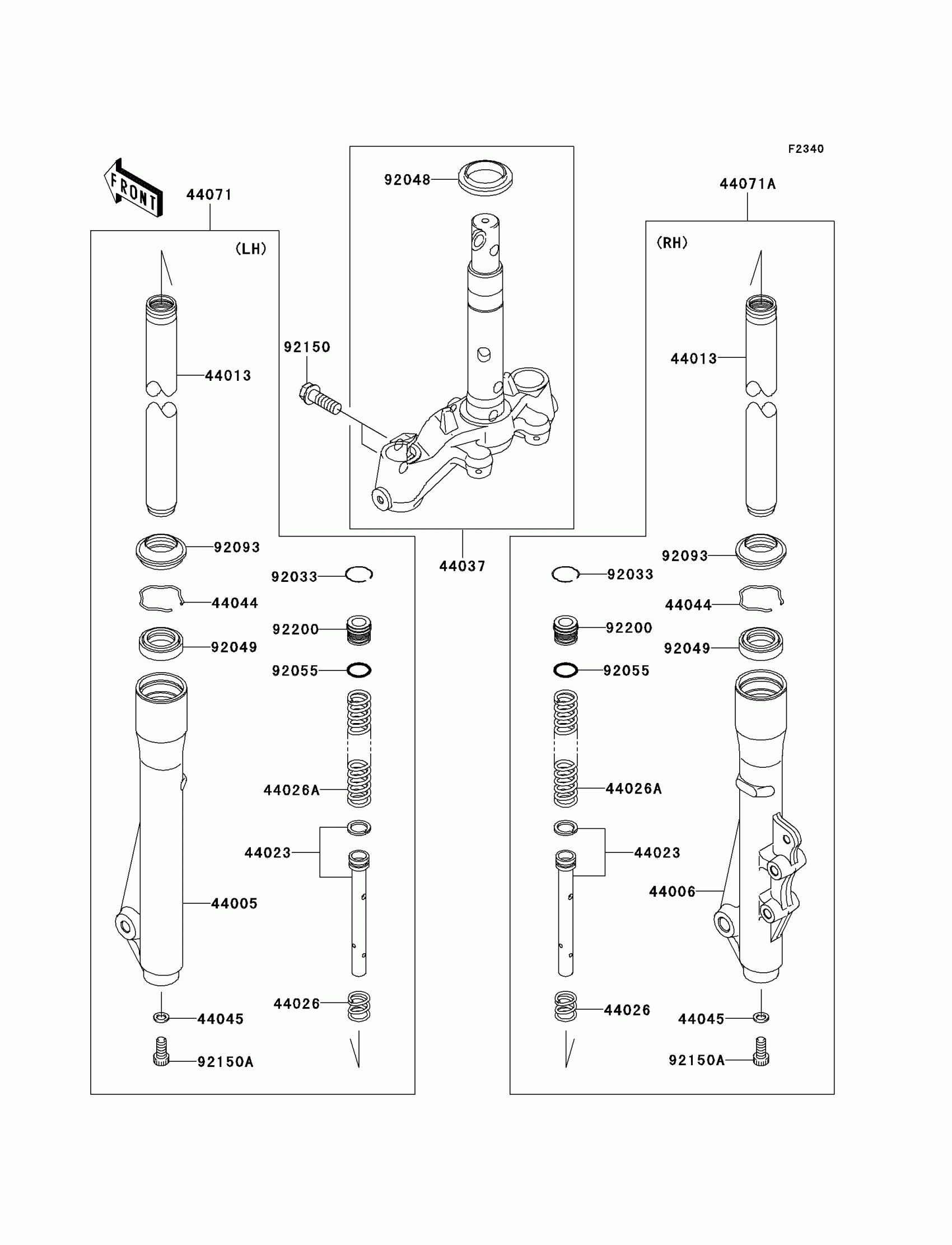

Kawasaki AN112 Front Fork Diagram

PIPE-LEFT FORK OUTER

PIPE-RIGHT FORK OUTER

PIPE-FORK INNER

CYLINDER-SET-FORK

SPRING-FRONT FORK

SPRING-FRONT FORK

HOLDER-FORK UNDER

RING-SNAP,45MM

GASKET,FORK CYLINDER BOLT

DAMPER-ASSY,FORK,LH

DAMPER-ASSY,FORK,RH

RING-SNAP

RACE,STEERING STEM BEARING

SEAL-OIL

RING-O

SEAL,FORK OUTER TUBE

BOLT,FLANGED,10X30

BOLT,SOCKET,8X18

WASHER
