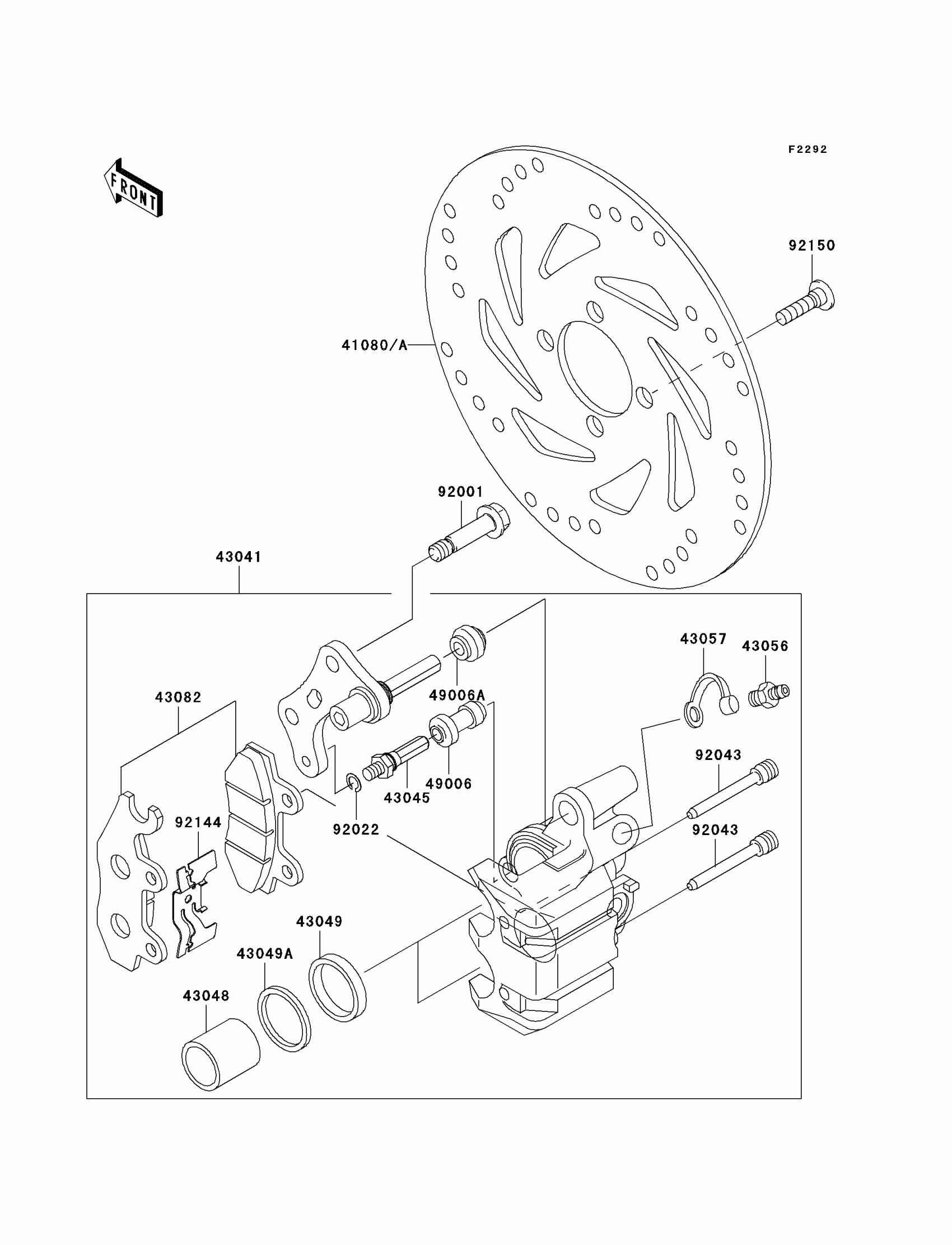

Kawasaki AN112 Front Brake Diagram

Description

Price

41080

DISC,FR,GOLD

41080-0096-CL

$135.28

41080A

DISC,FR,GOLD

41080-0110-CL

$135.28

43041

CALIPER-ASSY,FR,GOLD

43041-1896-8Q

Unavailable

43045

SHAFT-CALIPER

43045-1010

$20.77

43048

PISTON-CALIPER

43048-1066

$73.05

43049

PACKING

43049-1063

$8.03

43049A

PACKING

43049-1064

$6.16

43056

BREATHER-BRAKE

43056-1056

$14.30

43057

CAP-BREATHER

43057-1001

$4.91

43082

PAD-ASSY-BRAKE

43082-1128

$54.87

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

92001

BOLT,FLANGED,8X36

92001-1837

$5.11

92022

WASHER,WAVE

92022-1373

$3.92

92043

PIN,HANGER

92043-1416

$18.57

92144

SPRING,PAD

92144-1847

$30.33

92150

BOLT,8X30

92150-1728

$4.69
