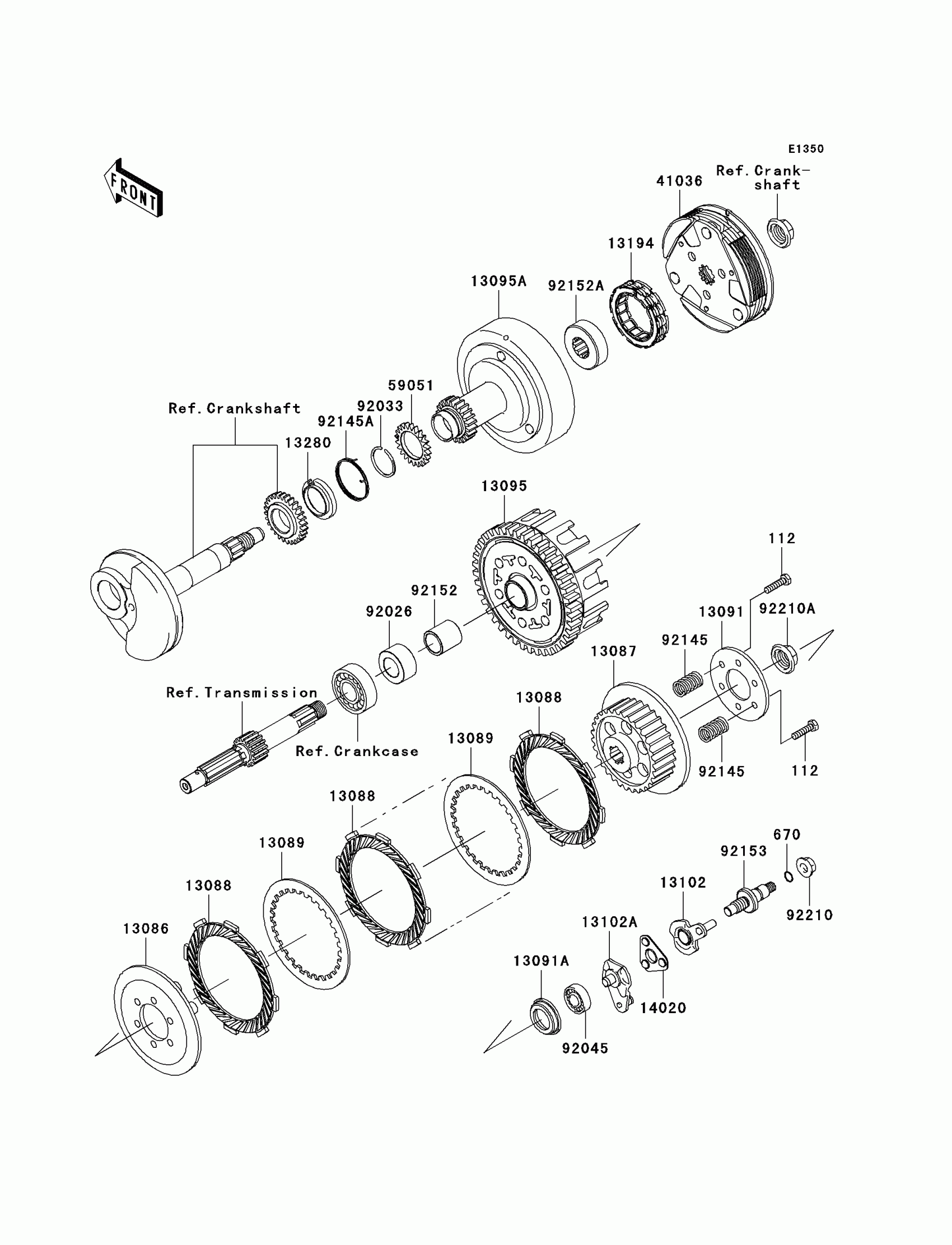

Kawasaki AN112 Clutch Diagram

#

Description
Price

112

BOLT-UPSET,5X20

112BA0520

$5.52

670

O RING,8MM

670B1508

$1.29

13086

WHEEL-CLUTCH

13086-1065

$29.44

13087

HUB-CLUTCH

13087-1151

$40.67

13088

PLATE-FRICTION

13088-1142

$12.53

13089

PLATE-CLUTCH

13089-1087

$12.80

13091

HOLDER,CLUTCH

13091-1782

$7.90

13091A

HOLDER

13091-1787

$12.92

13095

HOUSING-COMP-CLUTCH

13095-1403

$95.50

13095A

HOUSING-COMP-CLUTCH

13095-1422

Unavailable

13102

RELEASE-COMP-CLUTCH

13102-1135

$55.00

13102A

RELEASE-COMP-CLUTCH

13102-1136

$55.00

13194

CLUTCH-ONEWAY

13194-1103

Unavailable

13280

HOLDER,CLUTCH

13280-1250

$0.86

14020

RETAINER

14020-1100

$17.63

41036

HUB-ASSY,CLUTCH

41036-1364

$128.73

59051

GEAR-SPUR,CLUTCH,22T

59051-1403

$5.98

92026

SPACER

92026-1605

$4.20

92033

RING-SNAP,23.5MM

92033-1065

$4.26

92045

BEARING-BALL,#628

92045-1123

$23.34

92145

SPRING,CLUTCH HUB

92145-1456

$1.52

92145A

SPRING,CLUTCH HOLDER

92145-1457

$0.98

92152

COLLAR,17X22X22.7

92152-0393

$16.97

92152A

COLLAR,19X39.9X13

92152-1370

$11.44

92153

BOLT,CLUTCH RELEASE

92153-0525

$10.30

92210

NUT,FLANGED,8MM

92210-0004

$5.38

92210A

NUT,14MM

92210-1374

$9.71
