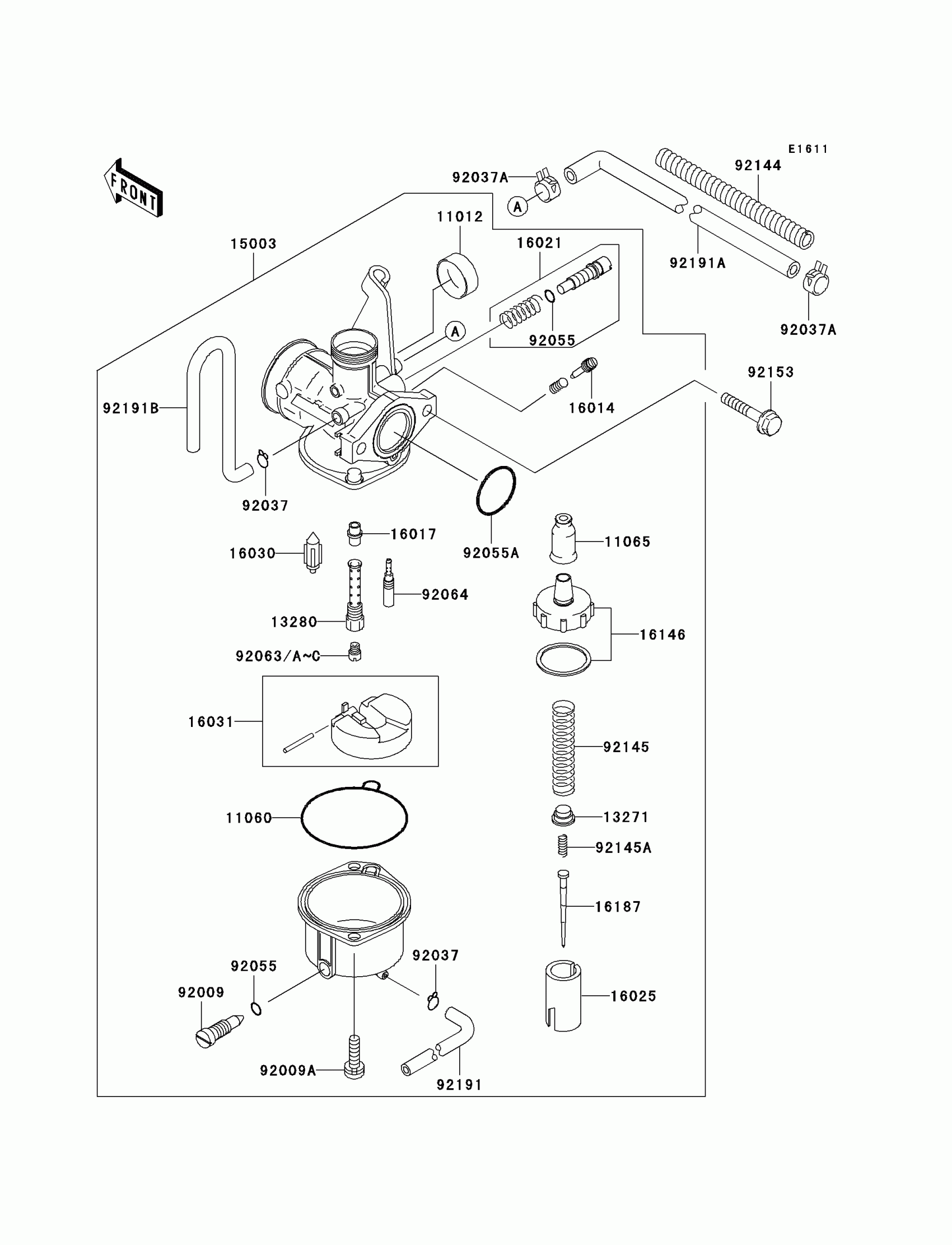

Kawasaki AN112 Carburetor Diagram

#

Description
Price

11012

CAP,CHOKE

11012-1940

Unavailable

11060

GASKET,FLOAT CHAMBER

11060-1700

Unavailable

11065

CAP,TOP COVER

11065-1235

$3.70

13271

PLATE

13271-1668

$7.89

13280

HOLDER,NEEDLE JET

13280-1282

$14.99

15003

CARBURETOR-ASSY

15003-1678

$129.53

16014

SCREW-PILOT AIR

16014-1093

$16.64

16017

JET-NEEDLE

16017-1399

$42.85

16021

SCREW-THROTTLE STOP

16021-1203

$15.87

16025

VALVE-THROTTLE

16025-1225

$74.62

16030

VALVE-FLOAT,FLOAT

16030-0002

Unavailable

16031

FLOAT

16031-1107

$29.06

16146

COVER-ASSY,CARBURETOR TOP

16146-1229

$6.16

16187

NEEDLE-JET,NANL

16187-1175

$27.32

92009

SCREW,DRAIN

92009-1057

$7.84

92009A

SCREW

92009-1750

$4.39

92037

CLAMP,TUBE

92037-1142

$4.31

92037A

CLAMP

92037-1601

$12.92

92055

RING-O

92055-1053

$4.69

92055A

RING-O

92055-1541

$2.78

92063

JET-MAIN,#78

92063-1393

$13.31

92063A

JET-MAIN,#75

92063-1395

$12.56

92063B

JET-MAIN,#80

92063-1396

$12.56

92063C

JET-MAIN,#82

92063-1397

$12.56

92064

JET-PILOT,#35

92064-1204

$7.60

92144

SPRING

92144-1994

$4.14

92145

SPRING,THROTTLE VALVE

92145-1407

$7.88

92145A

SPRING,THROTTLE VALVE PLATE

92145-1408

$1.10

92153

BOLT,FLANGED,6X30

92153-1187

$3.67

92191

TUBE,3.5X6.5X298

92191-1142

$11.66

92191A

TUBE,FUEL

92191-1204

$4.76

92191B

TUBE,3.5X6.5X350

92191-1768

$6.46
