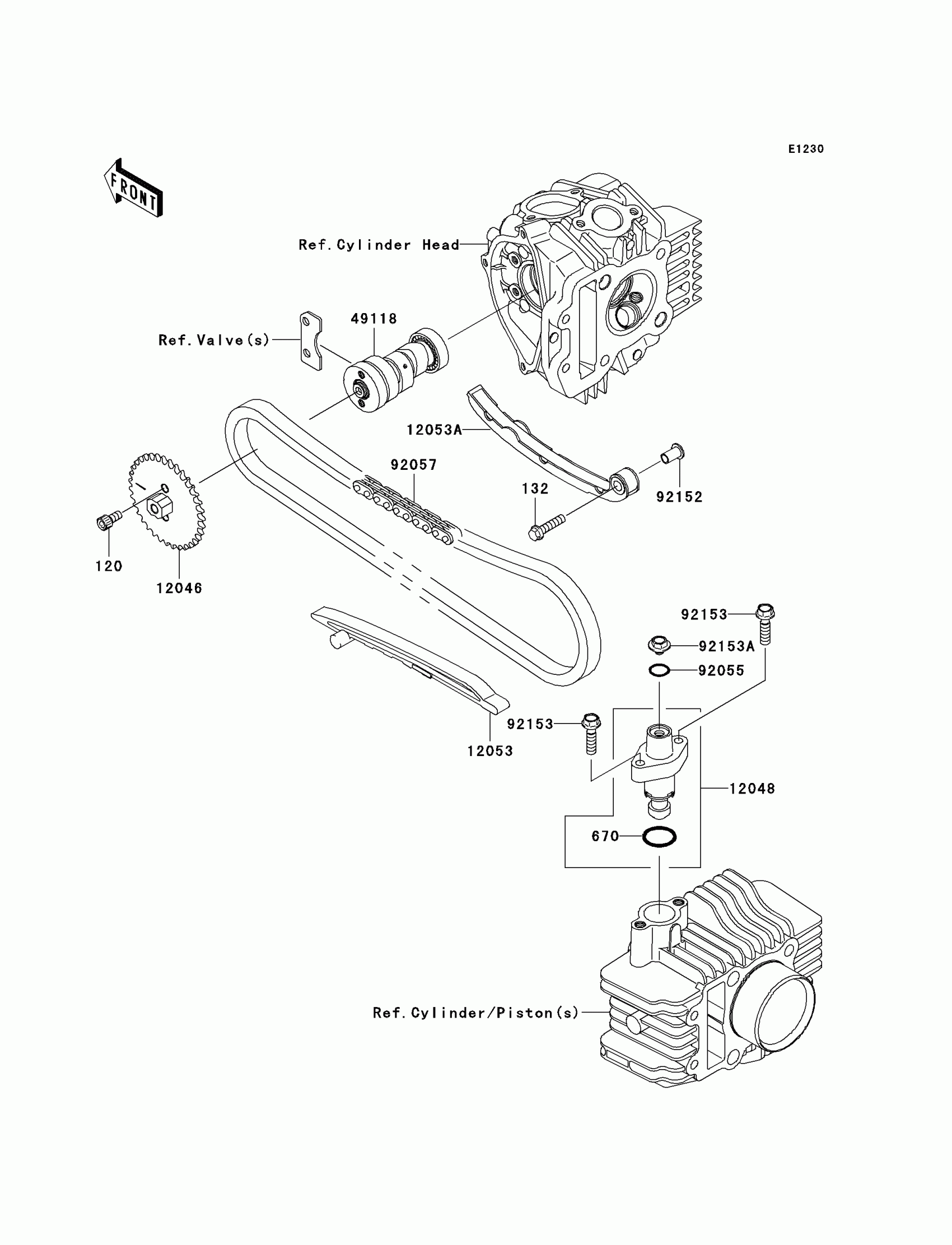

Kawasaki AN112 Camshaft(s)/Tensioner Diagram

Description

Price

120

BOLT-SOCKET,6X12

120CA0612

$1.71

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.80

670

O RING,21MM

670D2021

$6.85

12046

SPROCKET,CAM CHAIN,36T

12046-1206

$33.18

12048

TENSIONER-ASSY

12048-1164

$55.56

12053

GUIDE-CHAIN

12053-0155

$4.22

12053A

GUIDE-CHAIN,LOOSE

12053-1397

Unavailable

49118

CAMSHAFT-COMP

49118-0057

$163.78

92055

RING-O,9.8X2.4

92055-0060

$2.61

92057

CHAIN,CAM

92057-0032

$27.41

92152

COLLAR,CHAIN GUIDE

92152-1369

$2.67

92153

BOLT,6X25

92153-1185

$5.39

92153A

BOLT,TENSIONER

92153-1945

$1.78
