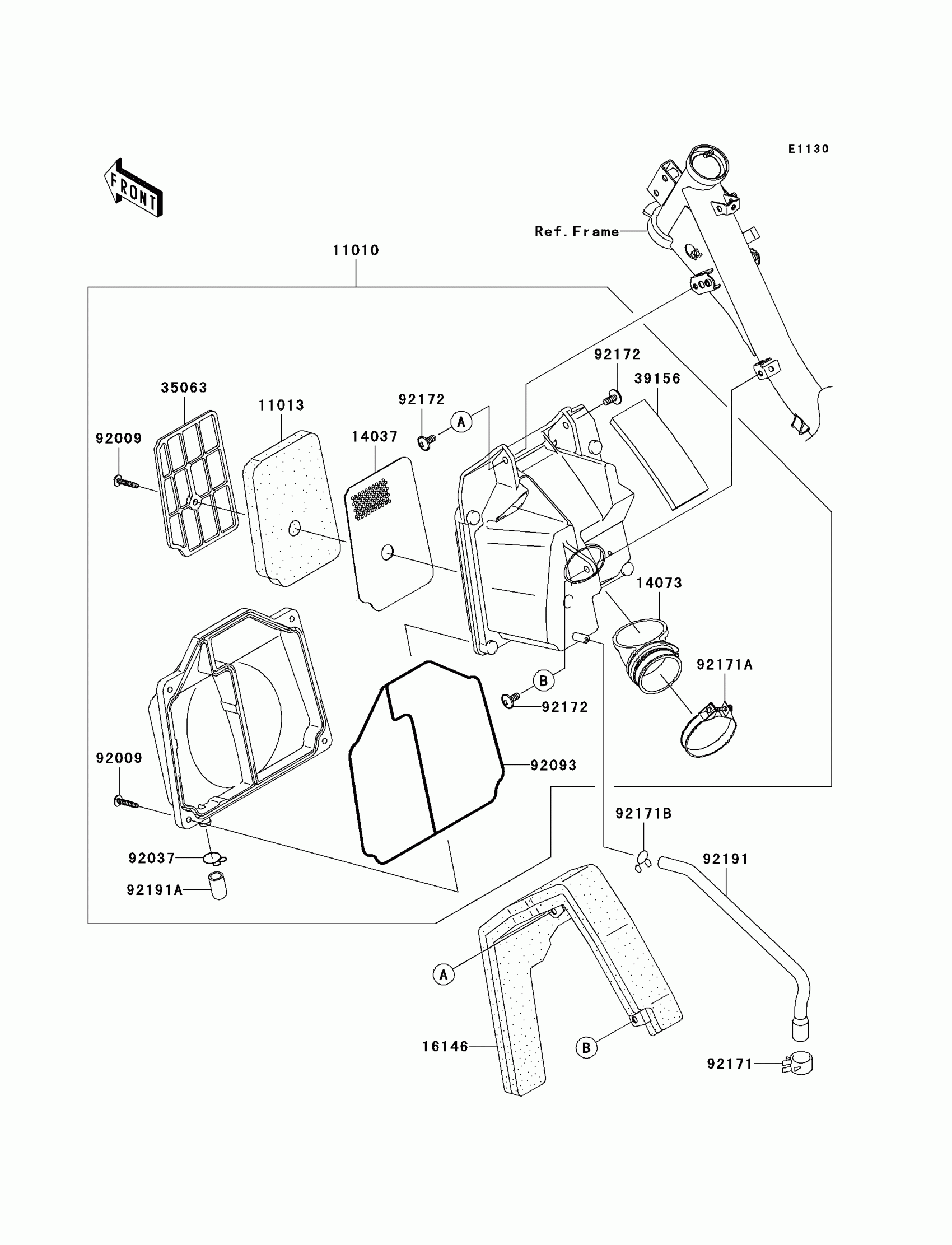

Kawasaki AN112 Air Cleaner Diagram

Description

Price

11010

FILTER-ASSY-AIR

11010-1772

$90.19

11013

ELEMENT-AIR FILTER

11013-1293

$5.08

14037

SCREEN,AIR FILTER

14037-1297

$3.22

14073

DUCT

14073-1810

$5.66

16146

COVER-ASSY,AIR FILTER

16146-1228

$31.96

35063

STAY,AIR FILTER

35063-1210

$3.37

39156

PAD,AIR CLEANER

39156-1696

$1.93

92009

SCREW,5X25

92009-1986

$0.39

92037

CLAMP,14.5MM

92037-1900

$4.87

92093

SEAL,AIR FILTER

92093-1568

$4.97

92171

CLAMP

92171-1055

$4.31

92171A

CLAMP

92171-1436

$3.10

92171B

CLAMP

92171-1521

$2.15

92172

SCREW,6X14

92172-0004

$2.80

92191

TUBE,BREATHER

92191-1684

$3.72

92191A

TUBE,DRAIN

92191-1685

$2.32
