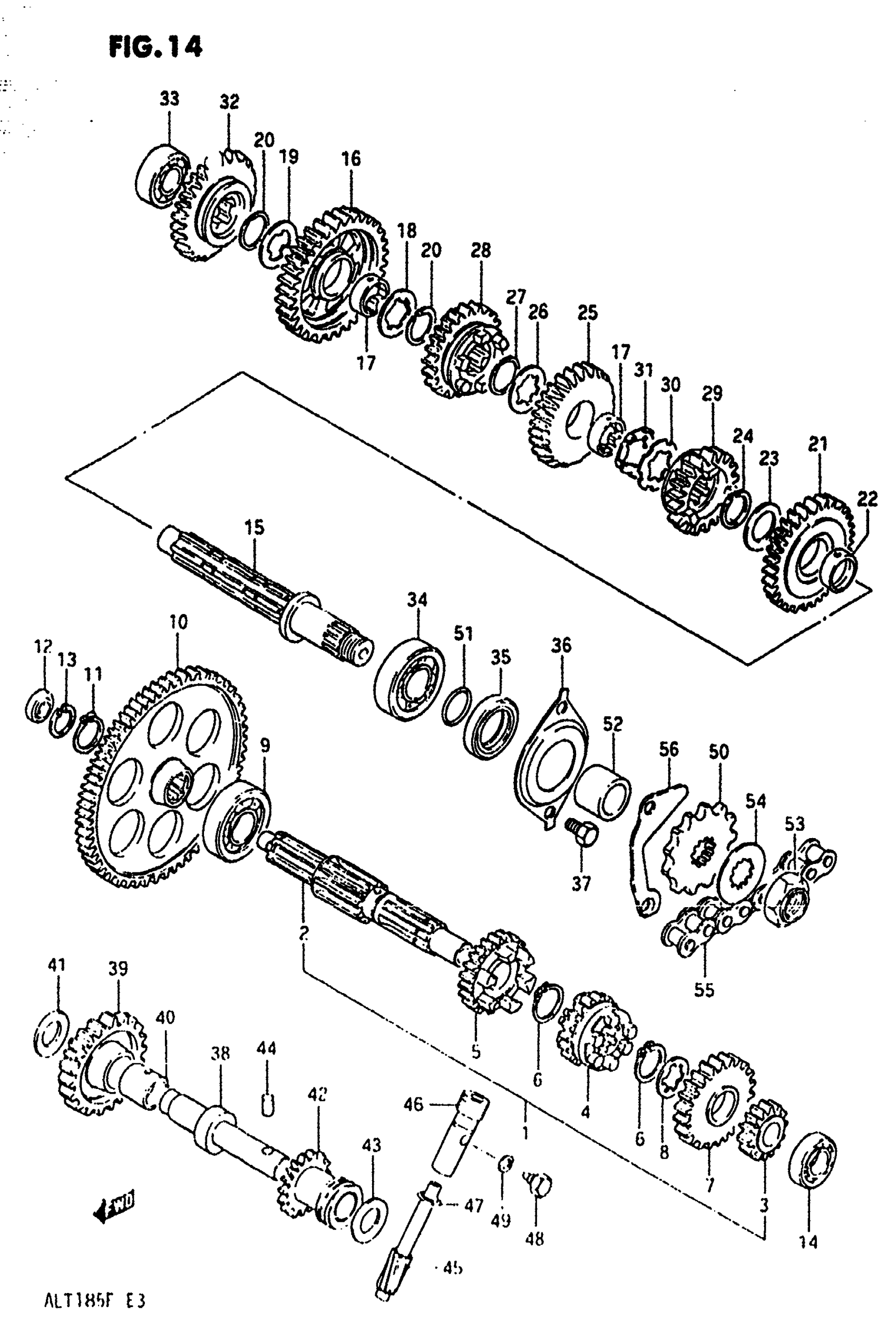

Suzuki ALT185 (1985) TRANSMISSION Diagram

#

Description
Price

1

COUNTER SHAFT ASSY | Includes Item(s) 2 - 8 This part replaces 24120-24403.

24120-24404

Unavailable

2

COUNTER SHAFT (NT:11)

24100-24822

Unavailable

3

GEAR, 2ND DRIVE (NT:14)

24221-24401

Unavailable

4

GEAR, 3RD DRIVE (NT:18)

24231-24405

Unavailable

5

GEAR, 4TH DRIVE (NT:22) This part replaces 24241-24401.

24241-24404

Unavailable

6

CIRCLIP

09380-20007

$2.43

7

GEAR, 5TH DRIVE (NT:25) This part replaces 24251-24401.

24251-24402

Unavailable

8

WASHER

09167-20011

$2.31

9

BEARING, DRIVE SHAFT LH This part replaces 09262-20062.

09262-20069

$23.28

10

GEAR, PRIMARY DRIVEN (NT:71) This part replaces 21211-24300.

21211-24301

Unavailable

11

CIRCLIP, KICK START DRIVE GEAR This part replaces 08331-11209.

08331-3120A

$2.03

12

OIL SEAL

09282-10005

Unavailable

13

CIRCLIP This part replaces 08331-41209.

08331-41206

Unavailable

14

BEARING, LH

08113-60020

$16.01

15

DRIVE SHAFT This part replaces 24131-24401.

24131-24402

Unavailable

16

GEAR, 1ST DRIVEN (NT:38) This part replaces 24311-24401.

24311-24402

Unavailable

17

BUSH This part replaces 24332-24400.

24332-24401

Unavailable

18

LOCK WASHER (L)

09167-22017

Unavailable

19

LOCK WASHER (R)

09167-22016

Unavailable

20

CIRCLIP

09380-22006

$3.10

21

GEAR, 2ND DRIVEN (NT:35)

24321-24401

Unavailable

22

BUSH

09300-22008

$14.82

23

WASHER

08211-22321

$3.85

24

CIRCLIP

09380-22006

$3.10

25

GEAR, 3RD DRIVEN (NT:31)

24331-24402

Unavailable

26

LOCK WASHER

09167-22017

Unavailable

27

CIRCLIP

09380-22006

$3.10

28

GEAR, 4TH DRIVEN (NT:27) This part replaces 24341-24402.

24341-24403

Unavailable

29

GEAR, 5TH DRIVEN (NT:24)

24351-24402

Unavailable

30

LOCK WASHER

09167-22018

Unavailable

31

LOCK WASHER

09169-22004

Unavailable

32

GEAR, REVERSE DRIVEN

24571-24401

Unavailable

33

BEARING, RH

08123-62027

$18.57

34

BEARING, LH

09262-22018

$25.60

35

OIL SEAL

09283-29003

Unavailable

36

RETAINER

24751-18900

Unavailable

37

BOLT This part replaces 01107-06108.

01500-06107

$2.06

38

SHAFT, REVERSE IDLER

24550-24400

Unavailable

39

GEAR, REVERSE IDLER

24561-24401

Unavailable

40

BUSH

09300-17010

Unavailable

41

WASHER, GOVERNOR THRUST This part replaces 08211-15281.

09181-15223

$2.53

42

NO DESCRIPTION AVAILABLE This part replaces 26460-24410.

26460-24411

Unavailable

43

SHIM, CAM CHAIN IDLER,T:1.0 This part replaces 08211-15241.

09181-15166

$2.85

44

PIN This part replaces 06211-04103.

04221-04109

Unavailable

45

GEAR, ODOMETER DRIVEN

26471-24410

Unavailable

46

SLEEVE

26481-24200

Unavailable

47

O RING

09280-10001

$2.02

48

BOLT (6X10) This part replaces 09135-06002.

09135-06501

$3.04

49

WASHER

09168-06004

$1.49

50

SPROCKET, ENGINE (NT:12)

27511-24400

Unavailable

51

O RING

09280-22003

$1.72

52

SPACER

09180-22029

Unavailable

53

NUT

09159-18005

Unavailable

54

LOCK WASHER

09167-22012

$1.54

55

NO DESCRIPTION AVAILABLE This part replaces 27600-24410.

27600-01C10-072

Unavailable

56

PLATE

27641-24400

Unavailable
