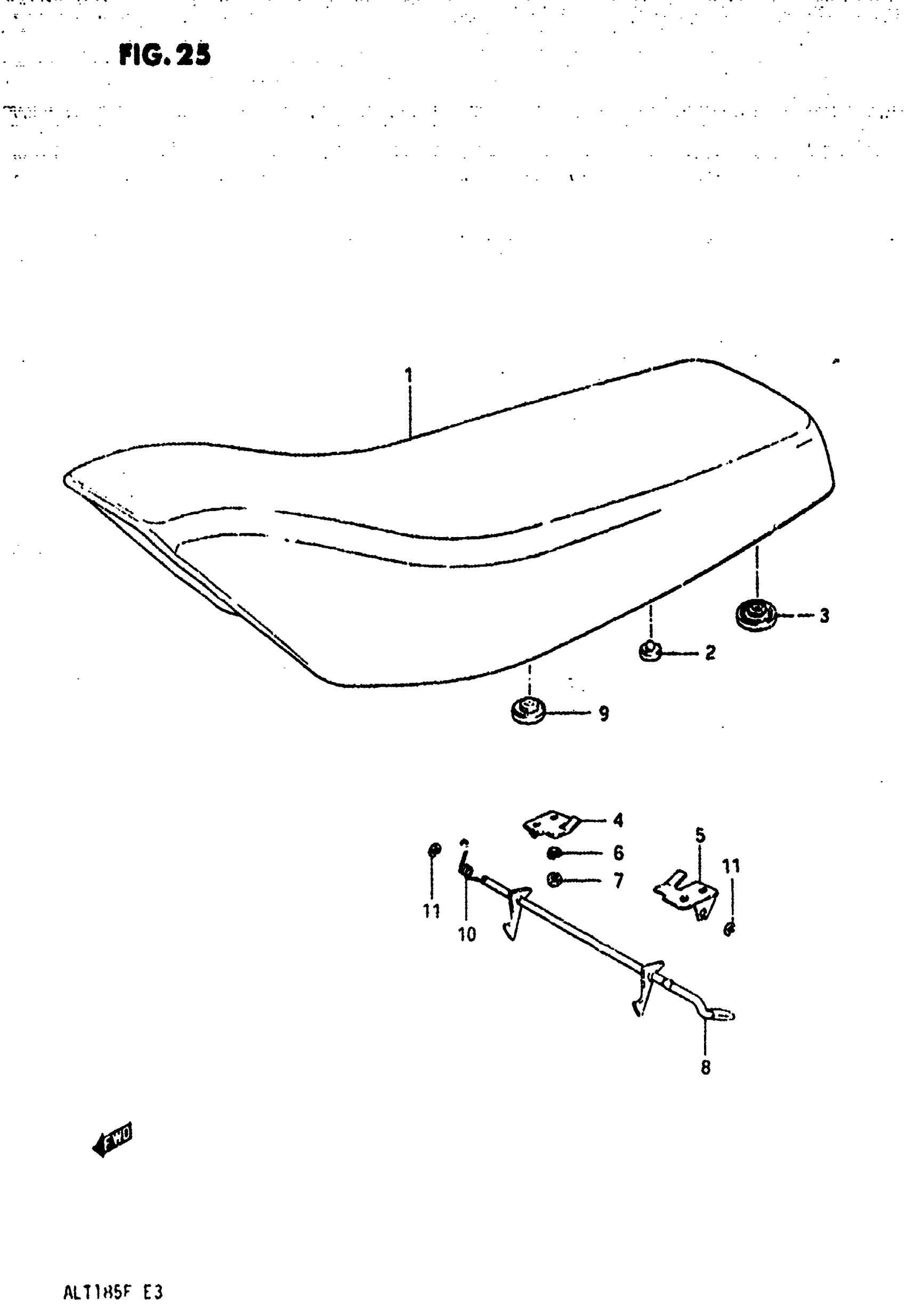

Suzuki ALT185 (1985) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLUE) | Includes Item(s) 2 - 11 This part replaces 45100-24421-48H.

45100-24331-4UZ

Unavailable

2

CUSHION, CENTER

09321-10002

$2.22

3

CUSHION, REER

09321-14005

Unavailable

4

BRACKET, SEAT SUPPORT RH

45221-24301

Unavailable

5

BRACKET, SEAT SUPPORT LH

45222-24301

Unavailable

6

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

7

.NUT This part replaces 08310-11068.

08310-00067

$2.13

8

CLAMP, SEAT

45210-24301

Unavailable

9

CUSHION

45149-24302

Unavailable

10

SPRING

45135-24301

Unavailable

11

CIRCLIP This part replaces 08332-11068.

08332-1106A

$1.49
