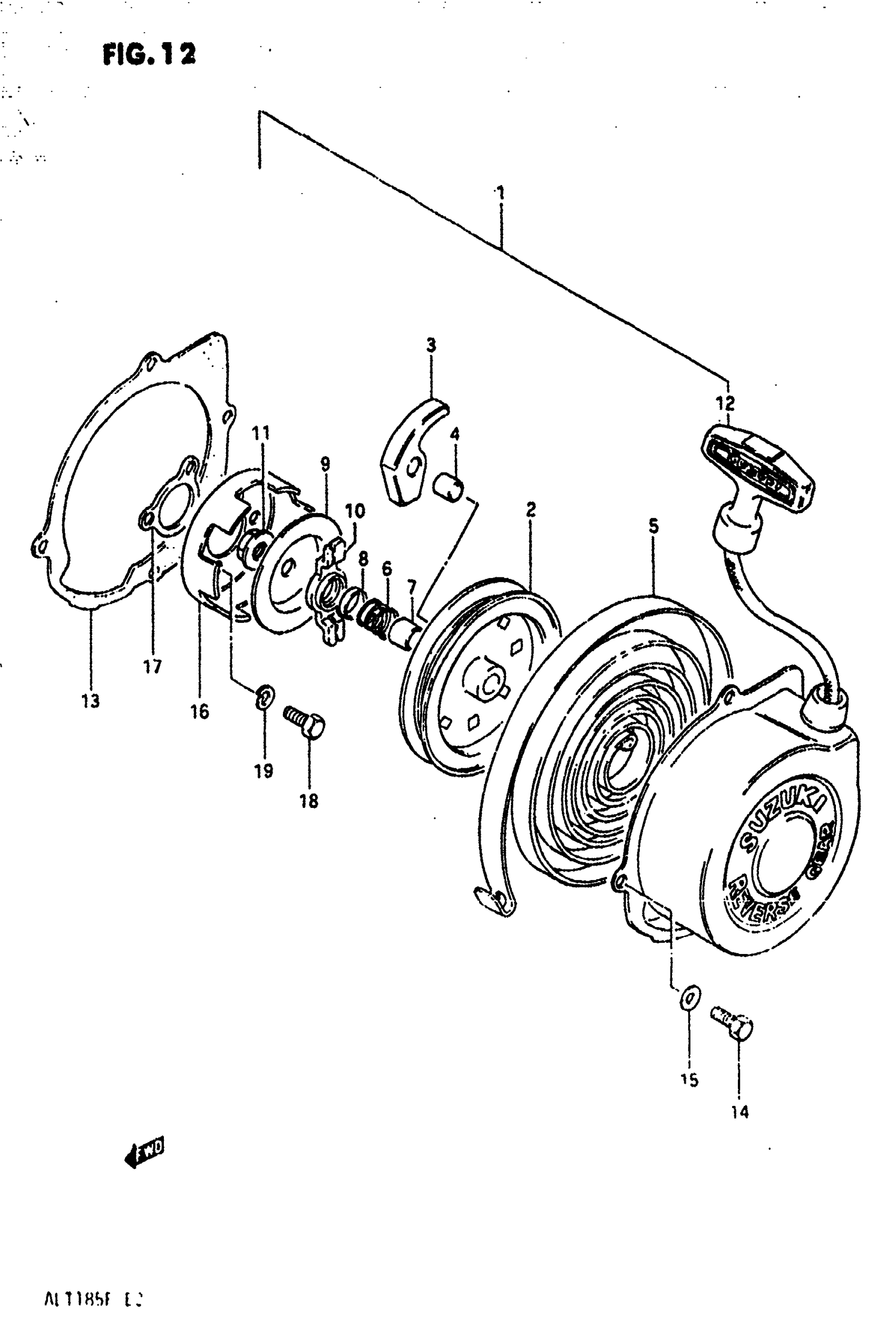

Suzuki ALT185 (1985) RECOIL STARTER Diagram

#

Description
Price

1

STARTER ASSY, RECOIL | Includes Item(s) 2 - 11 This part replaces 18100-24403.

18100-24404

Unavailable

2

REEL

18120-24400

$35.94

3

RATCHET

18131-24411

$8.12

4

PIN, RATCHET

18344-24400

Unavailable

5

.SPRING,SPIRAL

18142-24400

$29.60

6

SPRING, FRICTION

18153-24400

Unavailable

7

SHAFT, SUB

18176-24400

Unavailable

8

COVER, SPRING

18275-24400

Unavailable

9

RATCHET SET This part replaces 18151-24400.

18130-24400

$16.96

10

..GUIDE,RATCHET

18132-24400

$2.92

11

NUT This part replaces 18334-24400.

08316-1006B

$2.50

12

ROPE ASSY

18200-24400

$34.27

13

GASKET

18299-18900

Unavailable

14

BOLT This part replaces 01107-06165.

01500-0616A

$1.78

15

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

16

CUP, STARTER

18411-24401

Unavailable

17

SPACER

18511-24400

Unavailable

18

BOLT This part replaces 01107-06128.

01500-06127

$1.97

19

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
