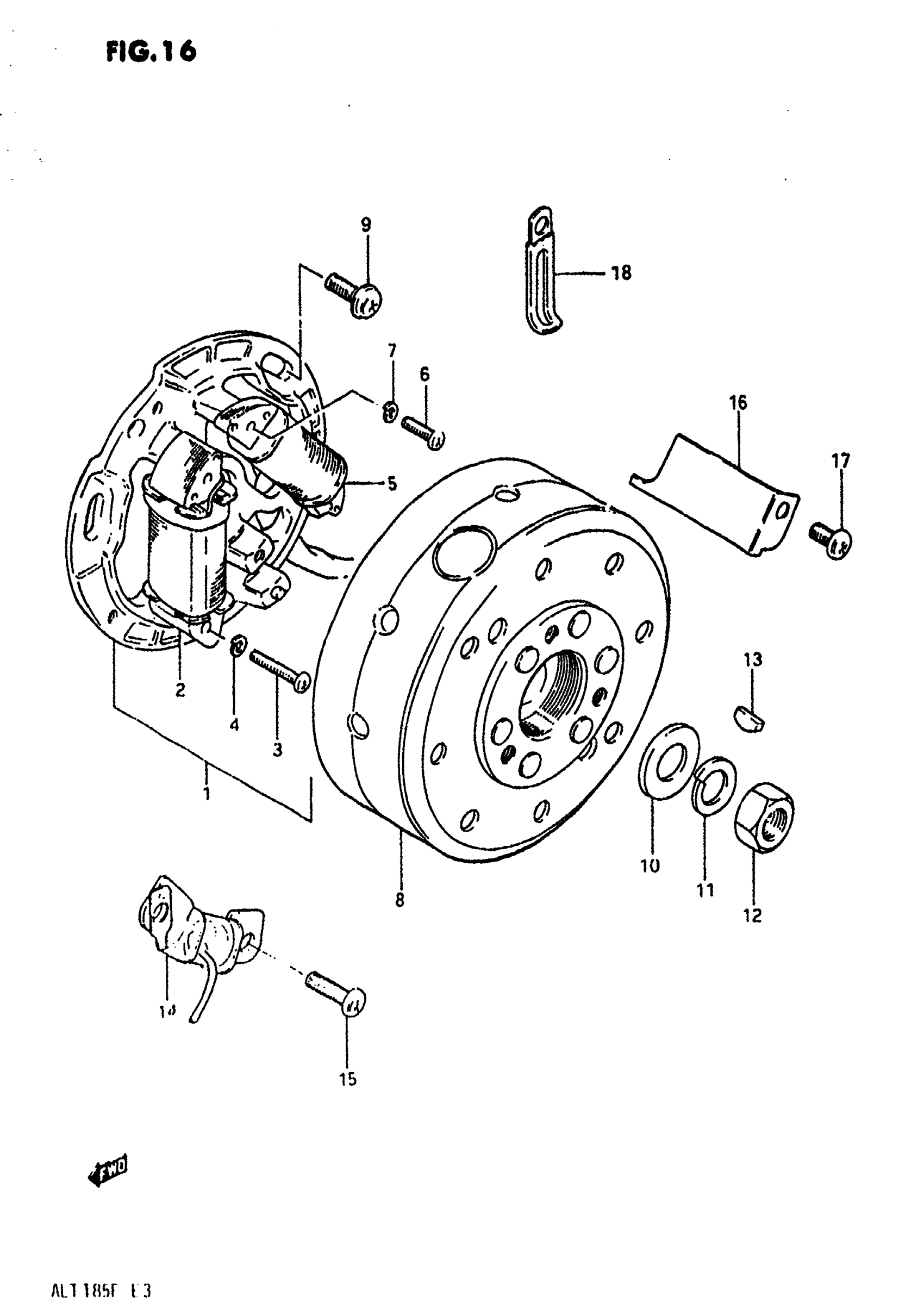

Suzuki ALT185 (1985) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY | Includes Item(s) 2 - 7

32101-24400

Unavailable

2

COIL, LIGHTING

32120-24400

Unavailable

3

SCREW This part replaces 02112-04358.

02112-0435B

Unavailable

4

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

5

COIL, PRIMARY This part replaces 32140-24400.

32140-19A00

Unavailable

6

SCREW This part replaces 02112-04208.

02112-0420A

$1.49

7

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

8

ROTOR

32102-24400

Unavailable

9

SCREW

32395-24300

Unavailable

10

WASHER

09160-10039

$2.26

11

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

12

NUT This part replaces 09140-10003.

09140-10041

$2.38

13

KEY

08341-31039

$1.89

14

COIL ASSY, PICKUP

32160-24310

Unavailable

15

SCREW

09125-05102

$1.61

16

CLAMP, MAGNETO LEAD WIRE

32371-24300

Unavailable

17

SCREW This part replaces 02112-06108.

02112-06107

$1.49

18

CLAMP This part replaces 09404-06412.

09404-06039

$1.74
