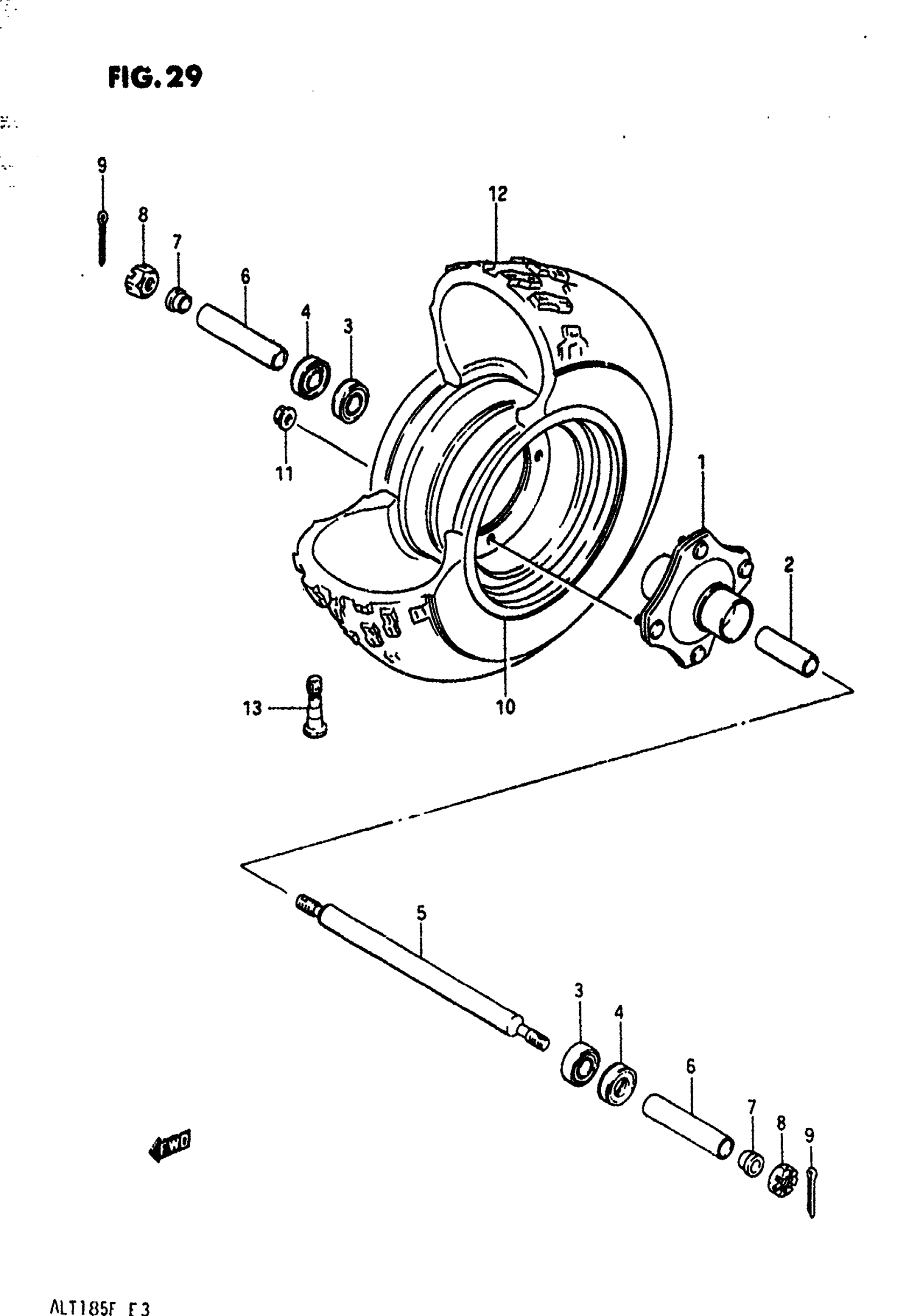

Suzuki ALT185 (1985) FRONT WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 54110-24320.

54110-24321

Unavailable

2

SPACER, FRONT HUB

54731-24300

Unavailable

3

BEARING, FRONT HUB

08120-62037

$21.05

4

DUST SEAL, FRONT HUB

09284-22002

$13.87

5

AXLE, FRONT

54711-24300

Unavailable

6

SPACER, FRONT AXLE

54741-24300

Unavailable

7

SPACER, FRONT AXLE NUT

54771-24200

Unavailable

8

NUT This part replaces 08314-31126.

08314-3112A

$2.41

9

PIN This part replaces 04111-30308.

04111-3030A

$1.49

10

RIM, WHEEL (SILVER) This part replaces 65310-24401-13T.

65310-24401-13L

Unavailable

11

NUT This part replaces 08316-16106.

08316-1010B

$2.66

12

TIRE, FRONT (22x1.100-8) | DUNLOP

55100-24355

Unavailable

13

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25
