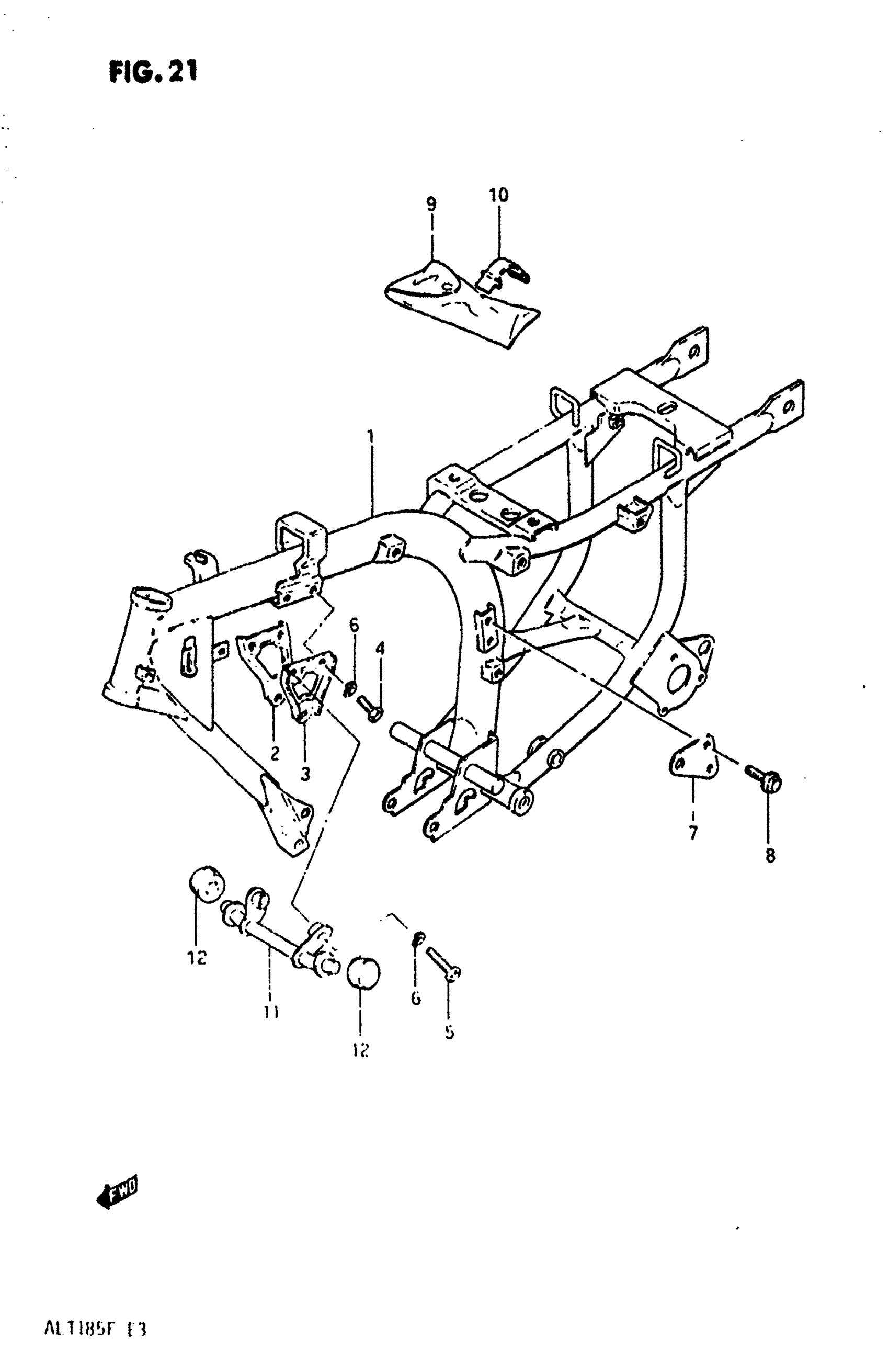

Suzuki ALT185 (1985) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-24350-019

Unavailable

2

PLATE, MOUNTING FRONT RH

41911-24300

Unavailable

3

PLATE, MOUNTING FRONT LH

41912-24300

Unavailable

4

BOLT This part replaces 01107-08128.

01500-08127

$2.62

5

BOLT This part replaces 01107-08206.

01500-0820A

$2.28

6

LOCK WASHER This part replaces 08321-21086.

08321-0108A

$1.84

7

PLATE, MOUNTING REAR

41921-24300

Unavailable

8

BOLT (8X12) This part replaces 01517-08125.

01550-0812A

$2.32

9

TOOL ASSY This part replaces 09800-00236.

09800-21075

$44.50

10

BAND This part replaces 09462-00072.

09462-00094

$3.16

11

SUPPORT, FRAME COVER

47150-24300

Unavailable

12

CUSHION

09329-10014

Unavailable
