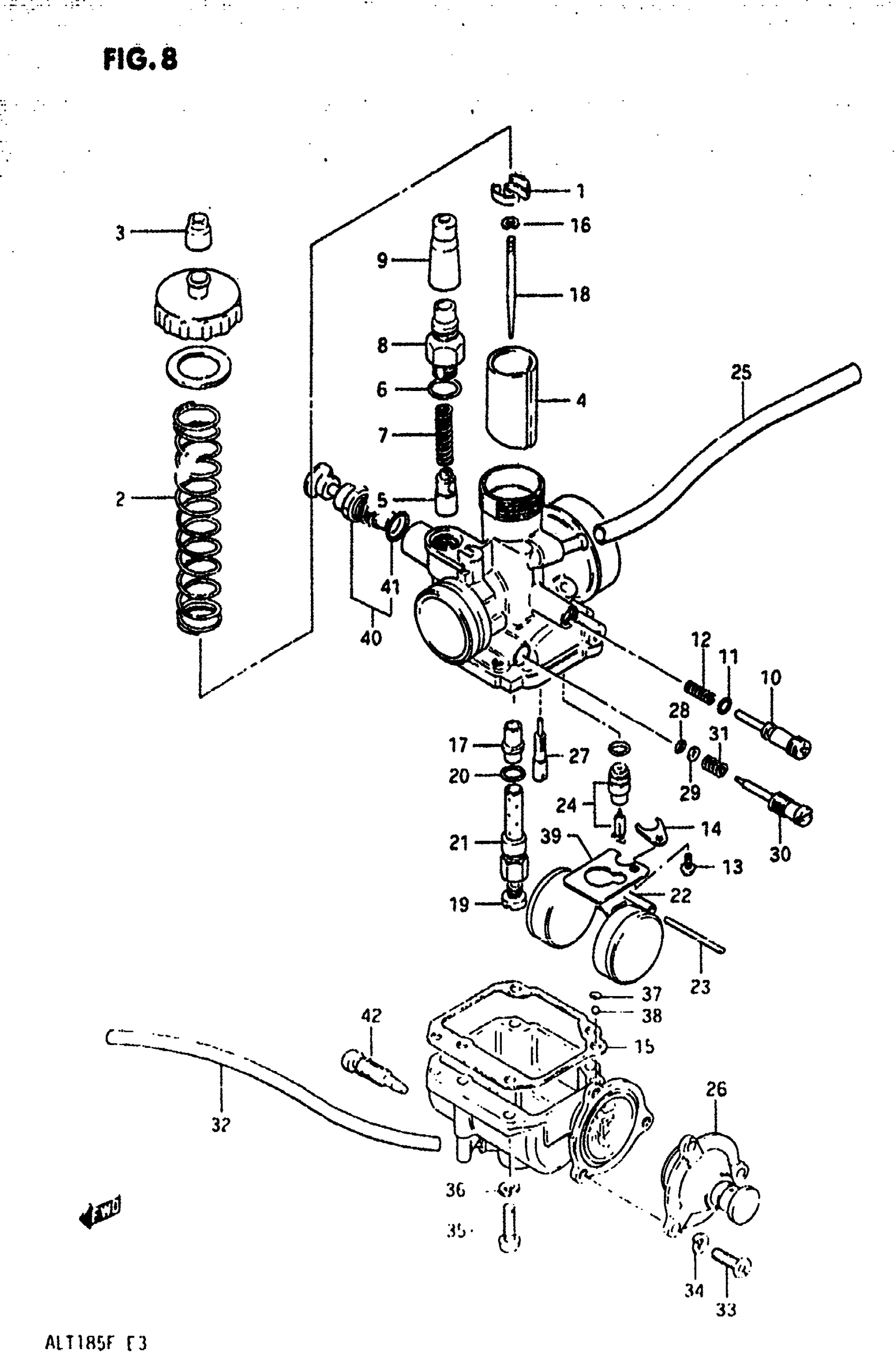

Suzuki ALT185 (1985) CARBURETOR Diagram

#

Description
Price

0

CARBURETOR ASSY | Includes Item(s) 1 - 42 This part replaces 13200-24400.

13200-24401

Unavailable

1

SPRING, SEAT

13581-36212

$7.80

2

SPRING This part replaces 13573-18900.

13573-18901

$9.33

3

.CAP This part replaces 13681-04010.

13681-04011

$4.93

4

VALVE, THROTTLE This part replaces 13551-24400.

13551-18910

Unavailable

5

PLUNGER

13411-18910

$20.06

6

O RING

13278-02330

$2.82

7

SPRING

13417-01010

$4.62

8

CAP

13681-33010

$9.32

9

CAP, PLUNGER

13418-02330

$11.38

10

SCREW This part replaces 13267-18910.

13267-24500

$10.55

11

O RING

13295-33010

$4.48

12

SPRING This part replaces 13268-95110.

13268-35010

$4.48

13

SCREW This part replaces 02112-03068.

02112-0306B

$1.59

14

PLATE

13373-46710

$6.17

15

GASKET

13251-18900

Unavailable

16

CLIP, NEEDLE This part replaces 13415-47070.

13394-10010

$5.45

17

JET, NEEDLE (0-2)

09494-00436

$30.38

18

NEEDLE, JET (5115-3)

13383-24400

Unavailable

19

JET, MAIN (115)

09491-23011

$9.63

20

.O RING This part replaces 13246-43010.

13246-43011

$4.34

21

PIPE, BLEEDER This part replaces 13385-18910.

13385-18911

Unavailable

22

FLOAT This part replaces 13252-18900.

13250-05230

$26.91

23

.PIN, FLOAT

13254-01010

$3.62

24

NEEDLE VALVE ASSY

13370-24400

Unavailable

25

HOSE,5X10X600 This part replaces 13683-11420.

44421-13ER0

$10.06

26

PRIMING SET

13234-18910

$66.46

27

JET, PILOT (20)

09492-20009

$14.85

28

O-RING This part replaces 13278-44080.

13295-29901

$4.34

29

WASHER This part replaces 13277-44080.

13291-29900

$1.98

30

SCREW, PILOT (2 7/8) This part replaces 13269-44200.

13279-47070

$13.36

31

.SPRING (NT:45)

13268-47070

$4.34

32

.HOSE (3X7X600) This part replaces 13684-18900.

09355-30001-600

$8.56

33

SCREW This part replaces 02112-04108.

02112-04107

$1.55

34

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

35

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

36

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

37

CLIP

13232-18900

Unavailable

38

BALL,VALVE This part replaces 13596-18900.

13322-84000

Unavailable

39

PLATE

13259-18900

$7.53

40

PLUNGER ASSY, STARTER

13439-18911

$51.93

41

O RING

13278-02330

$2.82

42

SCREW This part replaces 13247-18910.

13247-24500

Unavailable
