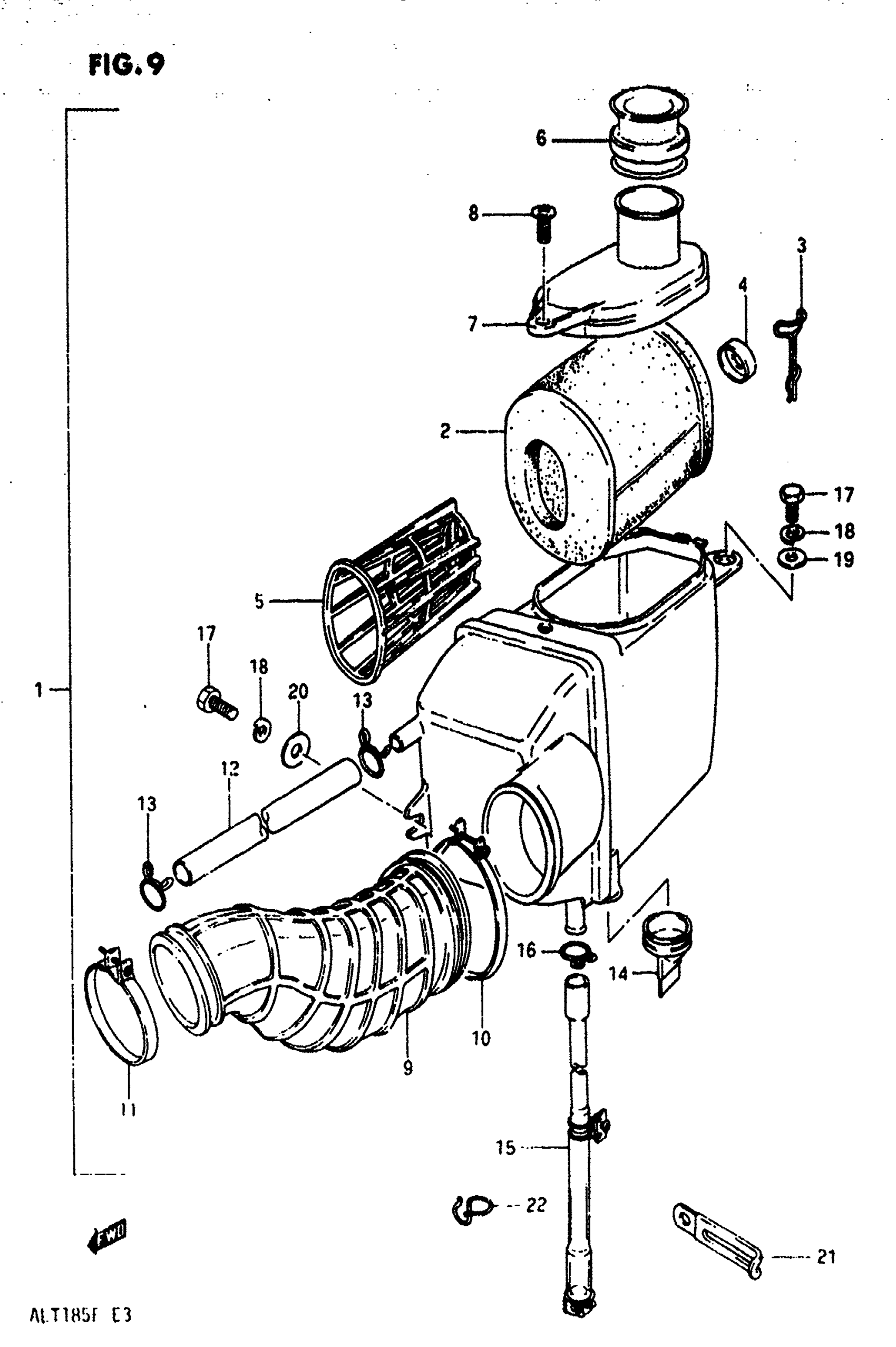

Suzuki ALT185 (1985) AIR CLEANER Diagram

#

Description
Price

1

SUPERCEEDED BY 13700-18923 | Includes Item(s) 2 - 16 This part replaces 13700-18921.

13700-18922

$59.32

2

FILTER

13780-18920

Unavailable

3

SNAP PIN

13823-20400

$3.00

4

WASHER

13796-20400

$2.99

5

HOLDER

13791-18900

Unavailable

6

GUIDE, INLET

13893-18920

Unavailable

7

CAP

13740-18920

Unavailable

8

SCREW

02142-06167

$1.49

9

HOSE, OUTLET

13881-18900

Unavailable

10

CLAMP

13826-18912

Unavailable

11

CLAMP This part replaces 09402-48207.

09402-48208

$4.64

12

NO DESCRIPTION AVAILABLE This part replaces 13851-18910.

13850-18911

Unavailable

13

CLIP This part replaces 13828-37300.

09401-16401

$3.14

14

HOSE, DRAIN (1)

13873-18900

Unavailable

15

NO DESCRIPTION AVAILABLE This part replaces 13870-00220.

13870-18910

Unavailable

16

CLIP

09401-14301

$2.35

17

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

18

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

19

WASHER This part replaces 08322-21068.

08322-01067

$2.13

20

WASHER This part replaces 09160-06006.

09160-06084

$1.78

21

CLAMP This part replaces 09404-06412.

09404-06039

$1.74

22

CLIP, DRAIN HOSE This part replaces 13821-18901.

13821-18902

Unavailable
