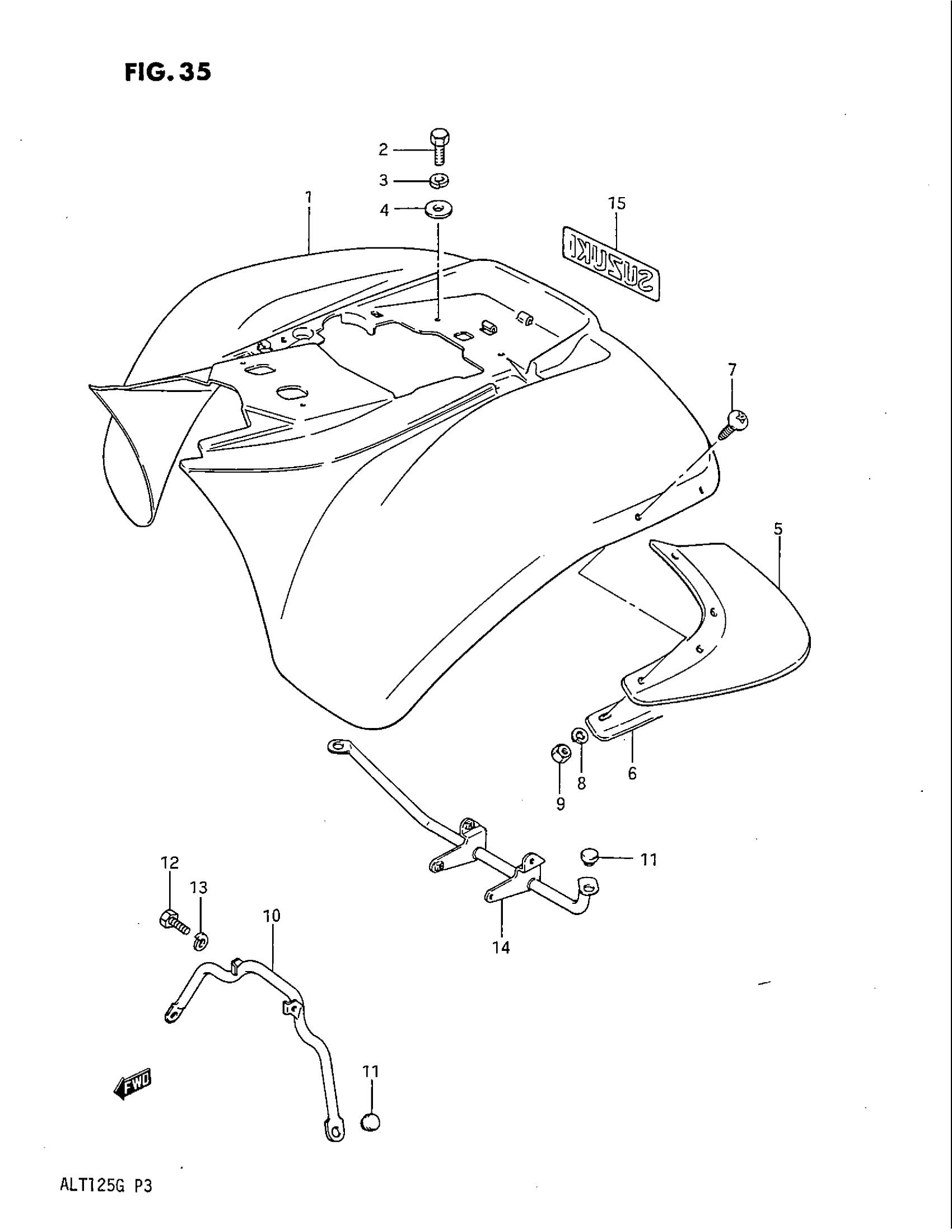

Suzuki ALT125 (1986) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR (WINNING ORANGE) | MODEL F This part replaces 63111-24305-00N.

63111-24305-25G

Unavailable

1

FENDER, REAR (WINNING ORANGE) | MODEL G

63111-24305-25G

Unavailable

2

BOLT This part replaces 01107-06128.

01500-06127

$1.97

3

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

4

WASHER This part replaces 09160-06007.

09160-06084

$1.78

5

MUD GUARD, REAR FENDER

63331-24300

Unavailable

6

PLATE, MUADGUARD

63332-24300

Unavailable

7

SCREW

02142-06167

$1.49

8

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

9

.NUT This part replaces 08310-11068.

08310-00067

$2.13

10

REINFORCEMENT, FRONT

63120-24301

Unavailable

11

CAP (OD:20) This part replaces 09250-12010.

09250-12016

$1.92

12

BOLT This part replaces 01107-06126.

01500-0612A

$1.78

13

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

14

REINFORCEMENT, REAR

63130-18901

Unavailable

15

EMBLEM | MODEL G

68112-18901-7ZP

Unavailable
