1986 Suzuki ALT125 Oil Pump - Fuel Pump Diagram

← All diagrams

Find the part on the Oil Pump - Fuel Pump diagram for your 1986 Suzuki ALT125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

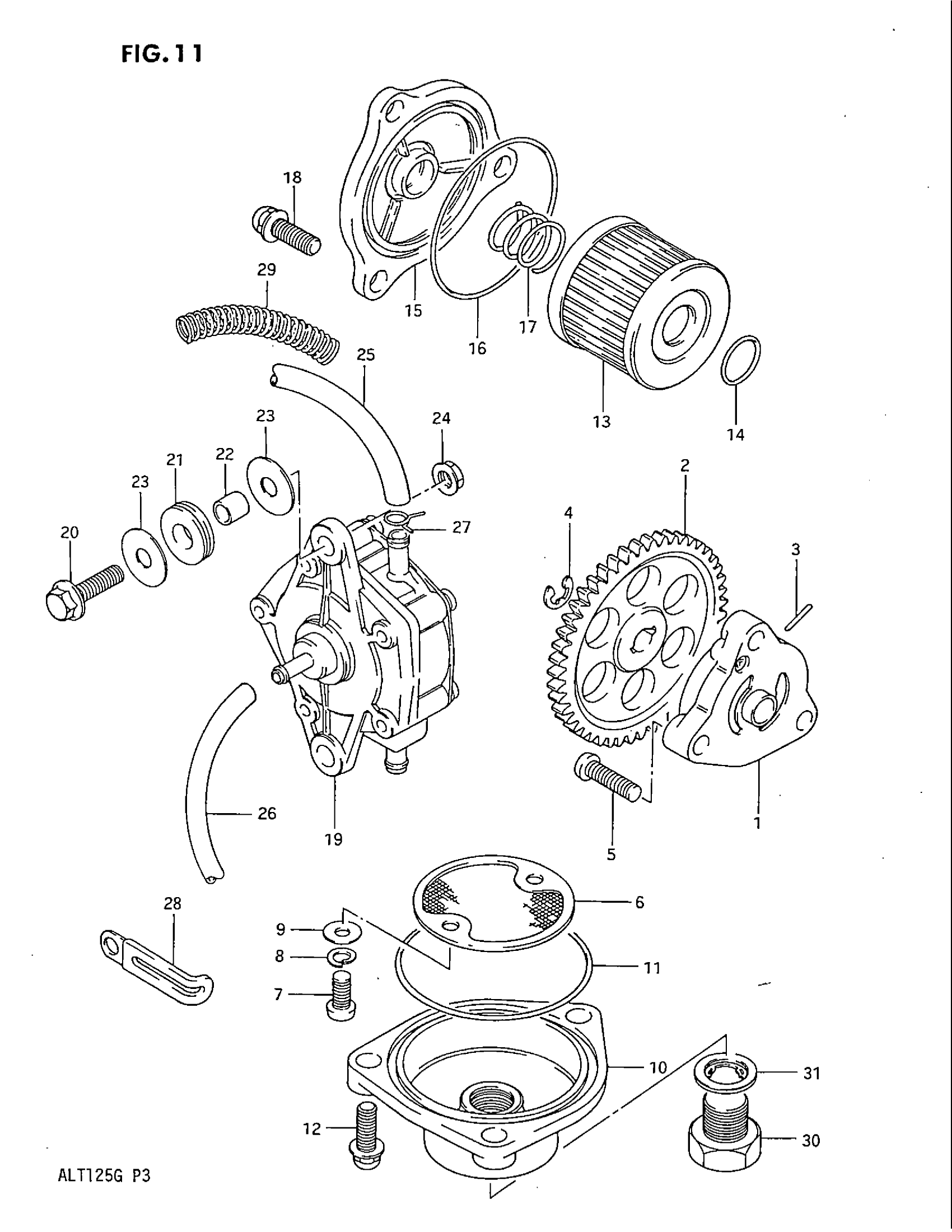

1986 Suzuki ALT125 Oil Pump - Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 16400-18900.

16400-18901

1
Out of stock

2

GEAR, DRIVEN (NT:30)

16331-18900

1
Out of stock

3

PIN

09261-02008

1
Out of stock

4

CIRCLIP This part replaces 08332-11068.

08332-1106A

1
Out of stock

5

SCREW This part replaces 02112-06208.

02112-06207

3
Out of stock

6

STRAINER, ENGINE OIL

16520-05202

1
Out of stock

7

SCREW This part replaces 02112-05126.

02112-0512A

2
Out of stock

8

LOCK WASHER This part replaces 08321-21056.

08321-0105A

2
Out of stock

9

WASHER, FRONT This part replaces 08322-21056.

08322-0105A

2
Out of stock

10

CAP, OIL STRAINER This part replaces 16523-24400.

16523-18A00

1
Out of stock

11

.O RING (D:2.4,ID:60.5)

09280-60005

1
Out of stock

12

BOLT This part replaces 01547-06208.

01547-06207

3
Out of stock

13

FILTER, ENGINE OIL

16510-05240

1
Out of stock

14

O RING

09280-13004

1
Out of stock

15

CAP

16512-18900

1
Out of stock

16

O RING

09280-54001

1
Out of stock

17

SPRING

09440-18002

1
Out of stock

18

BOLT This part replaces 01547-06165.

01547-0616B

3
Out of stock

19

PUMP ASSY,FUEL This part replaces 15100-18900.

15100-19B11

1
Out of stock

20

BOLT This part replaces 01517-06256.

01550-0625A

2
Out of stock

21

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

2
Out of stock

22

SPACER

09180-06038

2
Out of stock

23

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

4
Out of stock

24

NUT This part replaces 09159-06017.

08319-31067

2
Out of stock

25

HOSE(6X10X600) This part replaces 09343-06024.

09352-60104-600

1
Out of stock

26

HOSE This part replaces 09343-05165.

09352-50005-00B

1
Out of stock

27

CLIP

09401-10401

2
Out of stock

28

CLAMP(L:80) This part replaces 09404-06418.

09404-06036

1
Out of stock

29

SPRING This part replaces 09440-13017.

09440-13043

1
Out of stock

30

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

1
Out of stock

31

GASKET

09168-14004

1
Out of stock
