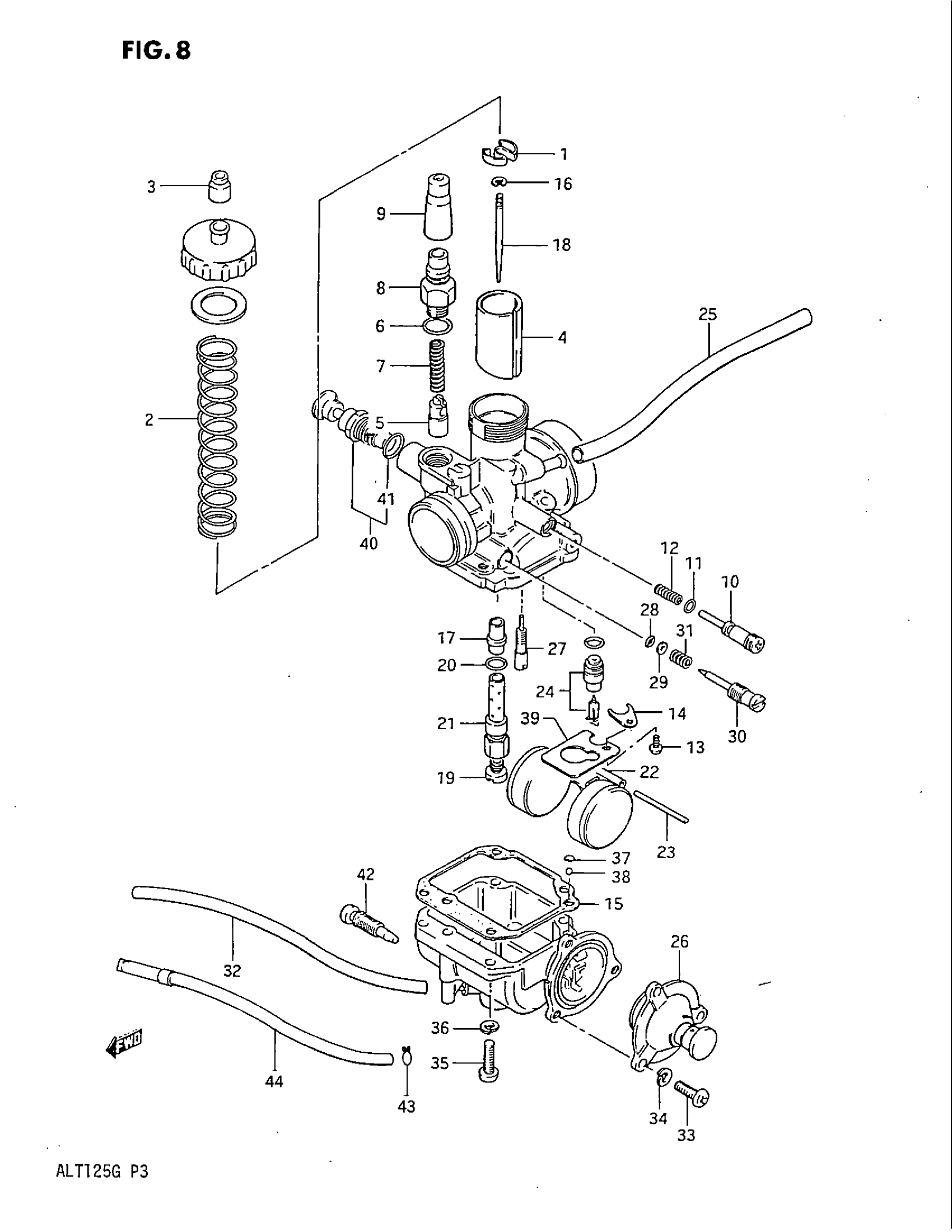

Suzuki ALT125 (1986) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY | Includes Item(s) 1 - 44

13200-18912

Unavailable

1

SPRING, SEAT

13581-36212

$8.80

2

SPRING This part replaces 13573-18900.

13573-18901

$10.55

3

.CAP This part replaces 13681-04010.

13681-04011

$4.51

4

VALVE, THROTTLE

13551-18910

Unavailable

5

PLUNGER

13411-18910

$18.89

6

O RING

13278-02330

$2.80

7

SPRING

13417-01010

$4.36

8

CAP

13681-33010

$8.54

9

CAP, PLUNGER

13418-02330

$12.85

10

SCREW This part replaces 13267-18910.

13267-24500

$11.92

11

O RING

13295-33010

$4.09

12

SPRING This part replaces 13268-95110.

13268-35010

$4.09

13

SCREW This part replaces 02112-03066.

02112-0306B

$1.61

14

PLATE

13373-46710

$6.77

15

GASKET

13251-18900

Unavailable

16

CLIP, NEEDLE This part replaces 13415-47070.

13394-10010

$6.15

17

JET, NEEDLE (0-2)

09494-00436

$33.02

18

NEEDLE, JET (4JR45-4) This part replaces 13383-18910.

13383-18A01

Unavailable

19

JET, MAIN (100)

09491-20017

$8.87

20

.O RING This part replaces 13246-43010.

13246-43011

$3.97

21

PIPE, BLEEDER

13385-18911

Unavailable

22

FLOAT This part replaces 13252-18900.

13250-05230

$24.63

23

.PIN, FLOAT

13254-01010

$3.41

24

VALVE ASSY, NEEDLE This part replaces 13370-18900.

13370-02C00

$83.30

25

HOSE,5X10X600 This part replaces 13683-11420.

44421-13ER0

$9.08

26

PRIMING SET

13234-18910

$60.84

27

JET, PILOT (20)

09492-20009

$16.13

28

O-RING This part replaces 13278-44080.

13295-29901

$3.97

29

WASHER This part replaces 13277-44080.

13291-29900

$1.87

30

SCREW, PILOT (2 7/8) This part replaces 13269-44200.

13279-47070

$12.24

31

.SPRING (NT:45)

13268-47070

$3.97

32

.HOSE (3X7X600) This part replaces 13684-18900.

09355-30001-600

$7.83

33

SCREW This part replaces 02112-04106.

02112-0410A

$1.30

34

LOCK WASHER This part replaces 08321-21046.

08321-0104A

$1.86

35

SCREW This part replaces 02112-04168.

02112-0416A

$1.24

36

LOCK WASHER This part replaces 08321-21046.

08321-0104A

$1.86

37

CLIP

13232-18900

Unavailable

38

BALL,VALVE This part replaces 13596-18900.

13322-84000

Unavailable

39

PLATE

13259-18900

$8.52

40

PLUNGER ASSY, STARTER

13439-18911

$58.62

41

ORING

13278-02330

$2.80

42

SCREW This part replaces 13247-18910.

13247-24500

Unavailable

43

CLIP

13671-05A40

$3.50

44

HOSE (4.5X8X480) OF

13683-18A00
