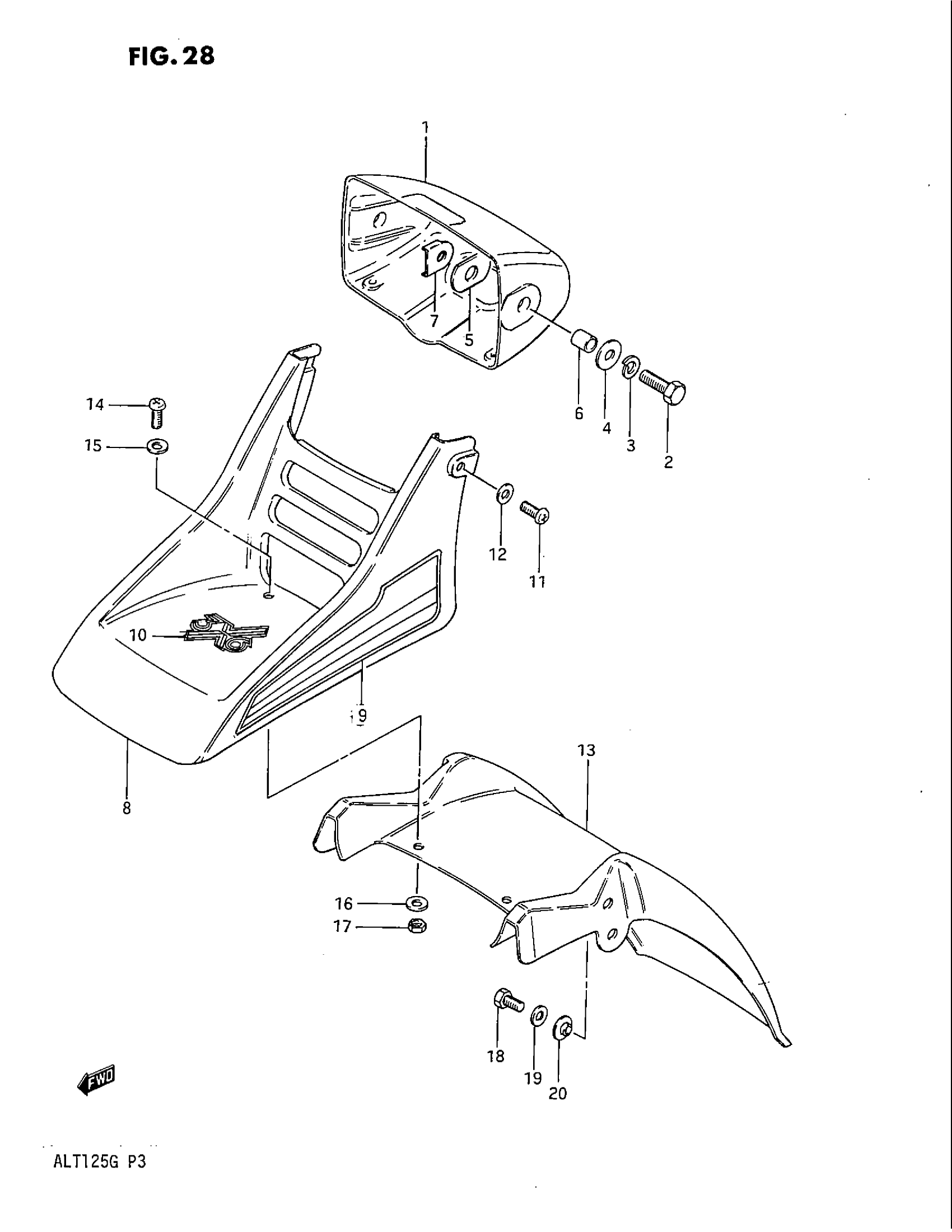

Suzuki ALT125 (1986) HEADLAMP HOUSING - FRONT FENDER (MODEL F) Diagram

#

Description
Price

1

HOUSING, HEADLAMP (BLACK)

51811-17202-291

Unavailable

2

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.53

3

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

4

WASHER This part replaces 08322-11088.

08322-01087

$2.13

5

CUSHION This part replaces 09329-12002.

09329-12005

$2.32

6

SPACER This part replaces 09180-08030.

09180-08187

$2.65

7

PLATE, HEADLAMP HOUSING

51860-46400

Unavailable

8

FENDER, FRONT (ORANGE)

53111-24300-00N

Unavailable

9

TAPE SET

68150-24320-96W

Unavailable

10

EMBLEM, FRONT FENDER NAME

68233-24310-96Z

Unavailable

11

SCREW

02142-06108

$2.45

12

WASHER This part replaces 08322-21067.

08322-01067

$2.13

13

EXTENSION

53118-24300

Unavailable

14

SCREW, FENDER & EXTENSION

02142-06167

$1.49

15

WASHER This part replaces 08322-21067.

08322-01067

$2.13

16

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

17

NUT This part replaces 08310-22066.

08310-0006B

$2.34

18

BOLT This part replaces 01107-06126.

01500-0612A

$1.78

19

WASHER (6.5X16X1.2)

09160-06019

$1.49

20

WASHER

09169-06026

$2.20
