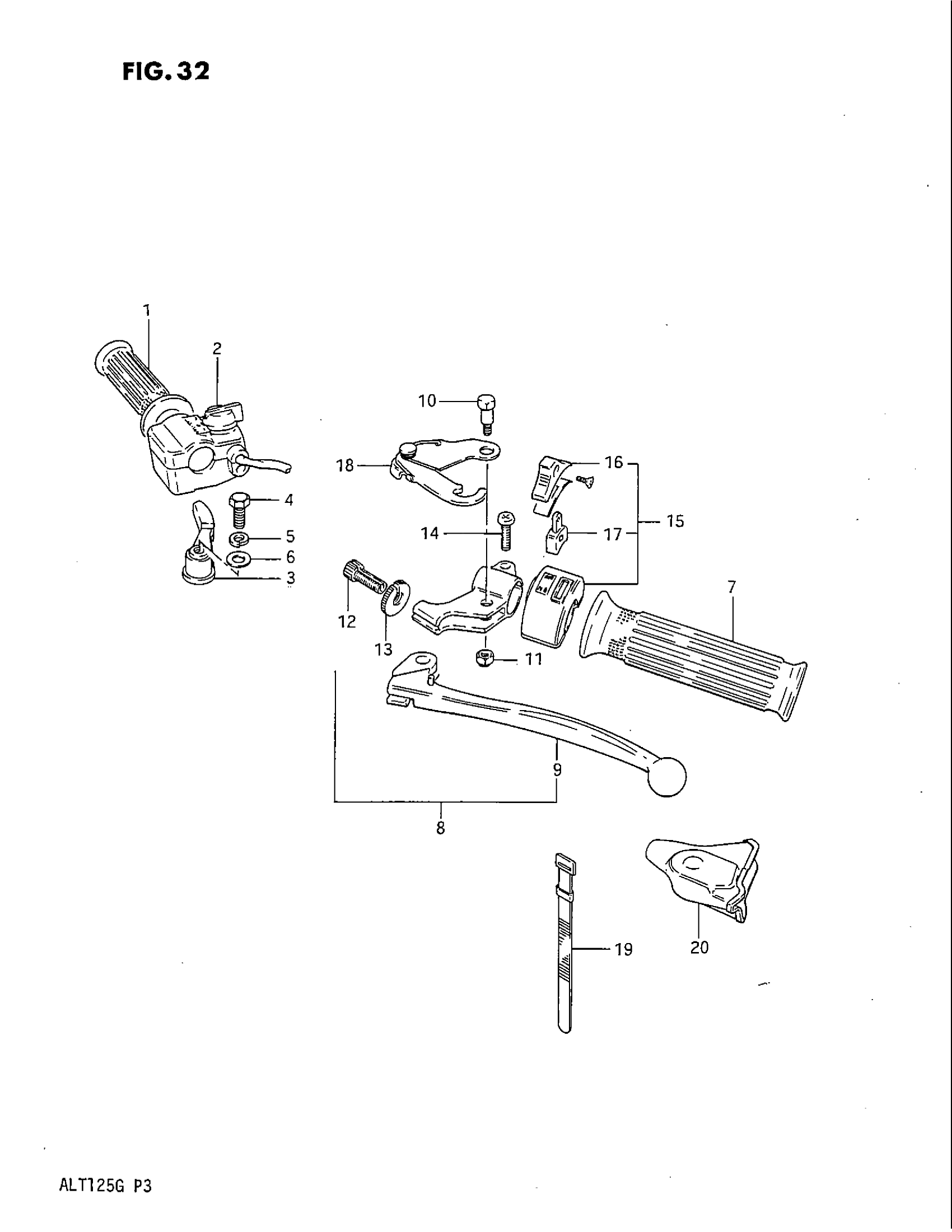

Suzuki ALT125 (1986) HANDLE SWITCH Diagram

#

Description
Price

1

GRIP

57211-24201

Unavailable

2

THROTTLE CASE ASSY | Includes Item(s) 3 - 6

57100-24312

Unavailable

3

LEVER

57151-24301

$12.95

4

BOLT This part replaces 01107-06166.

01500-0616A

$1.78

5

LOCK WASHER This part replaces 08321-31066.

08321-0106A

$1.84

6

WASHER

09160-06019

$1.49

7

GRIP

57211-24201

Unavailable

8

LEVER ASSY, REAR BRAKE | Includes Item(s) 9 - 14

57500-24200

Unavailable

9

LEVER,BRAKE This part replaces 57620-24200.

57620-29500

Unavailable

10

BOLT This part replaces 57431-24200.

57431-29502

$7.67

11

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

12

ADJUSTER, CABLE

57441-11010

$5.62

13

NUT, CABLE ADJUSTER

57442-11010

$2.79

14

SCREW This part replaces 02112-06205.

02112-0620A

$1.49

15

SWITCH ASSY, LIGHTING | Includes Item(s) 16 - 17

37250-38200

Unavailable

16

KNOB

57617-28602

Unavailable

17

BLOCK, SLIDING

57680-28602

Unavailable

18

STOPPER, BRAKE LEVER

57790-18900

Unavailable

19

BAND

09407-12402

$3.04

20

COVER, BRAKE DUST This part replaces 57541-29500.

57541-29501

$10.23
