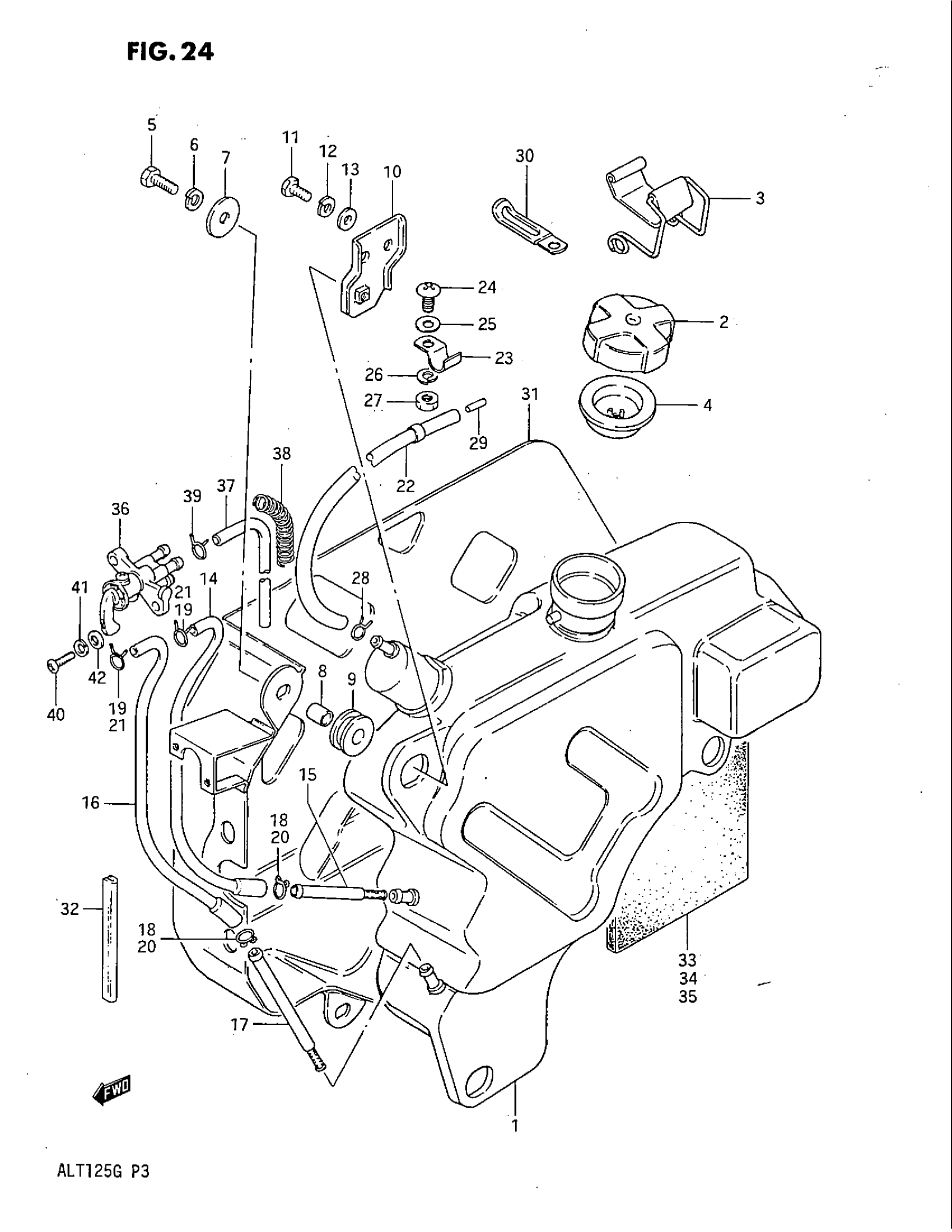

Suzuki ALT125 (1986) FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

44111-24400

Unavailable

2

CAP, FUEL TANK

44211-24400

Unavailable

3

SPRING This part replaces 44240-24401.

44240-18B00

Unavailable

4

GASKET This part replaces 44248-40400.

44248-05211

$3.76

5

BOLT This part replaces 01107-06258.

01500-06257

$1.97

6

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

7

WASHER This part replaces 08322-21067.

08322-01067

$2.13

8

SPACER (6.2X12X14) This part replaces 09180-06088.

09180-06174

$5.57

9

CUSHION

09320-12016

$2.11

10

PLATE, FUEL TANK, FRONT

44521-24400

Unavailable

11

BOLT This part replaces 01107-06128.

01500-06127

$1.97

12

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

13

WASHER This part replaces 08322-21067.

08322-01067

$2.13

14

HOSE(5X8.2X600) | MODEL F This part replaces 09343-05096.

09359-50824-600

$7.98

14

HOSE, CANISTER & PURGE | MODEL G This part replaces 09343-05367.

09359-54111-600

$25.80

15

FILTER, FUEL, "ON"

44322-27001

$5.05

16

HOSE(5X8.2X600) | MODEL F This part replaces 09343-05096.

09359-50824-600

$7.98

16

HOSE, CANISTER & PURGE | MODEL G This part replaces 09343-05368.

09359-54111-600

$25.80

17

FILTER, FUEL, "RES"

44323-24400

Unavailable

18

CLIP, UPPER | MODEL F

09401-10402

$2.42

19

CLIP, LOWER | MODEL F

09401-08402

$1.49

20

CLIP, UPPER | MODEL G

09401-12404

$2.34

21

CLIP (ID:10.5,H:8) | MODEL G

09401-10409

$2.26

22

HOSE, BREATHER

09343-05270

Unavailable

23

CLAMP

09403-09306

Unavailable

24

SCREW

02142-06167

$1.49

25

WASHER This part replaces 08322-21067.

08322-01067

$2.13

26

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

27

.NUT This part replaces 08310-11068.

08310-00067

$2.13

28

CLIP

09401-08402

$1.49

29

PIN | MODEL F

09205-06007

$2.24

29

PIN | MODEL G This part replaces 09205-06012.

09205-06007

$2.24

28

CLAMP This part replaces 09404-06413.

09404-06039

$1.74

31

GUARD, FUEL TANK

44570-24401

Unavailable

32

MOLD, FUEL TANK GUARD

44579-24400

Unavailable

33

CUSHION, NO.1

44575-24300

Unavailable

34

CUSHION, NO.2

44576-24300

Unavailable

35

CUSHION, NO.3

44577-24300

Unavailable

36

COCK ASSY,FUEL This part replaces 44300-24471.

44300-17271

Unavailable

37

HOSE This part replaces 09343-05271.

09352-50005-00B

$13.93

38

SPRING

09440-10012

Unavailable

39

CLIP

09401-08402

$1.49

40

SCREW This part replaces 02112-05208.

02112-05207

$1.97

41

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

42

WASHER This part replaces 08322-21058.

08322-01057

$2.13
