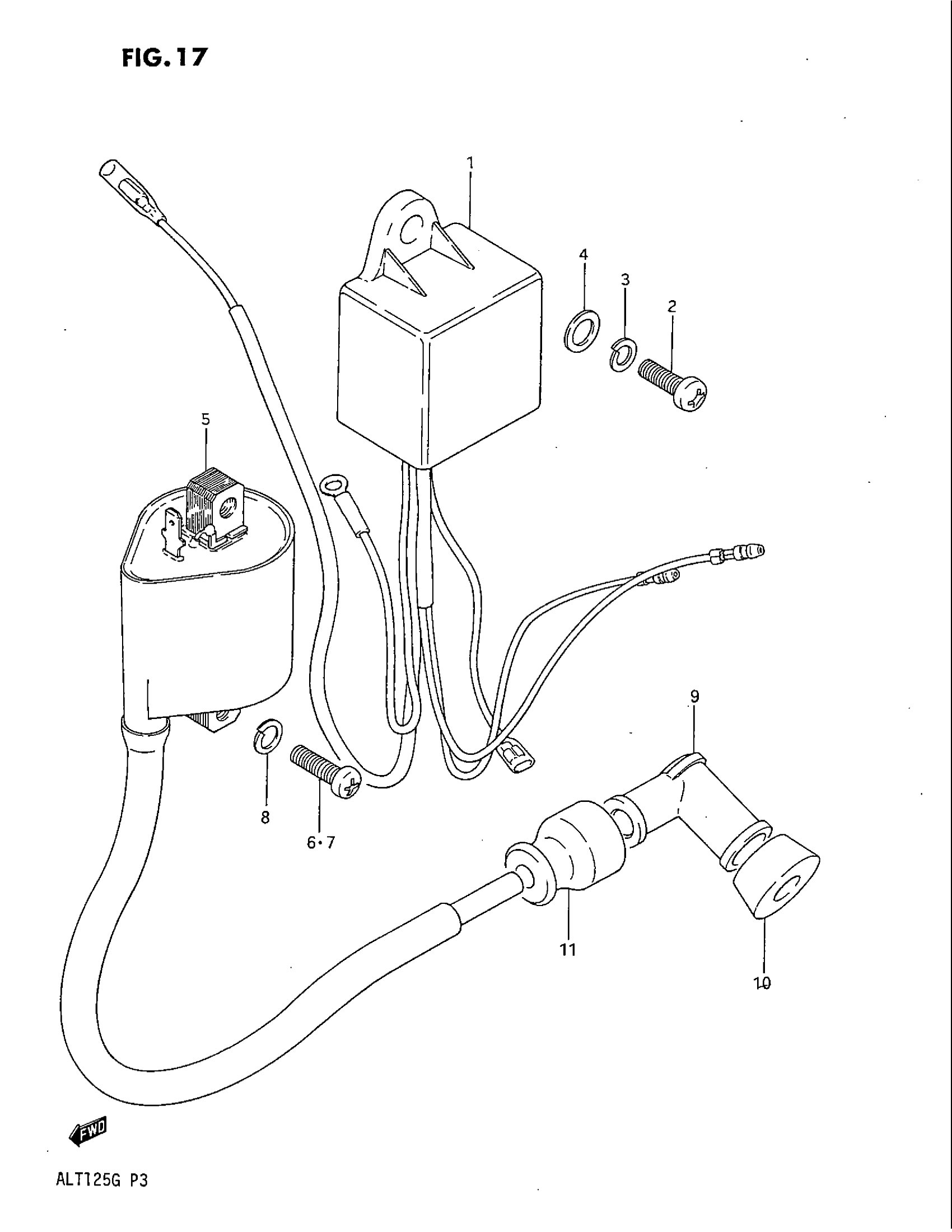

Suzuki ALT125 (1986) ELECTRICAL Diagram

#

Description
Price

1

C.D.I UNIT

32900-24401

Unavailable

2

SCREW This part replaces 02112-06168.

02112-06167

$1.49

3

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

4

WASHER This part replaces 08322-21067.

08322-01067

$2.13

5

COIL ASSY,IGNIT This part replaces 33410-24310.

33410-09412

Unavailable

6

SCREW This part replaces 02112-06208.

02112-06207

$1.78

7

SCREW This part replaces 02112-06168.

02112-06167

$1.49

8

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

9

CAP, SPARK PLUG This part replaces 33510-22010.

33510-97313

$14.73

10

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.83

11

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34
