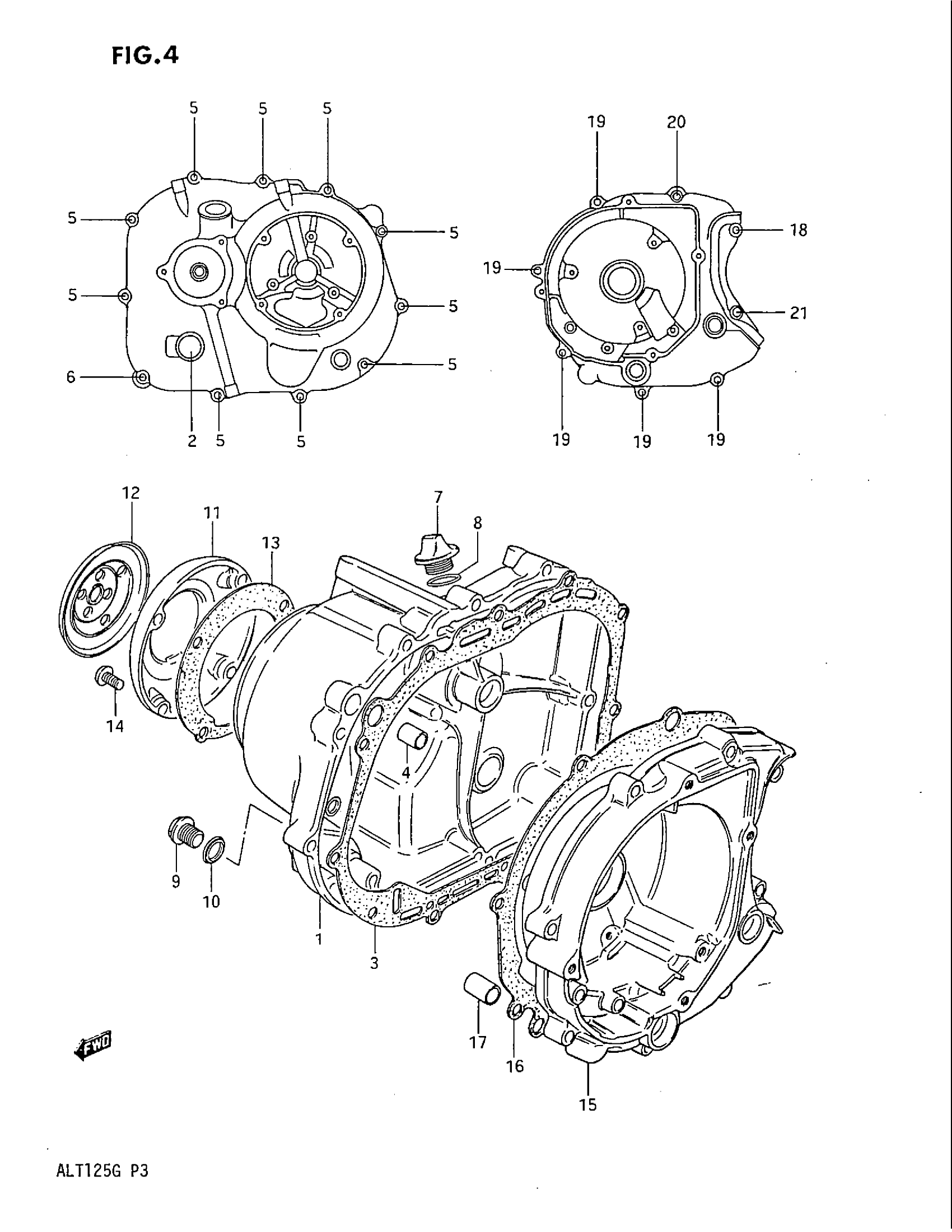

Suzuki ALT125 (1986) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-18904

Unavailable

2

.LENS, OIL LEVEL CHECK

11971-45010

$16.76

3

GASKET,CL COVER This part replaces 11482-18900.

11482-18901

Unavailable

4

PIN This part replaces 09206-13001.

04211-13189

$2.19

5

SCREW, SEAT SUPPORT BRK This part replaces 02112-06305.

02112-0630A

$1.78

6

SCREW This part replaces 02112-06455.

02112-0645B

$2.19

7

.PLUG This part replaces 09259-20008.

09259-20008-XC0

$7.50

8

O RING

09280-17003

$1.65

9

PLUG, OIL CHECK (BLACK)

09247-14015

$4.45

10

GASKET

09168-14004

$1.83

11

CAP, CLUTCH RELEASE ADJUST

11387-18902

Unavailable

12

CUSHION

11393-18902

Unavailable

13

GASKET

11495-18900

Unavailable

14

SCREW This part replaces 02112-06205.

02112-0620A

$1.49

15

COVER, MAGNETO This part replaces 11351-18901.

11351-18910

$261.53

16

GASKET,MAGNETO This part replaces 11483-18900.

11483-18901

Unavailable

17

PIN This part replaces 09206-13001.

04211-13189

$2.19

18

BOLT This part replaces 01517-06308.

01550-06307

$2.69

19

SCREW This part replaces 02112-06255.

02112-0625A

$1.80

20

SCREW This part replaces 02112-06455.

02112-0645B

$2.19

21

SCREW This part replaces 02122-06308.

02122-0630B

$2.06
