Partiron

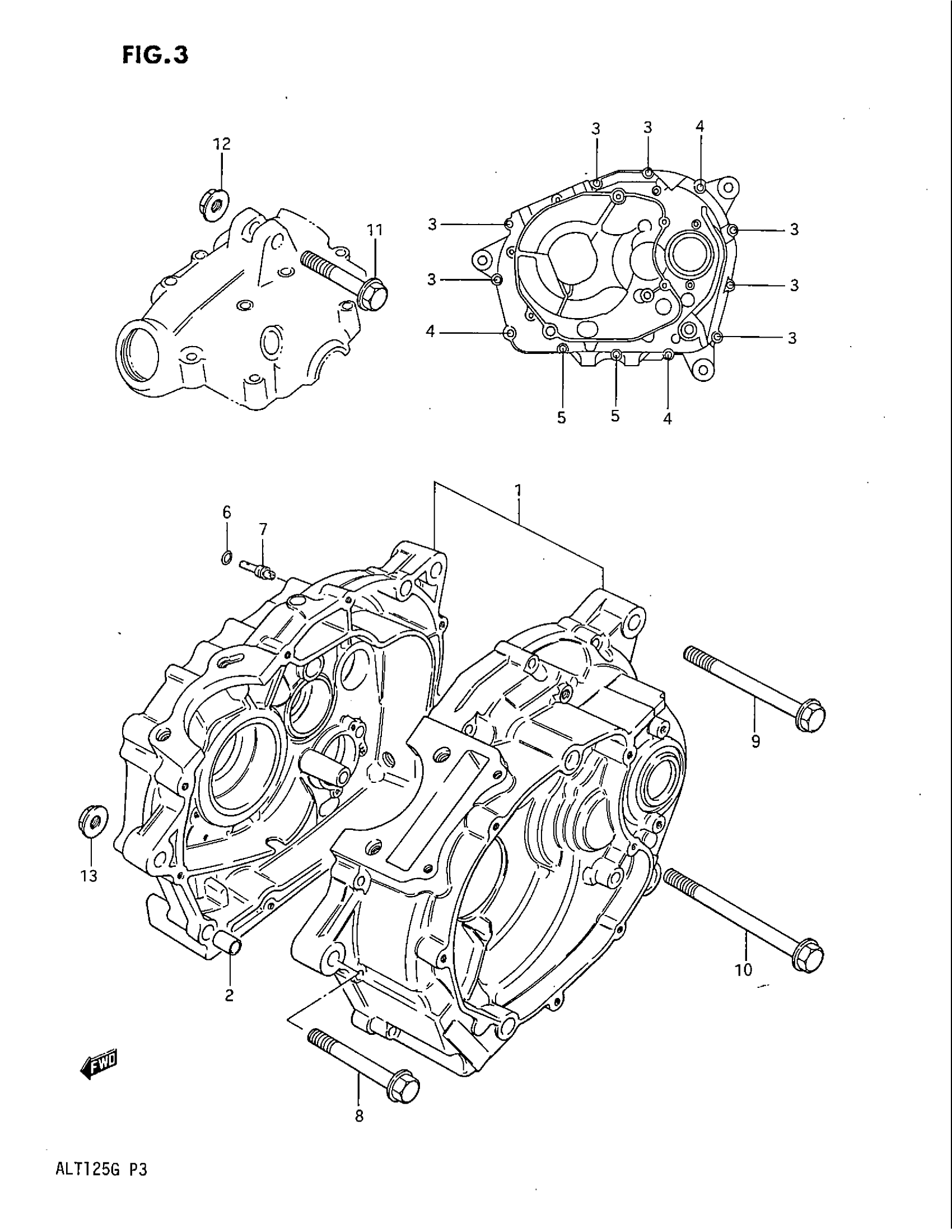

Suzuki ALT125 (1986) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | MODEL F

11300-24860

Unavailable

1

CRANKCASE SET | MODEL G; Includes Item(s) 2 - 7

11300-24880

Unavailable

2

PIN This part replaces 09206-13001.

04211-13189

$2.19

3

BOLT This part replaces 01547-06408.

01547-06407

$2.32

4

BOLT This part replaces 01547-06558.

01547-06557

$2.32

5

BOLT This part replaces 01547-06858.

01547-06857

$3.30

6

O RING, OIL GALLERY JET

09280-04004

$1.91

7

JET, OIL GALLERY DRIVE

09493-24009

Unavailable

8

BOLT (10X70)

09103-10051

Unavailable

9

BOLT (10X90)

09103-10061

$6.43

10

BOLT (10X120)

09103-10052

Unavailable

11

BOLT This part replaces 01517-08504.

01550-0850B

$4.17

12

NUT This part replaces 08319-31085.

08319-3108A

$2.32

13

NUT

09159-10047

$9.41
