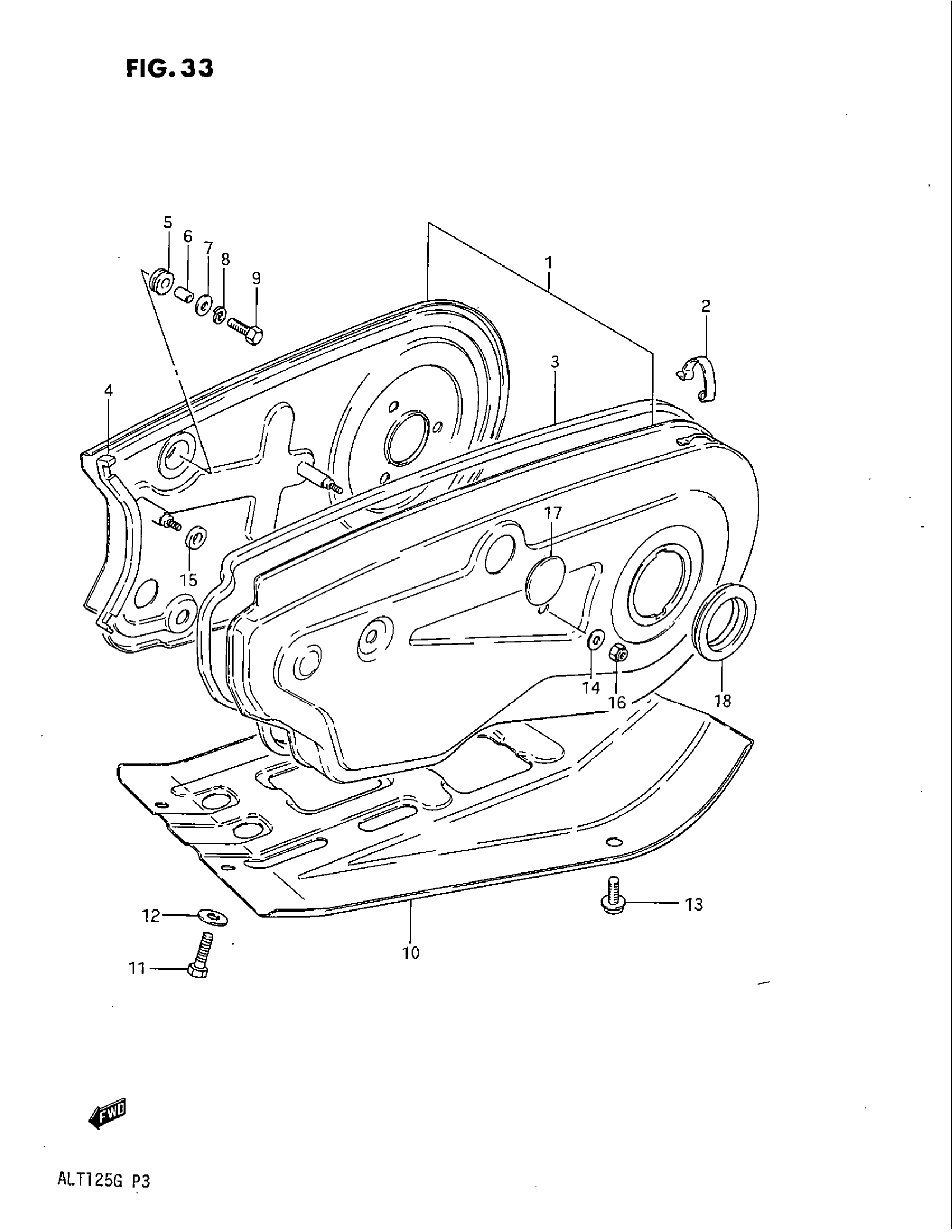

Suzuki ALT125 (1986) CHAIN CASE Diagram

#

Description
Price

1

CASE, CHAIN

61300-24811-019

Unavailable

2

CLAMP

61328-24200

Unavailable

3

SEAL, OUTER

61336-24300

Unavailable

4

SEAL, INNER FRONT

61337-24300

Unavailable

5

CUSHION, INNER

09320-08023

Unavailable

6

SPACER

09180-06135

Unavailable

7

WASHER

09160-06041

Unavailable

8

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

9

BOLT This part replaces 01107-06208.

01500-06207

$2.28

10

GUARD, UNDER

61391-24305

Unavailable

11

PLUG, DRAIN This part replaces 01107-08166.

01500-0816B

$2.50

12

WASHER, MUFFLER SUPPORT This part replaces 09160-08001.

09160-08503

$2.50

13

BOLT, CLAMP This part replaces 01517-06126.

01550-0612A

$1.97

14

WASHER, FITTING

09160-06041

Unavailable

15

SEAL

09320-09004

$3.03

16

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

17

CAP(OD:40) This part replaces 09250-30001.

09250-30024

$1.78

18

DUST SEAL

64729-24300

Unavailable
