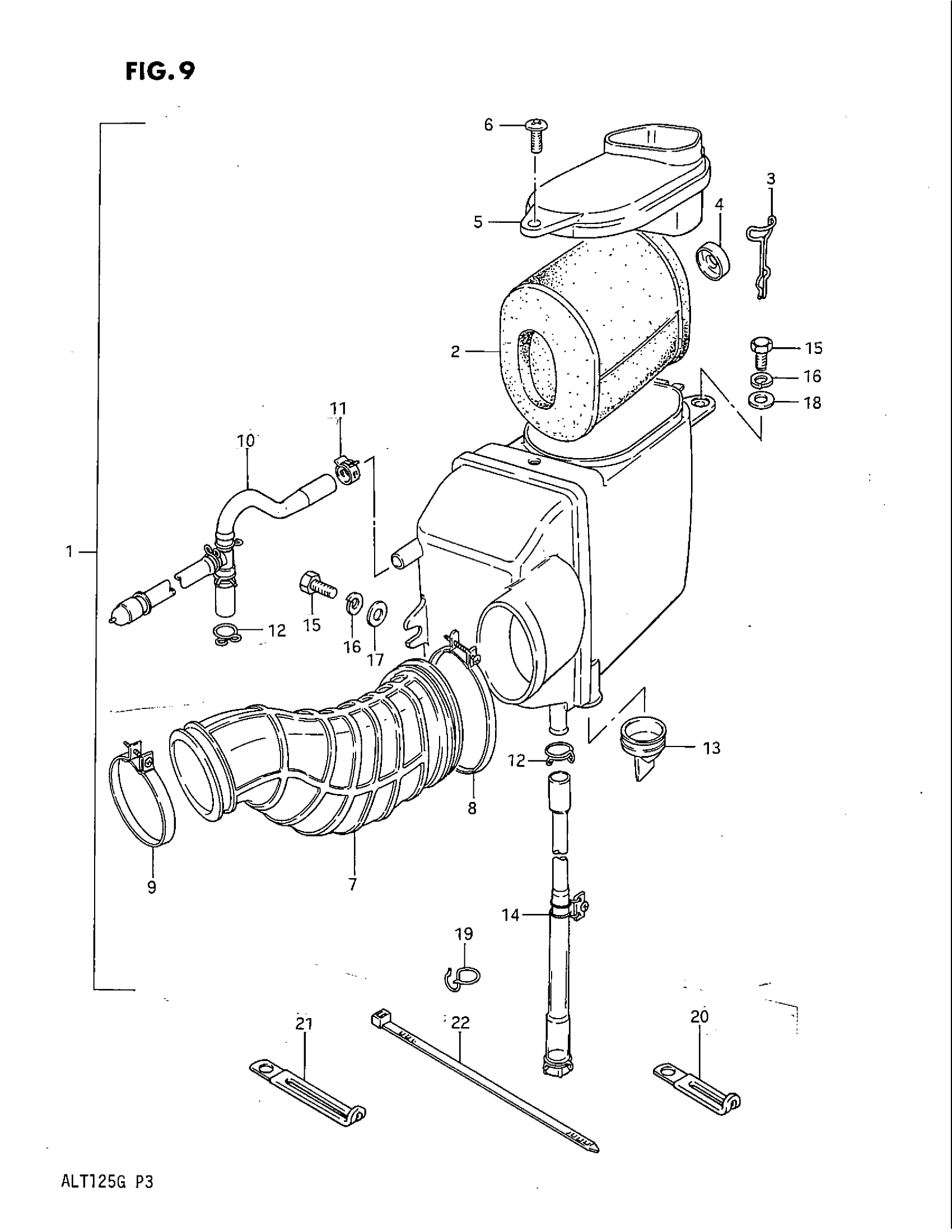

Suzuki ALT125 (1986) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 14 This part replaces 13700-18913.

13700-18923

$60.46

2

FILTER This part replaces 13781-18912.

13780-18920

Unavailable

3

SNAP PIN

13823-20400

$3.00

4

WASHER

13796-20400

$2.99

5

CAP This part replaces 13740-18911.

13740-18920

Unavailable

6

SCREW

02142-06167

$1.49

7

HOSE, OUTLET

13881-18900

Unavailable

8

CLAMP

13826-18912

Unavailable

9

CLAMP This part replaces 09402-48207.

09402-48208

$4.64

10

NO DESCRIPTION AVAILABLE This part replaces 13850-18910.

13850-18911

Unavailable

11

CLAMP This part replaces 13825-43400.

09401-13417

$2.26

12

CLIP

09401-14301

$2.35

13

HOSE, DRAIN (1)

13873-18900

Unavailable

14

NO DESCRIPTION AVAILABLE This part replaces 13870-00220.

13870-18910

Unavailable

15

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

WASHER This part replaces 09160-06007.

09160-06084

$1.78

18

WASHER This part replaces 08322-21068.

08322-01067

$2.13

19

CLAMP, DRAIN TUBE

13821-18902

Unavailable

20

CLAMP This part replaces 09404-06402.

09404-06039

$1.74

21

CLAMP(L:80) This part replaces 09404-06404.

09404-06036

$1.74

22

CLAMP, BREATHER TUBE

09407-25402

$4.64
