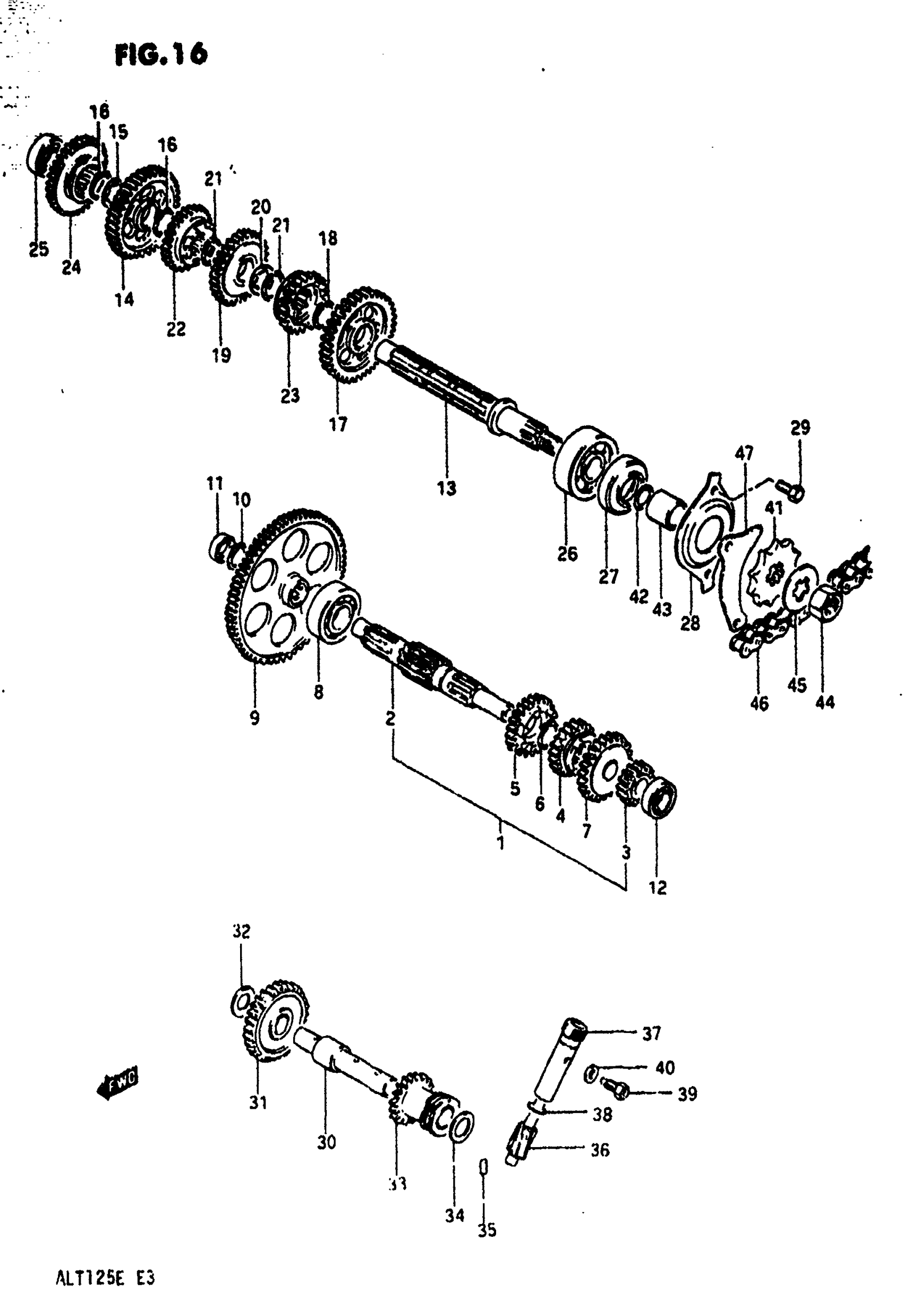

Suzuki ALT125 (1984) TRANSMISSION Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | TO 24120-18902 WITH 24341-18902 24351-18903; Includes Item(s) 2 - 7 This part replaces 24120-18901.

24120-18902

Unavailable

2

COUNTER SHAFT (NT:11)

24100-18830

Unavailable

3

GEAR, 2ND DRIVE (NT:15)

24221-18900

Unavailable

4

GEAR, 3RD DRIVE (NT:20) This part replaces 24231-18902.

24231-18905

Unavailable

5

GEAR, 4TH DRIVE (NT:23) | TO 24240-18901 WITH 24341-18902 This part replaces 24240-18900.

24240-18901

Unavailable

6

CIRCLIP

09380-20007

$2.43

7

NO DESCRIPTION AVAILABLE | TO 24250-18901 WITH 24351-18903 This part replaces 24250-18900.

24250-18901

Unavailable

8

BEARING, DRIVE SHAFT LH This part replaces 08113-62040.

09262-20069

$23.28

9

GEAR, PRIMARY DRIVEN (NT:71) This part replaces 21211-24300.

21211-24301

Unavailable

10

CIRCLIP, KICK START DRIVE GEAR This part replaces 08331-11209.

08331-3120A

$2.03

11

OIL SEAL

09282-10005

Unavailable

12

BEARING, LH

08113-60020

$16.01

13

SHAFT DRIVE This part replaces 24131-18901.

24131-18902

Unavailable

14

GEAR 1ST DRIVEN This part replaces 24310-18900.

24310-18901

Unavailable

15

LOCK WASHER

09167-20011

$2.31

16

CIRCLIP

09380-20007

$2.43

17

NO DESCRIPTION AVAILABLE This part replaces 24320-18900.

24320-18901

Unavailable

18

CIRCLIP

09380-20007

$2.43

19

NO DESCRIPTION AVAILABLE This part replaces 24330-18900.

24330-18902

Unavailable

20

LOCK WASHER

09167-20011

$2.31

21

CIRCLIP

09380-20007

$2.43

22

GEAR, 4TH DRIVEN (NT:27) | ~E.NO.146026 This part replaces 24341-18900.

24341-18902

Unavailable

22

GEAR, 4TH DRIVEN (NT:27) | TO 24341-18902 WITH 24240-18901 This part replaces 24341-18901.

24341-18902

Unavailable

23

GEAR, 5TH DRIVEN (NT:21) | TO 24351-18903 WITH 24250-18901 This part replaces 24351-18901.

24351-18904

Unavailable

24

GEAR, REVERSE DRIVEN | SEE NOTE

24571-18901

Unavailable

25

BEARING, RH This part replaces 08123-62020.

08123-62027

$18.57

26

BEARING, DRIVE SHAFT LH This part replaces 08113-62040.

09262-20069

$23.28

27

OIL SEAL

09283-27010

$10.30

28

RETAINER

24751-18900

Unavailable

29

BOLT This part replaces 01107-06128.

01500-06127

$1.97

30

SHAFT, REVERSE

24550-18900

Unavailable

31

GEAR, REVERSE IDLER | SEE NOTE

24560-18901

Unavailable

32

SHIM This part replaces 08221-15245.

09181-15158

$3.03

33

GEAR, ODOMETER DRIVE This part replaces 26460-24300.

26460-24301

Unavailable

34

SHIM, CAM CHAIN IDLER,T:1.0 This part replaces 08211-15241.

09181-15166

$2.85

35

PIN This part replaces 06211-04103.

04221-04109

Unavailable

36

GEAR, ODO METER DRIVAN

26471-24200

Unavailable

37

SLEEVE

26481-24200

Unavailable

38

O RING.

09280-10001

$2.02

39

BOLT (6X10) This part replaces 09135-06002.

09135-06501

$3.04

40

WASHER

09168-06004

$1.49

41

SPROCKET, ENGINE (NT:13)

27511-41701

Unavailable

42

O RING

09280-20001

$1.65

43

SPACER

09180-20081

Unavailable

44

NUT

09140-16017

$6.97

45

LOCK WASHER

09167-20012

$2.44

46

CHAIN, DRIVE (428VX90LE)

27600-18910

Unavailable

47

PLATE

27641-18900

Unavailable
