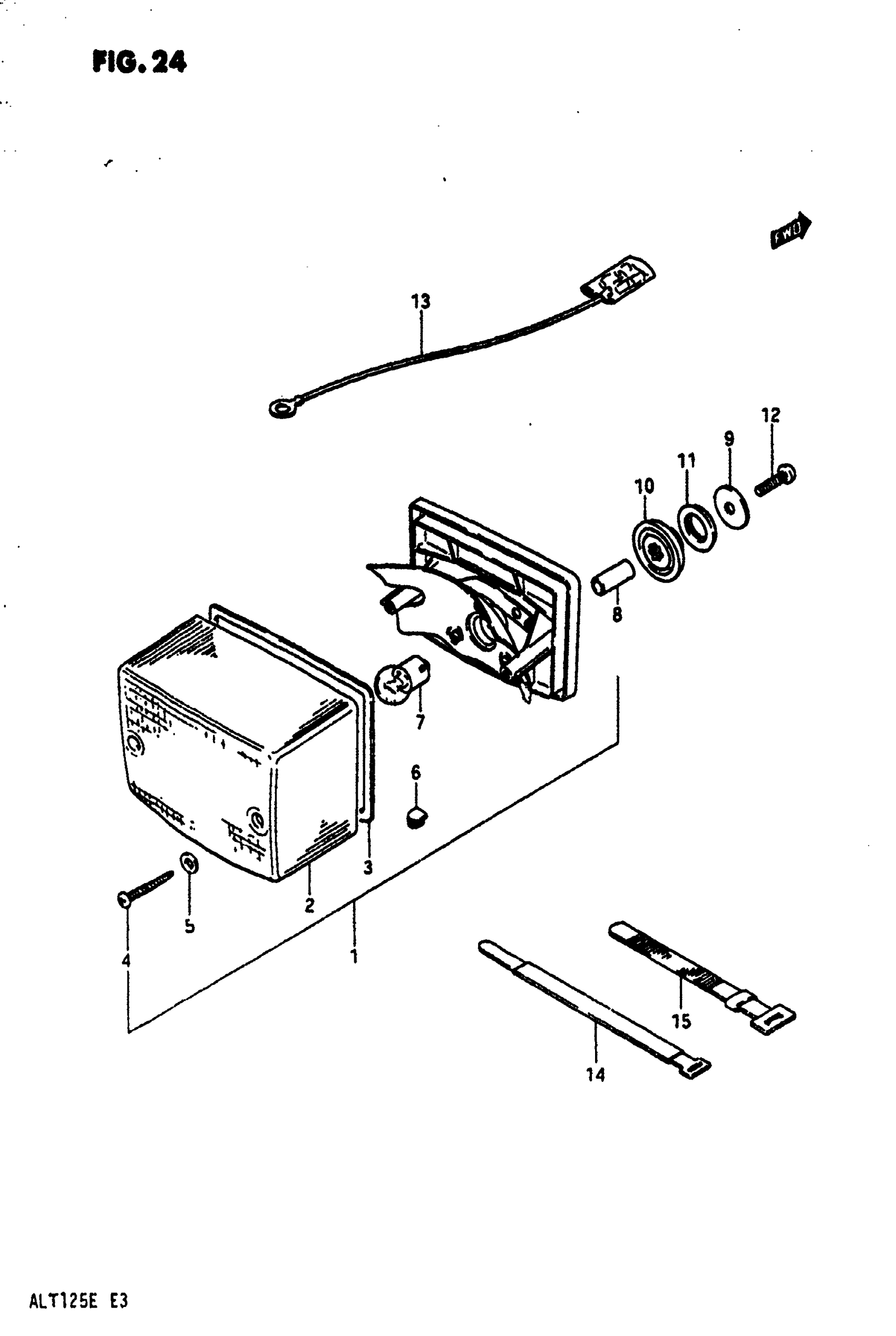

Suzuki ALT125 (1984) TAIL LAMP Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL D This part replaces 35710-24230.

35710-24432-999

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL E; Includes Item(s) 2 - 8 This part replaces 35710-24330.

35710-24432-999

Unavailable

2

LENS

35712-48524

Unavailable

3

GASKET

35713-48510

$6.17

4

SCREW This part replaces 03211-04308.

03211-04306

$1.78

5

GASKET

35627-43010

$2.28

6

GROMMET

35728-30640

Unavailable

7

BULB (6V,5W)

09471-06049

$2.70

8

SPACER

35766-24230

Unavailable

9

WASHER This part replaces 09160-05005.

09160-05047

$2.38

10

CUSHION

09320-09012

Unavailable

11

CUSHION

09320-14010

Unavailable

12

SCREW This part replaces 02112-05258.

02112-05257

$1.49

13

LEAD WIRE, EARTH

36851-24200

Unavailable

14

CLAMP This part replaces 09407-11301.

09407-18302

$2.28

14

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

14

CLAMP(L:250) This part replaces 09407-25301.

09407-25302

Unavailable

15

CLAMP (L:125) This part replaces 09407-08401.

09407-14403

$2.26
