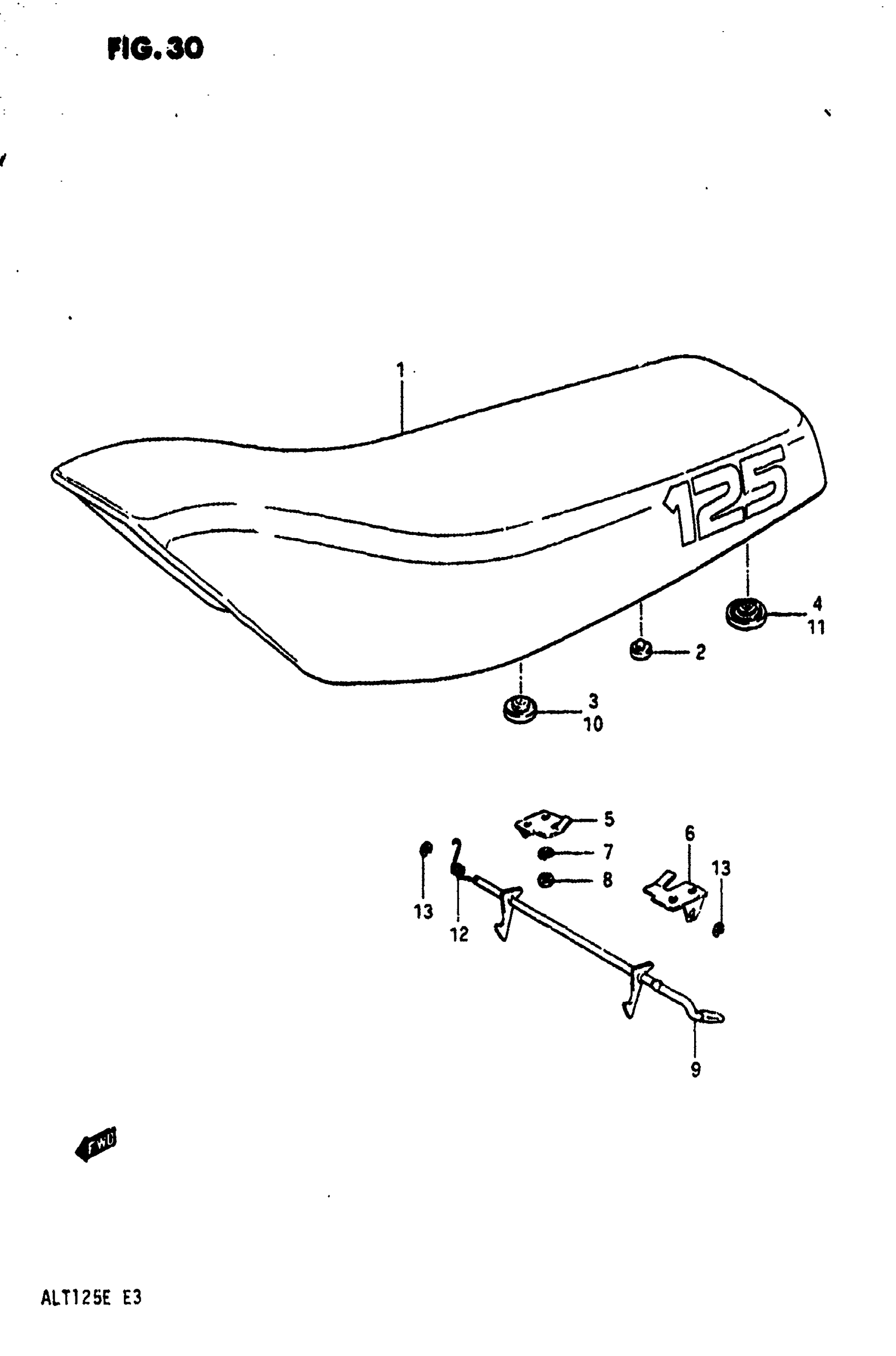

Suzuki ALT125 (1984) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLUE) | MODEL D This part replaces 45100-24301-49R.

45100-24331-4UZ

Unavailable

1

SEAT ASSY (BLUE) | MODEL E; Includes Item(s) 2 - 13 This part replaces 45100-24302-48H.

45100-24331-4UZ

Unavailable

2

CUSHION, CENTER

09321-10002

$2.22

3

CUSHION | MODEL E

09321-10012

$2.92

4

CUSHION, REAR

09321-14005

Unavailable

5

BRACKET, SEAT SUPPORT RH

45221-24301

Unavailable

6

BRACKET, SEAT SUPPORT LH

45222-24301

Unavailable

7

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

8

.NUT This part replaces 08310-11068.

08310-00067

$2.13

9

CLAMP, SEAT

45210-24301

Unavailable

10

CUSHION | MODEL D This part replaces 45149-24301.

45149-24302

Unavailable

10

CUSHION | MODEL E

45149-24302

Unavailable

11

CUSHION | MODEL E This part replaces 45149-24400.

45149-24401

Unavailable

12

SPRING

45135-24301

Unavailable

13

CIRCLIP This part replaces 08332-11068.

08332-1106A

$1.49
